| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | ISO9001, RoHS |
| Model Number: | MF57 |
| Minimum Order Quantity: | 1000 Pieces |
| Price: | Negotiable |
| Packaging Details: | Carton Packing |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Resistance: | 10kΩ | B Value: | 3435K |
|---|---|---|---|
| Tolerance: | ±1% | Product Name: | Glass Coating Ntc Thermistor |
| Encapsulation: | Glass Encapsulation | Operating Temperature Range: | -40℃~300℃ |
| Probe: | 1.3mm Glass Probe | Feature: | High Temperature Resistant |
| Highlight: | 10kohm NTC Thermistor Probe,3435K ntc thermistor probe,1.3mm ntc temperature sensor |
||
10kohm NTC thermistor probe
Brief Introduction:
As one NTC thermistor sensor, glass coating NTC thermistor is made of glass bead, thinner dumet wire. Its feature is high-temperature resistance. Glass coating NTC thermistor be widely applied for automatic electronics, home appliances, industrial devices, etc.
Features:
glass encapsulation
high temperature resistant
Operating temperature range: -40℃~300℃
R25=10KΩ±1%,B25/85=3435±1%
Glass probe 1.3mm
Application:
home appliance
automotive electronic
Industrial device etc
Part Number Code:
Structure and Dimensions:
| NO. | Name | Material Specification | QTY. | Remarks |
| 1 | Chip | NTC Chip | 1 | / |
| 2 | Encapsulation | Epoxy resin | 1 | / |
| 3 | Probe | SUS 304 | 1 | / |
| 4 | Wire | UL4413 26awg 150℃ | 1 | / |
| Symbol | D | d | L1 | L |
| Size(mm) | 1.3 - 2.3 | 0.2 - 0.3 | 2.0 - 4.0 | 8 - 60 |
Electrical Specification:
| Rec. at 25℃(KΩ) | Beta value | (In air) Pmax(mW) |
δ (mW/℃) |
thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 2 | B25/85=3470 | Approx.20 | Approx.0.75 | Max.10 | -40~300 | 50 |
| 2 | B25/85=3977 | |||||
| 5 | B25/85=3950 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 100 | B25/50=3950 | |||||
| 100 | B25/85=4132 | |||||
| 100 | B25/50=4200 |

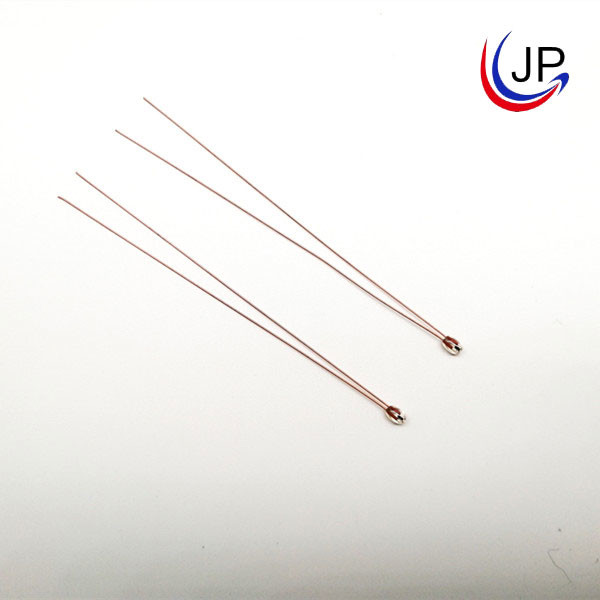

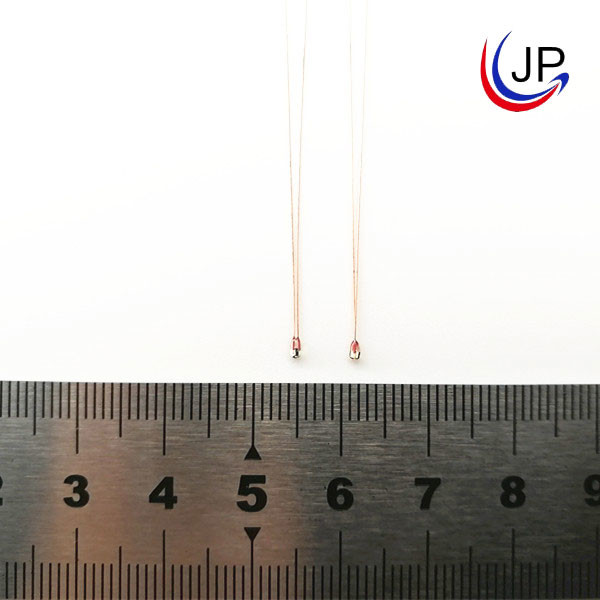

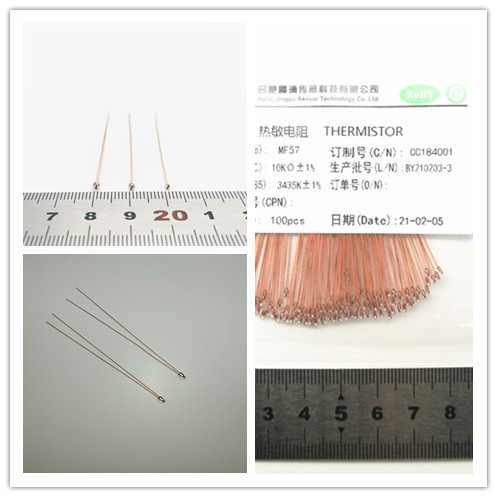

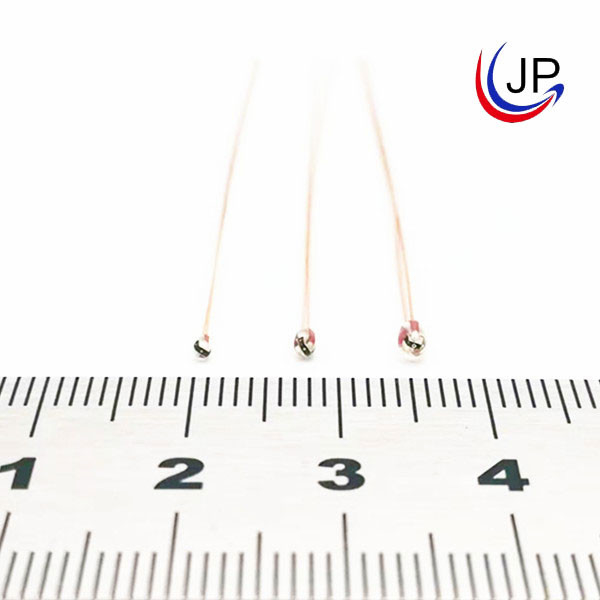

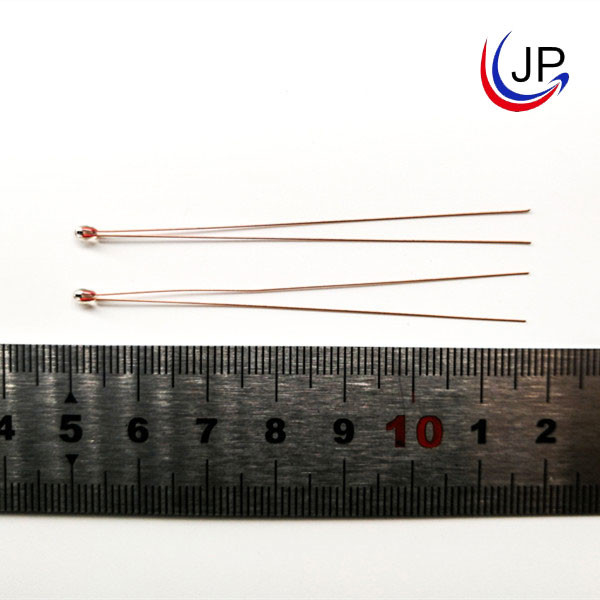

Product Display:
