| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | ISO9001, RoHS |
| Model Number: | MF57 |
| Minimum Order Quantity: | 1000 Pieces |
| Price: | To be Negotiated |
| Packaging Details: | Standard Packing |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Resistance: | R25=100KΩ±1% | B Value: | B25/50=3950±1% |
|---|---|---|---|
| Probe: | 1.3mm Glass Encapsulation | Operating Temperature Range: | -40℃~300℃ |
| Chip: | NTC Chip | Wire: | Dumet Wire |
| Customization: | Supportive | ODM/OEM: | Available |
| Highlight: | R25 Glass Bead Thermistor,B25/85 Glass Bead Thermistor,3950K ntc type thermistor |
||

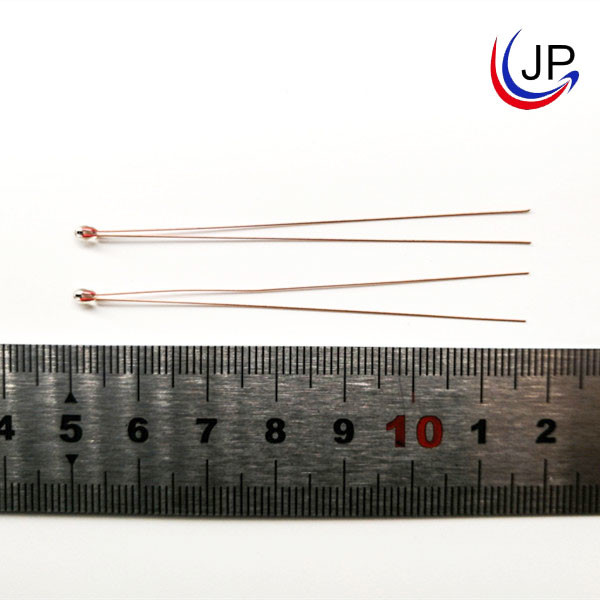

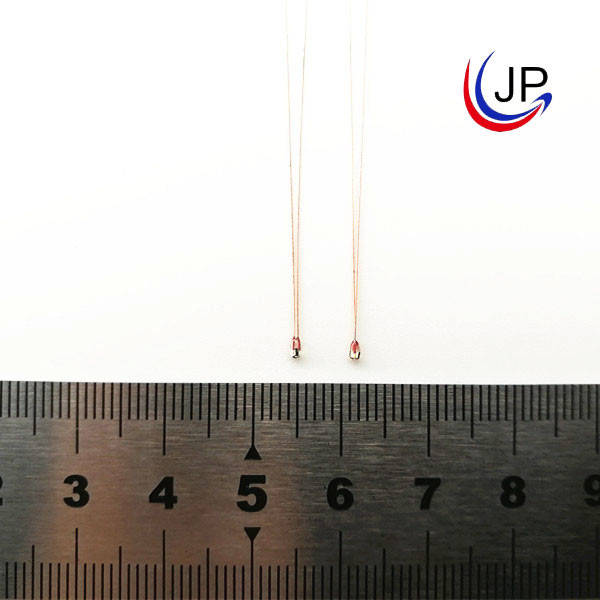

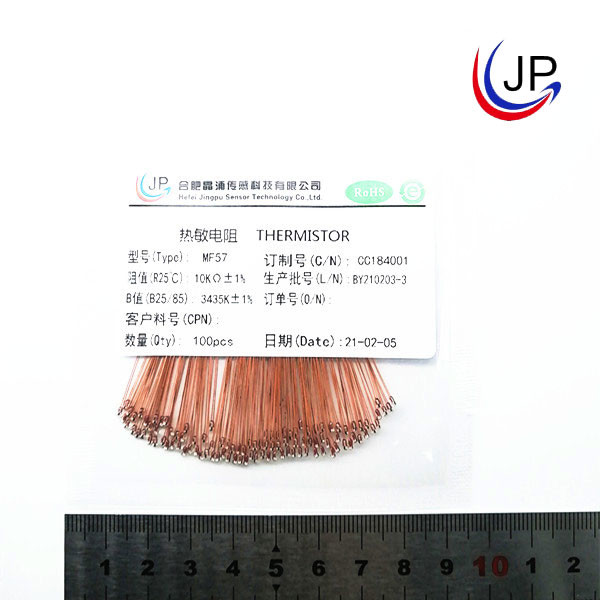

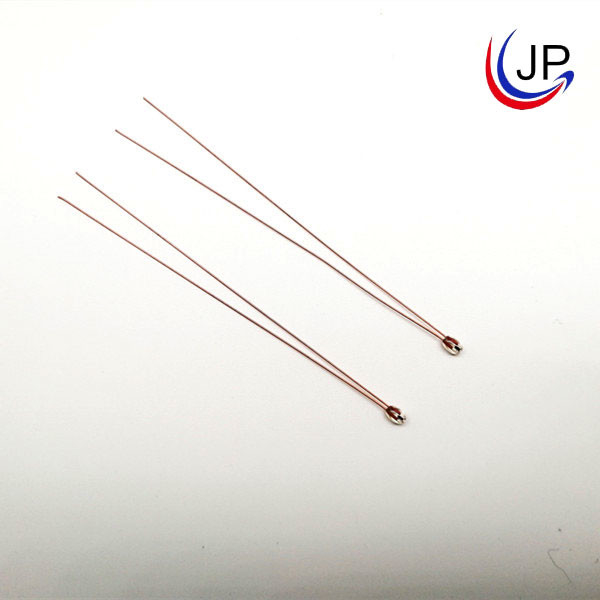

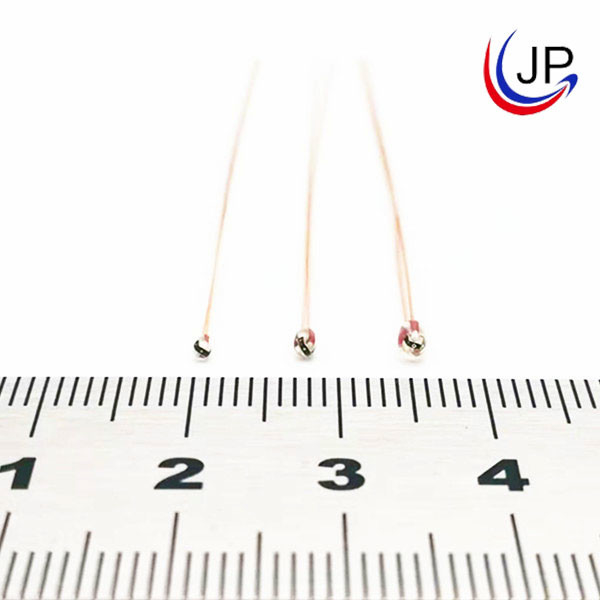

R25 100ohm Glass Bead Thermistor
Brief Introduction:
As one NTC thermistor sensor, glass coating NTC thermistor is made of glass bead, thinner dumet wire. Its feature is high temperature resistance. Glass coating NTC thermistor is widely applied for automotic electronics, home appliances, industrial devices, etc.
Features:
glass encapsulation
high temperature resistant
Operating temperature range: -40℃~300℃
R25=100KΩ±1%,B25/50=3950±1%
Glass probe 1.3mm
Application:
home appliances
automotive electronics
Industrial devices, and so on.
Part Number Code:
Structure and Dimensions:
Electrical Specification:
| Rec. at 25℃(KΩ) | Beta value | (In air) Pmax(mW) |
δ (mW/℃) |
Thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 2 | B25/85=3470 | Approx.20 | Approx.0.75 | Max.10 | -40~300 | 50 |
| 2 | B25/85=3977 | |||||
| 5 | B25/85=3950 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 100 | B25/50=3950 | |||||
| 100 | B25/85=4132 | |||||
| 100 | B25/50=4200 |
