| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | ISO9001, RoHS |
| Model Number: | MF58 |
| Minimum Order Quantity: | 1000 Pieces |
| Price: | Negotiable |
| Packaging Details: | Standard Packing |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Encapsulation: | Glass Coating Encapsulation | Operation Temperature Range: | -40℃~250℃ |
|---|---|---|---|
| R200℃: | 1KΩ±5% | B100/200: | 4537±3% |
| Application: | Microwave Oven, Induction Cooker,Home Appliances, Etc | Custom: | Affirmative |
| Warranty: | 2 Years | ||
| High Light: | 4537K ntc thermistor temperature sensor,1K ntc thermistor temperature sensor,R200 Negative Temperature Coefficient Thermistor |
||

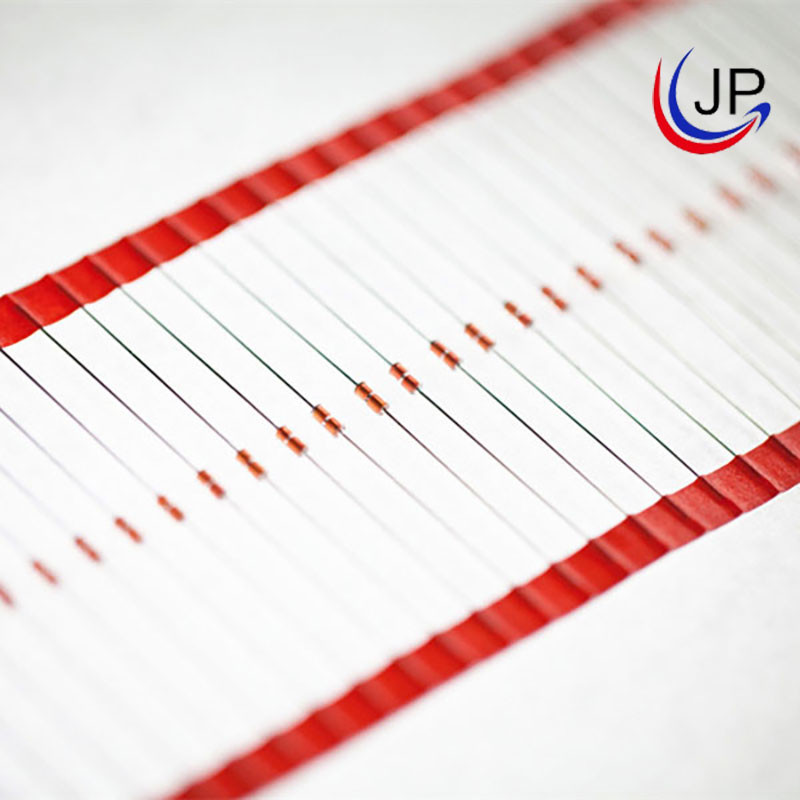

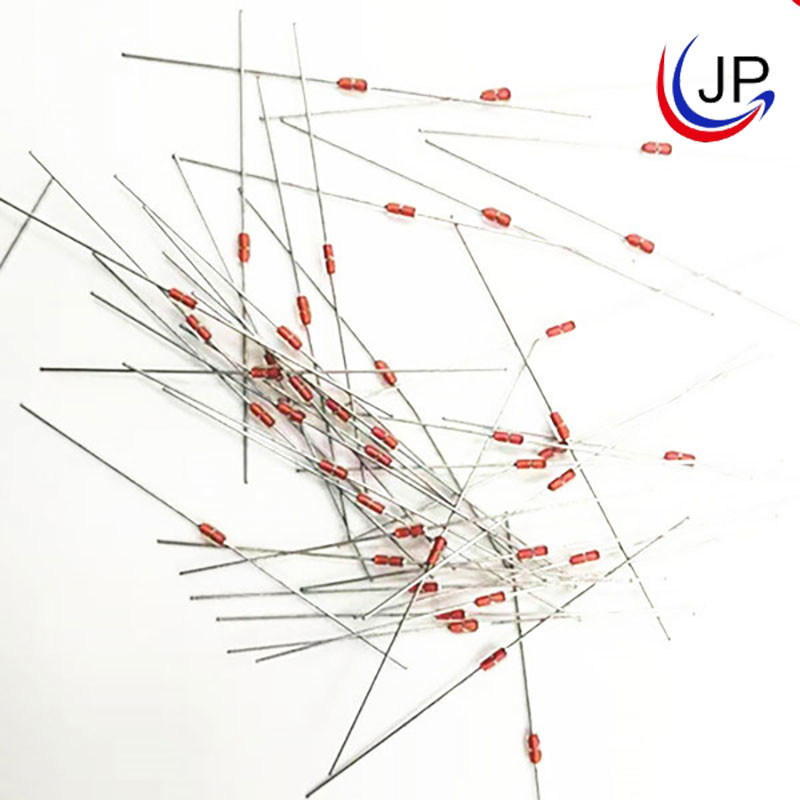

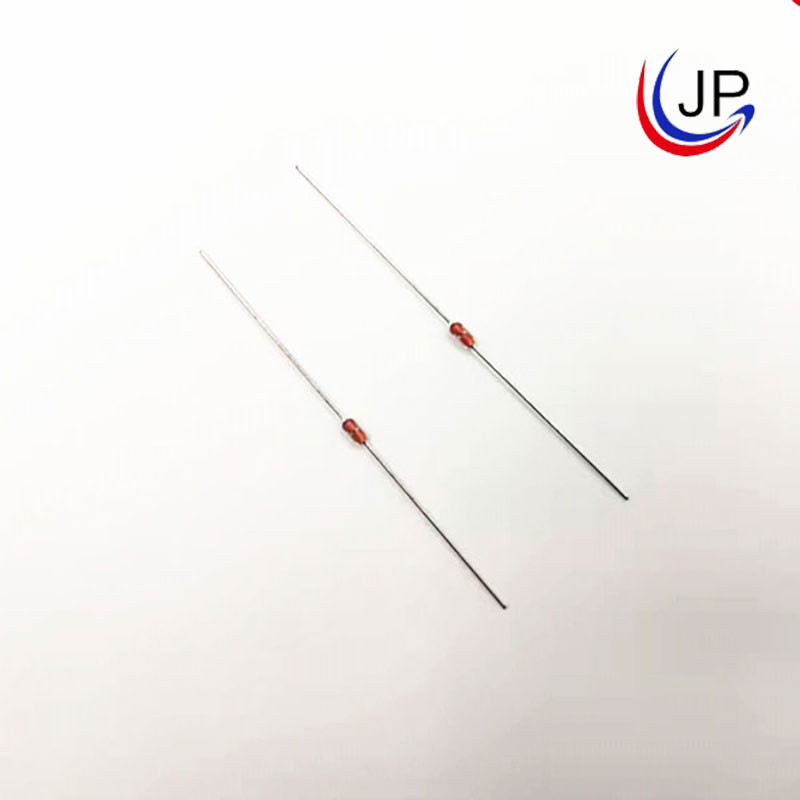

R200 1K 4537K NTC Thermistor Temperature Sensor Diode Glass Coating
Brief Instruction:
The item is one of NTC thermistor sensors, which is MF58 series glass bead temperature sensor. It is made of glass bead and thinner dumet wire. High-temperature resistance is the key to this product. Glass coating NTC thermistor is widely applied for automotive electronics, house appliances, industrial devices, etc.
Features:
Glass encapsulation
High temperature resistant
Operating temperature range: -40℃~250℃
R200℃=1KΩ±5%, B100/200=4537±3%
Application:
Home appliance, Induction cooker, microwave oven.
Part Number Code:
For example: B8103F3435BF: MF58 series NTC thermistor, R25℃=10kΩ±1%, B25/85=3435k±1%;

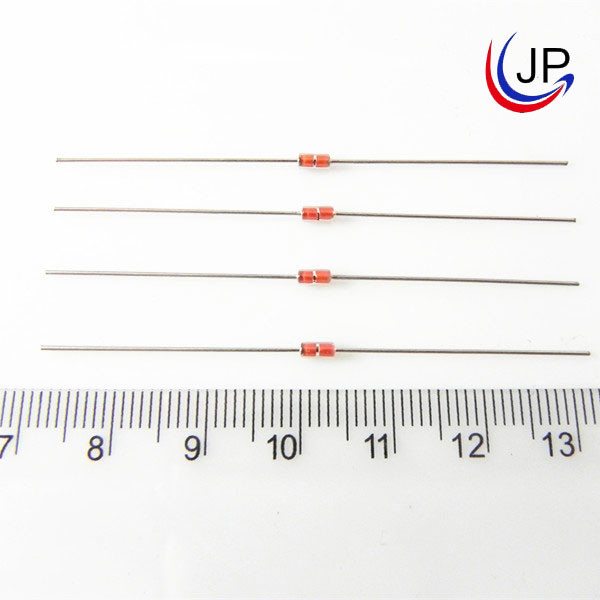

Structure and Dimensions:
Electrical Specification:
| Product Specification | Rec. at 25℃(KΩ) | Beta value(K) | (In air) Pmax(mW) |
δ (mW/℃) |
thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| B8202□3470A | 2 | B25/85=3470 | Approx.20 | Approx.1.0 | Max.15 | -40~250 | 60 |
| B8202□3830A | 2 | B25/85=3977 | |||||
| B8103□3470A | 5 | B25/50=3470 | |||||
| B8502□3950A | 5 | B25/85=3950 | |||||
| B8103□3435B | 10 | B25/85=3435 | |||||
| B8103□3470A | 10 | B25/50=3470 | |||||
| B8103□3580A | 10 | B25/50=3580 | |||||
| B8103□3630B | 10 | B25/50=3950 | |||||
| B8103□3950A | 10 | B25/50=3950 | |||||
| B8103□3977B | 10 | B25/50=3950 | |||||
| B8503□3950A | 50 | B25/50=3950 | |||||
| B8104□3950A | 100 | B25/50=3950 | |||||
| B8104□3990A | 100 | B25/50=3990 | |||||
| B8104□4132B | 100 | B25/85=4132 | |||||
| B8104□4200A | 100 | B25/50=4200 | |||||
| B8200R102□4537G | R200℃=1 | B100/200=4537 |
Standard packing (inner packing): 500pcs/polybag
Operation Notice:
1. The current flowing through the NTC is controlled within the Pmax range to avoid the measurement error caused by the self-heating of the component.
2. Avoid excessive heat shock, The hot air blow should be at least 30mm to the probe in case a heat-shrink protection tube needs to be attached.
