| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | ISO9001, RoHS |
| Model Number: | MFP-3G |
| Minimum Order Quantity: | 1000 Pieces |
| Price: | Negotiable |
| Packaging Details: | Carton Package |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| R0: | 6.65KΩ | B0/25: | 3914K |
|---|---|---|---|
| Operating Temperature Range:: | -40℃~105℃ | Application: | AC Of Vehicle, Evaporator |
| Probe: | Aluminum Probe | Cable: | PVC 24AWG 105℃ |
| High Light: | 3914K Probe Temperature Sensor,B0/25 Probe Temperature Sensor,6.65K high temperature probe |
||
R0 6.65K B0/25 3914K NTC Probe Temperature Sensor
Brief Instruction (Product Description):
This product is mainly used for temperature measurement of automobile air conditioners and evaporators. The product resistance parameters are generally R0℃=6.65KΩ, B0/25=3914K (can also be customized according to customer requirements), the probe is an aluminum shell, and the wire tail can be customized according to customer requirements with the corresponding connector.
Features:
Comply with RoHS standard
Operating temperature range: -40℃~105℃
Easy to install
Stable
Fast temperature measurement
Application:
AC of vehicle, evaporator
Structure and Dimensions:(unit: mm)
Electrical Specification:
| Rec. at 25℃(kΩ)+A2:G25 | Beta value | (In air) Pmax(mW) | δ(mW/℃) | Thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | Approx.60 | Max.3.0 | Max.20 | -40℃~125℃ | 8~100 |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |

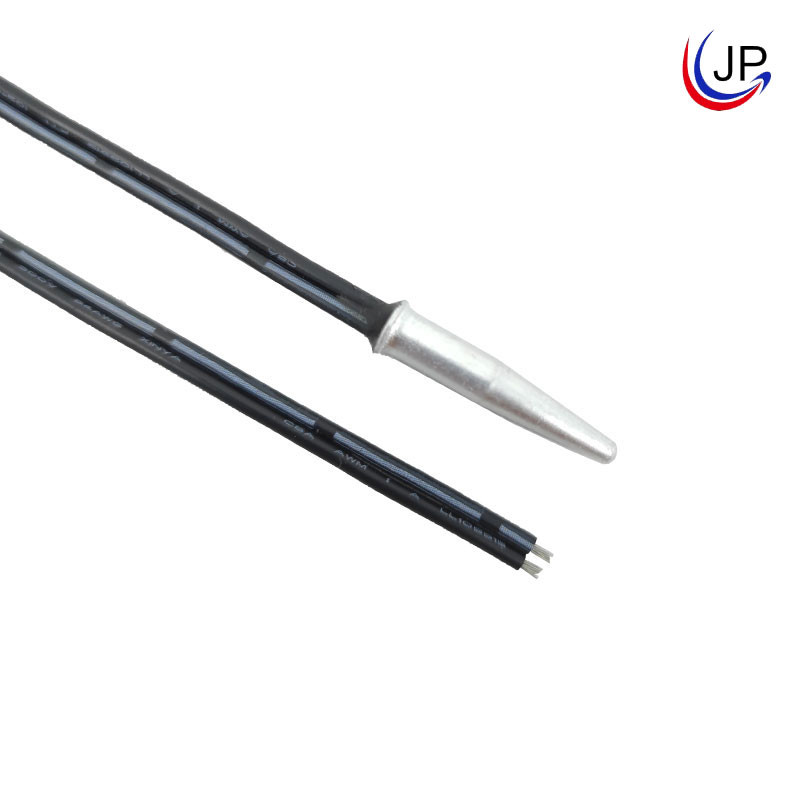

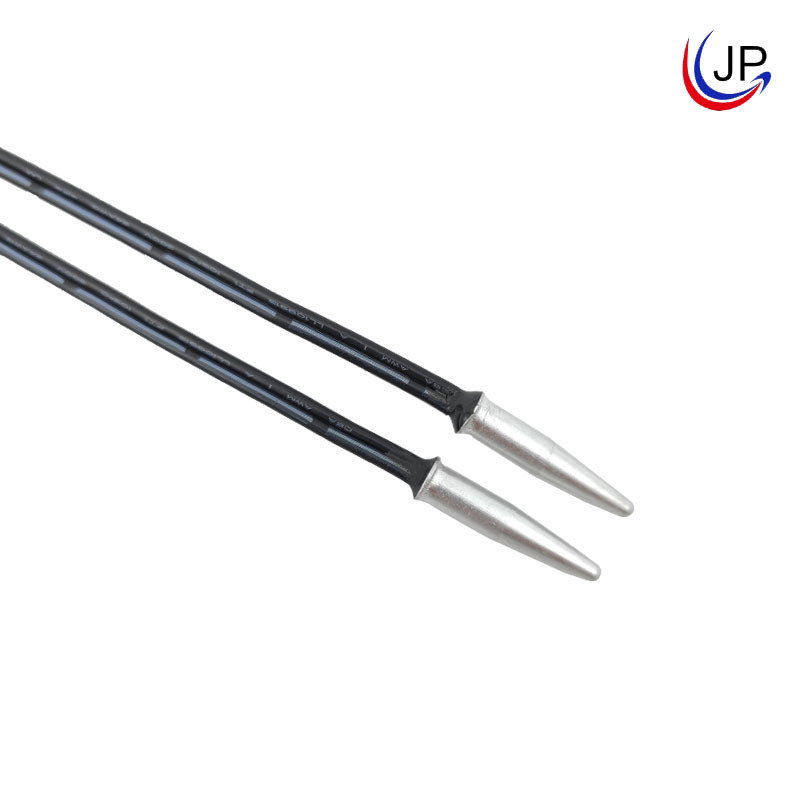

Other Product Images:
