| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | ISO9001, RoHS |
| Model Number: | MFP-3G |
| Minimum Order Quantity: | 1000 Pieces |
| Price: | Negotiable |
| Packaging Details: | Standard Packing |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Probe: | Stainless Steel Probe | Wire: | UL4413 26AWG XLPE 150℃ |
|---|---|---|---|
| Resistance: | 50KΩ | B25/50: | 3950K |
| Operating Temperature Range: | -40℃~125℃ | Customization: | Available |
| High Light: | Electric Kettle Probe Temperature Sensor,Probe Temperature Sensor Stainless Steel,Home Appliances temperature measurement sensor |
||

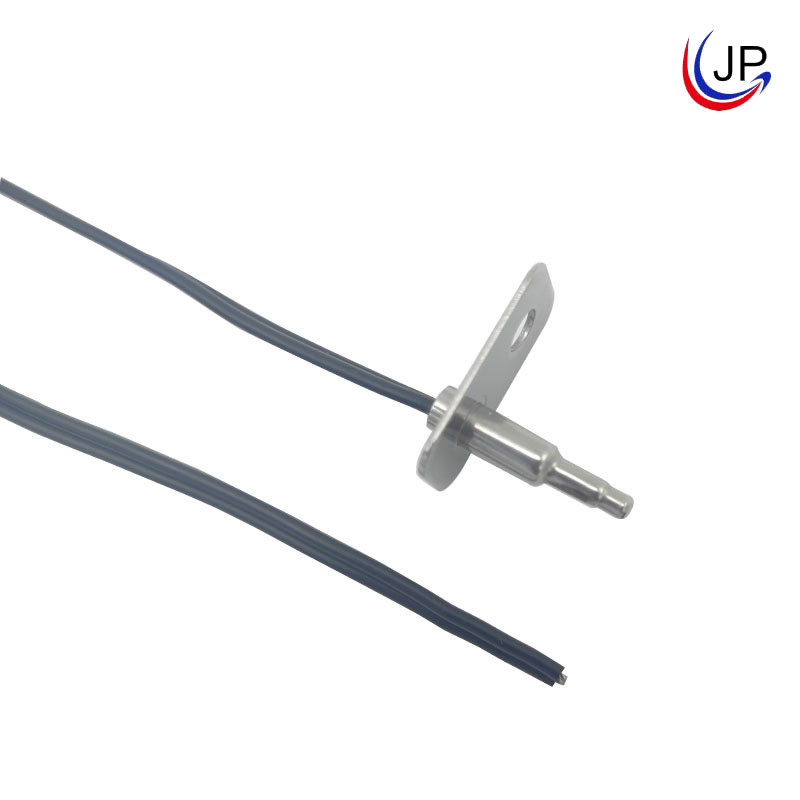

Electric Kettle Probe Temperature Sensor Stainless Steel Home Appliances
Brief Introduction (Product Description):
This product is generally used in electric kettles and other small home appliances. The probe of the product is stainless steel, the wire is UL4413 26AWG XLPE 150℃ irradiated wire, and the resistance parameters are generally 50KΩ, B25/50=3950K (can also be customized according to customer requirements). It is encapsulated with epoxy resin, the wire tail can be equipped with corresponding connectors according to customer requirements.
Features:
Fast response
Comply with RoHS standard
Operating temperature range: -40℃~125℃
Easy to install
Stainless steel probe
Application:
Electric kettle, water heater, etc
Electrical Specification:
| Rec. at 25℃(kΩ) | Beta value |
(In air) Pmax(mW) |
δ(mW/℃) | Thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | Approx.60 | / | / | -20℃~105℃(PVC wire)& -40℃~125℃(teflon or XLPE wire) | 100~5000 |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |

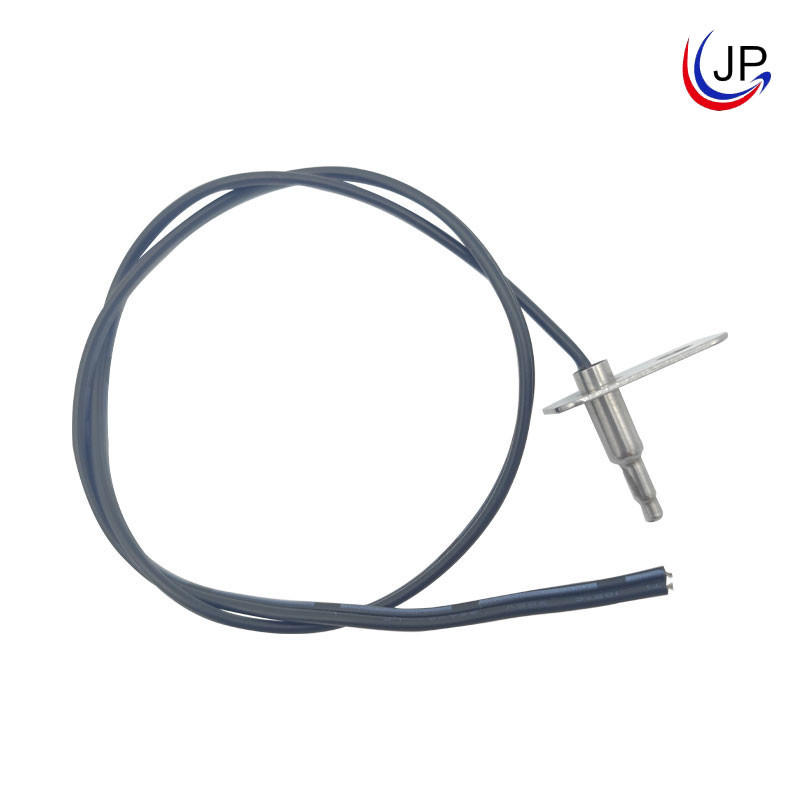

Other Product Images:
