| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | ISO9001, RoHS |
| Model Number: | MF58 |
| Minimum Order Quantity: | 1000 Pieces |
| Price: | Negotiable |
| Packaging Details: | Carton Packing |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| R25: | 50KΩ±1% | B25/50: | 3950±1% |
|---|---|---|---|
| Encapsulation: | Glass Encapsulation | Operating Temperature Range: | -40℃~250℃ |
| Feature: | High Temperature Resistant | Chip: | NTC Chip |
| High Light: | Home Appliances NTC Thermistor Temperature Sensor,50K ntc thermistor temperature sensor,ISO9001 ntc thermistor sensor |
||
50KΩ 3950K Diode NTC Glass Bead Thermistor For Home Appliances
Brief Introduction:
MF58 series glass bead temperature sensor, As one NTC thermistor sensor, glass coating NTC thermistor is made of glass bead, thinner dumet wire. Its feature is high-temperature resistance. Glass coating NTC thermistor is widely applied for automotive electronics, house appliances, industrial devices, etc.
Features:
glass encapsulation
high temperature resistant
Operating temperature range: -40℃~250℃
R25=50KΩ±1%, B25/50=3950±1%
Application:
home appliance
Part Number Code:
For example: B8103F3435BF: MF58 series NTC thermistor, R25℃=10kΩ±1%, B25/85=3435k±1%;

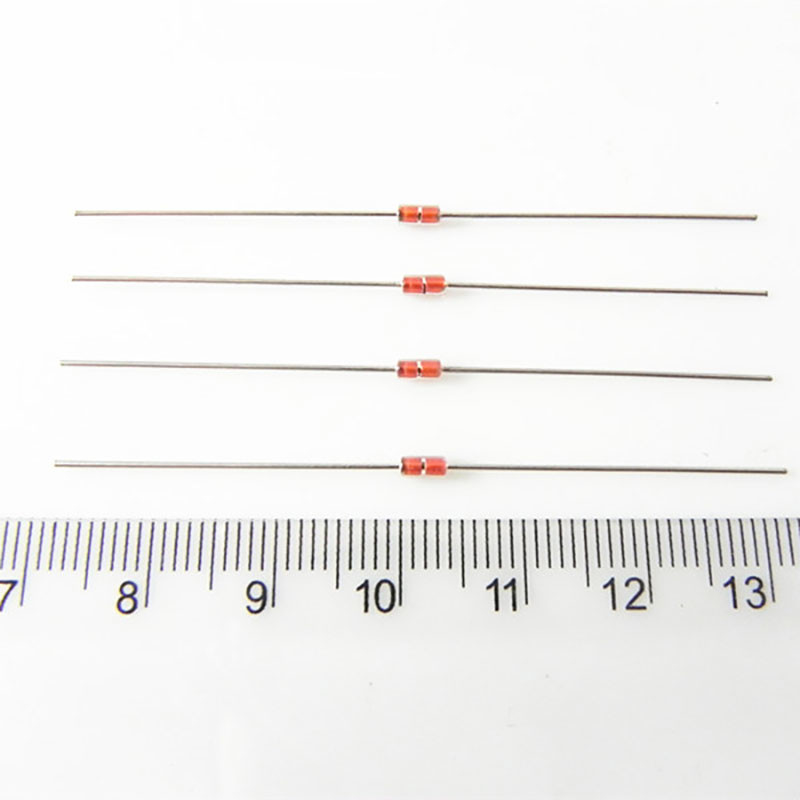

Structure and Dimensions:
Electrical Specification:
| Product Specification | Rec. at 25℃(KΩ) | Beta value | (In air) Pmax(mW) |
δ (mW/℃) |
Thermaltime constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| B8202□3470A | 2 | B25/85=3470 | Approx.20 | Approx.1.0 | Max.15 | -40~250 | 60 |
| B8202□3830A | 2 | B25/85=3977 | |||||
| B8103□3470A | 5 | B25/50=3470 | |||||
| B8502□3950A | 5 | B25/85=3950 | |||||
| B8103□3435B | 10 | B25/85=3435 | |||||
| B8103□3470A | 10 | B25/50=3470 | |||||
| B8103□3580A | 10 | B25/50=3580 | |||||
| B8103□3630B | 10 | B25/50=3950 | |||||
| B8103□3950A | 10 | B25/50=3950 | |||||
| B8103□3977B | 10 | B25/50=3950 | |||||
| B8503□3950A | 50 | B25/50=3950 | |||||
| B8104□3950A | 100 | B25/50=3950 | |||||
| B8104□3990A | 100 | B25/50=3990 | |||||
| B8104□4132B | 100 | B25/85=4132 | |||||
| B8104□4200A | 100 | B25/50=4200 | |||||
| B8200R102□4537G | R200℃=1 | B100/200=4537 |
