| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | ISO9001, RoHS |
| Model Number: | MF5A-5 |
| Minimum Order Quantity: | 1000 Pieces |
| Price: | Negotiable |
| Packaging Details: | Carton Packing |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Operating Temperature Range: | -40℃~150℃ | Size Of Epoxy Resin Probe: | Max 2.5mm |
|---|---|---|---|
| Chip: | NTC Chip | Wire: | Teflon 30AWG(7/0.1) 200℃ |
| Encapsulation: | Epoxy Resin | Warranty: | 2 Years |
| High Light: | Epoxy Resin probe type temperature sensor,NTC probe type temperature sensor,ISO9001 ntc probe |
||

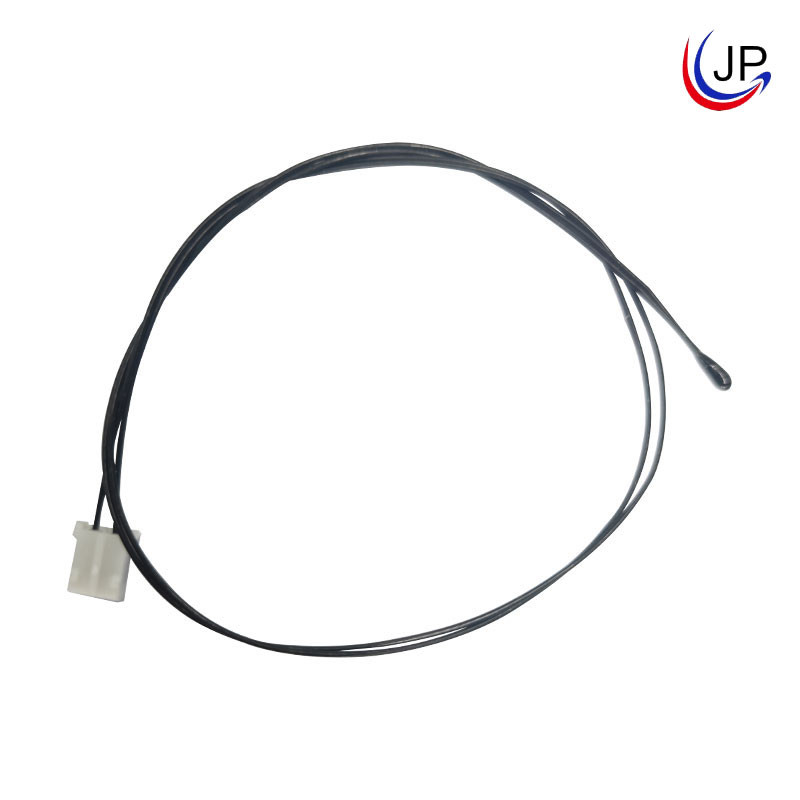

NTC Epoxy Resin Probe Type Temperature Sensor For Small Motor Windings
Brief Introduction:
NTC Epoxy Resin Probe Type Temperature Sensor For Small Motor Windings consists of teflon 30AWG(7/0.1) 200℃ wire, epoxy resin encapsulation with PH-2Y connector. The probe can be made smaller, so it is easy to enter into the winding of a motor.
Features:
RoHS compliant
Operating temperature range: -40℃~150℃
AC 750V 1mA 1S
Size of epoxy resin probe: max 2.5mm
Application:
winding of motor
Electrical Specification:
| Rec. at 25℃(kΩ) | Beta value | (In air) Pmax(mW) | δ(mW/℃) | Thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | Approx.60 | Max.3.0 | Max.20 | -20℃~105℃(PVC wire)& -40℃~125℃(teflon or XLPE wire) | 13.5~1000 |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |

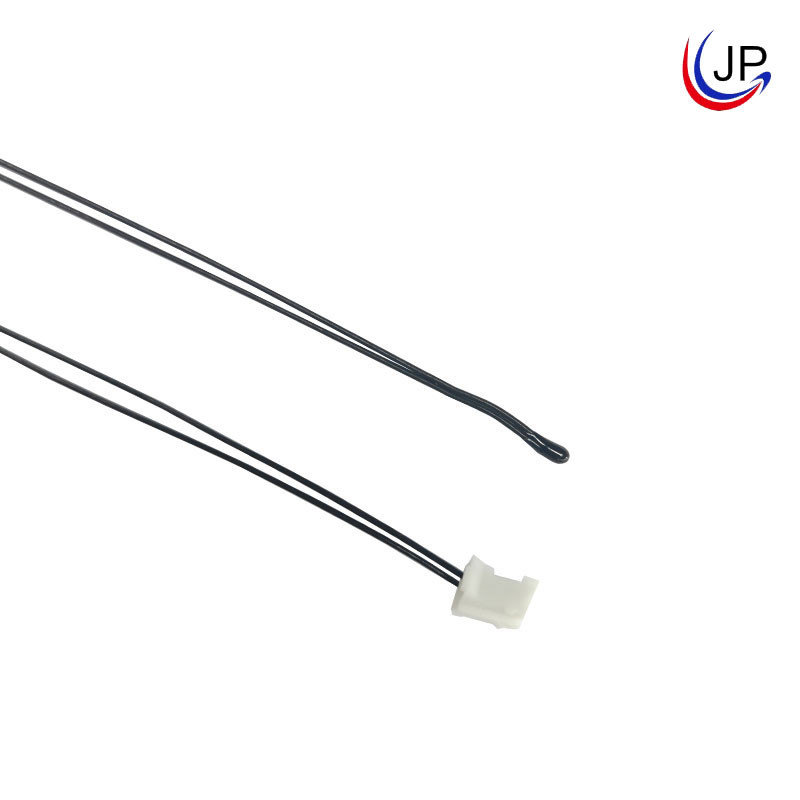

Other Product Images:
