| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | ISO9001, RoHS |
| Model Number: | MFP |
| Minimum Order Quantity: | 1000 Pieces |
| Price: | Negotiable |
| Packaging Details: | Standard Packing |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Resistance: | 50KΩ | B Value: | 3950k 3990k |
|---|---|---|---|
| Tolerance: | ±0.5%, ±1%, ±2%, ±3%, ±5% | Chip: | NTC Thermal Chip |
| Feature: | Comply For RoHS Standard/Silver Electrode/Small Dimension | Custom: | Supportive |
| High Light: | 3990k ntc thermistors for temperature measurement,3950k ntc thermistors for temperature measurement,50Kohm ntc type temperature sensor |
||

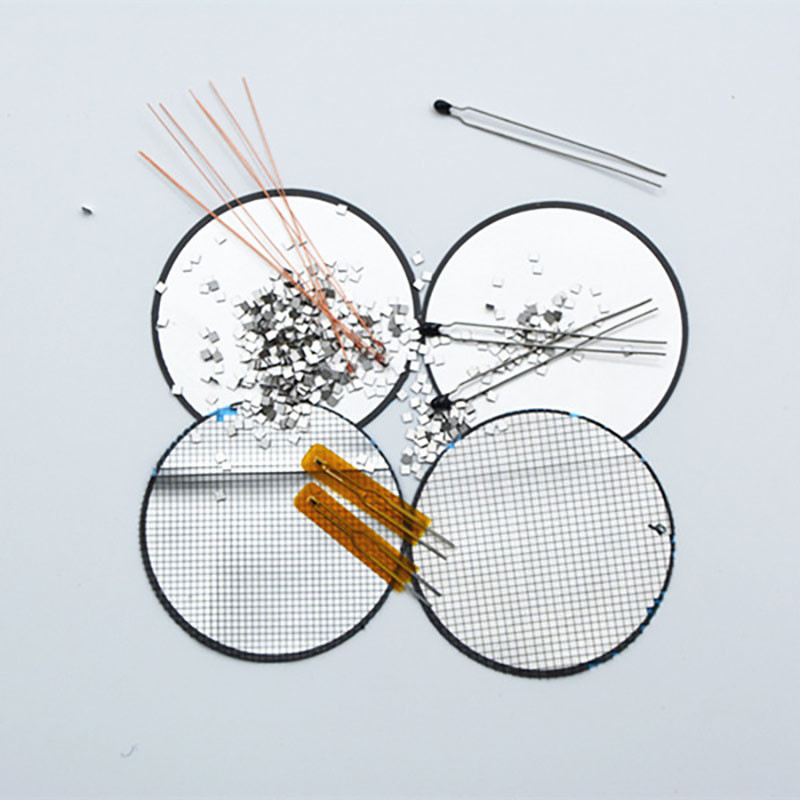

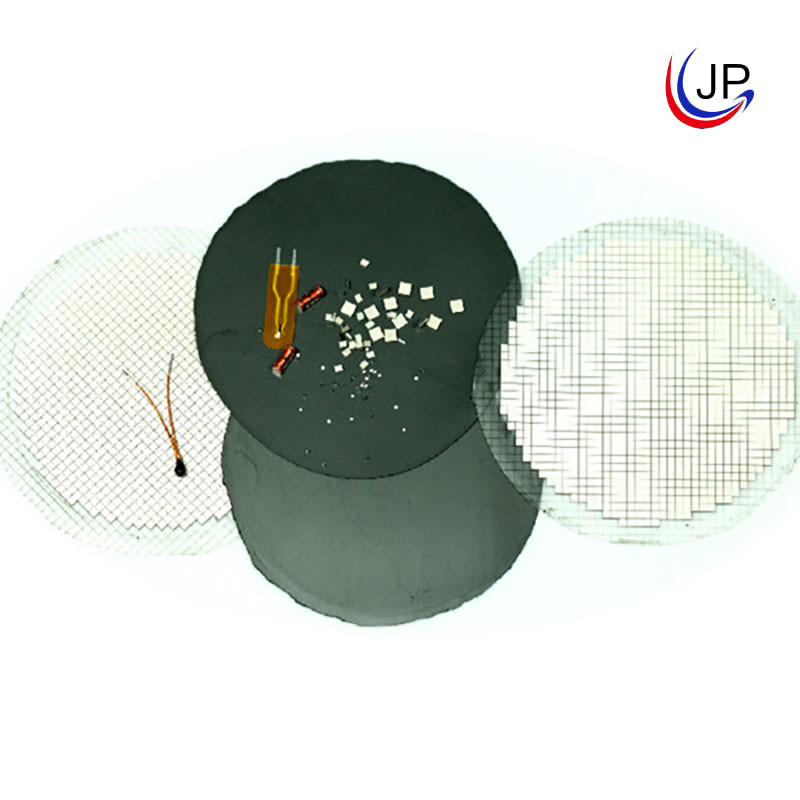

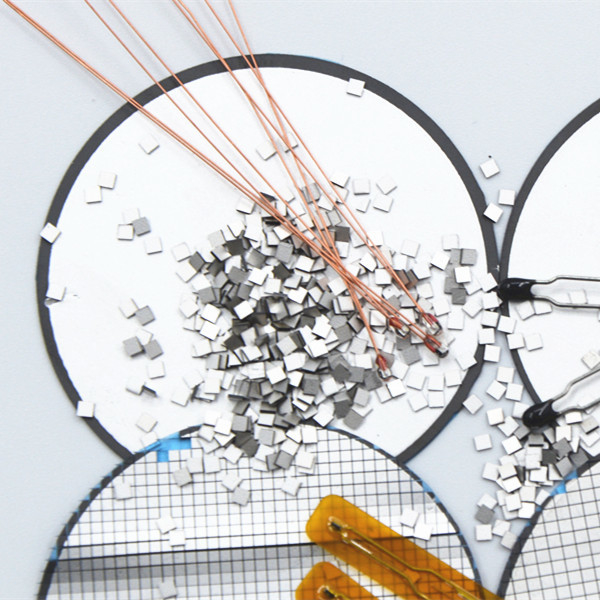

50Kohm 3950k 3990k NTC Thermistors For Temperature Measurement
Application:

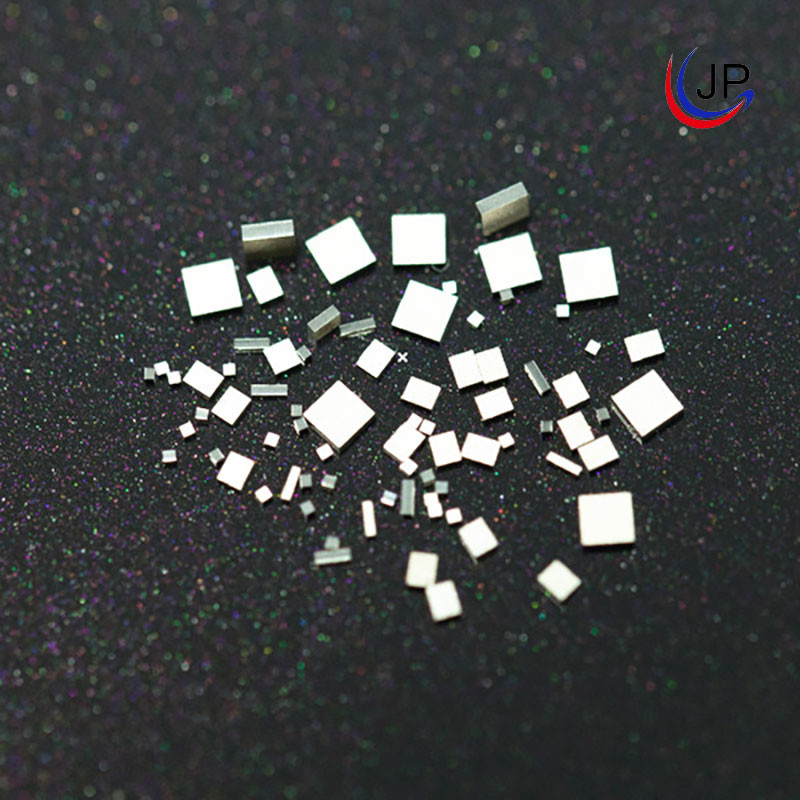

50KΩ 3950k 3990k NTC Thermal chip is widely used in many fields and is generally used in home appliances, medical equipment, batteries, etc. Its resistance tolerance can be divided into ±0.5%, ±1%, ±2%, ±3%, ±5%.
Features:
Comply with RoHS standard
Silver electrode
Small dimension
Stable
Easy to solder
Good replaceability
Application:
It is used for fabricating and producing NTC thermistors and temperature sensors
Part Number Code:
Structure and Dimensions:
Electrical Specification:
| Rec. at 25℃(kΩ)+A2:G25+A2:G25 | Beta value | (In air) Pmax(mW) | δ(mW/℃) | thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | / | / | / | / | / |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |
