| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | ISO9001, RoHS |
| Model Number: | MFP |
| Minimum Order Quantity: | 1000 Pieces |
| Price: | Negotiable |
| Packaging Details: | Carton Packing |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| R25℃: | 3kΩ | B25/85: | 3500K |
|---|---|---|---|
| Thread Of Probe: | M10 | Application: | Engineering Equipment |
| Connector: | DT04-2P | Customization: | Yes |
| High Light: | 3k temp sensor probe,3500K temp sensor probe,NTC temperature probe |
||
NTC 3500K 3k Temp Sensor Probe For Container Loading Vehicle In Port
Product Description:

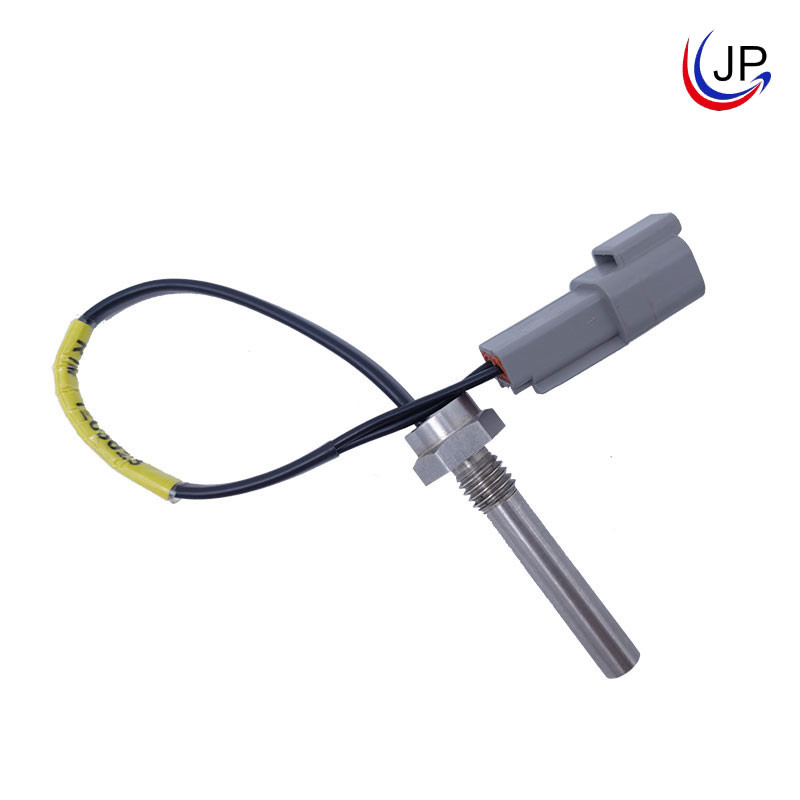

NTC 3500K 3k Temp Sensor Probe For Container Loading Vehicle In Port is used for temperature measurement of construction machinery vehicles, mainly used for port container loading vehicles. The probe is made of stainless steel, the thread is M10, and the connector is DT04-2P.
Features:
Comply with RoHS standard
R25℃=3kΩ
B25/85=3500K
Easy to install
Highly reliable
The probe is stainless steel and anti-erosion
Application:
Engineering equipment
Structure and Dimensions:(unit: mm)
Electrical Specification:
| Rec. at 25℃(kΩ)+A2:G25+A2:G25 | Beta value | (In air) Pmax(mW) | δ(mW/℃) | Thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | Approx.60 | Max.3.0 | Max.20 | -40℃~125℃ | 8~100 |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |

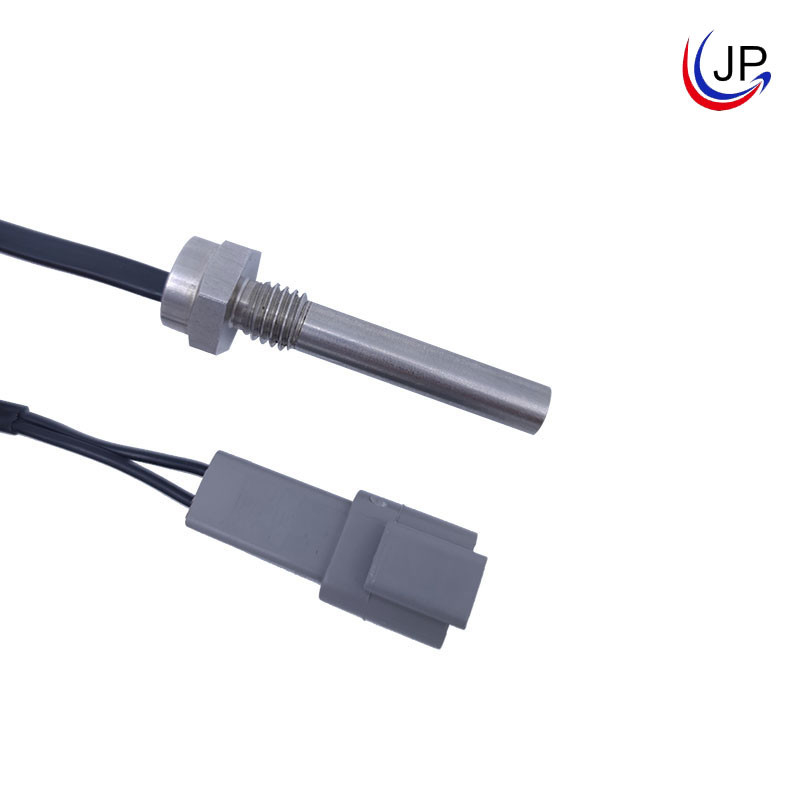

Other Product Images:
