| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | ISO9001, RoHS |
| Model Number: | MF58 |
| Minimum Order Quantity: | 1000 Pieces |
| Price: | Negotiable |
| Packaging Details: | Standard Packing |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Encapsulation: | Glass Encapsulation | Feature: | High Temperature Resistant |
|---|---|---|---|
| Operating Temperature Range: | -40℃~250℃ | R25℃: | 100KΩ±1% |
| B25/50: | 3950±1% | Application: | Home Appliance, Microwave Oven, Induction Cooker |
| High Light: | Diode Glass Coating ntc thermistor temperature sensor,3950k ntc thermistor temperature sensor,100Kohm ntc thermistor sensor |
||
3950k Diode Glass Coating NTC Thermistor Temperature Sensor 100Kohm
Product Description:

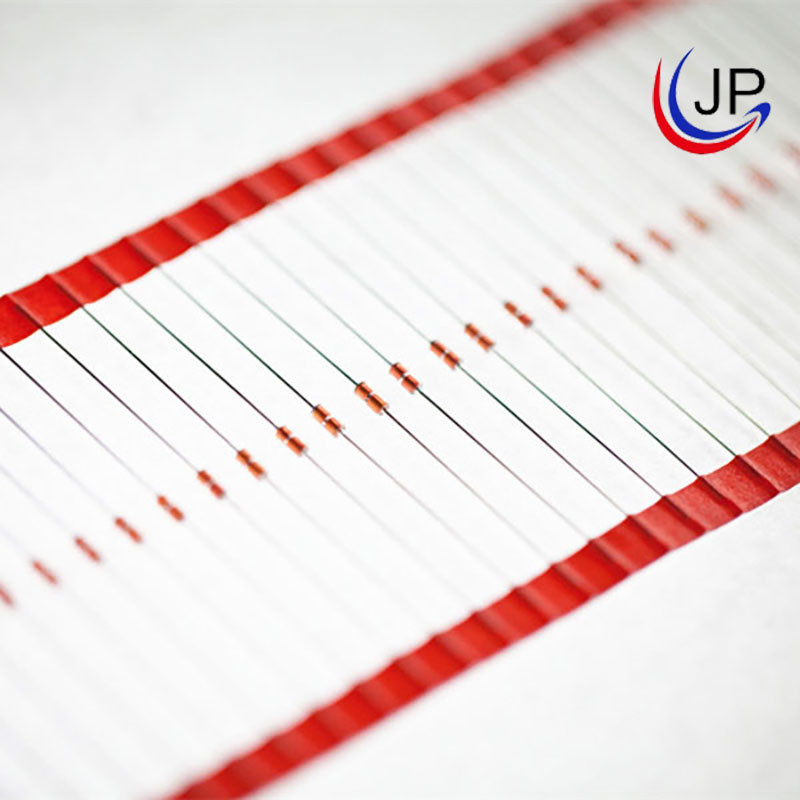

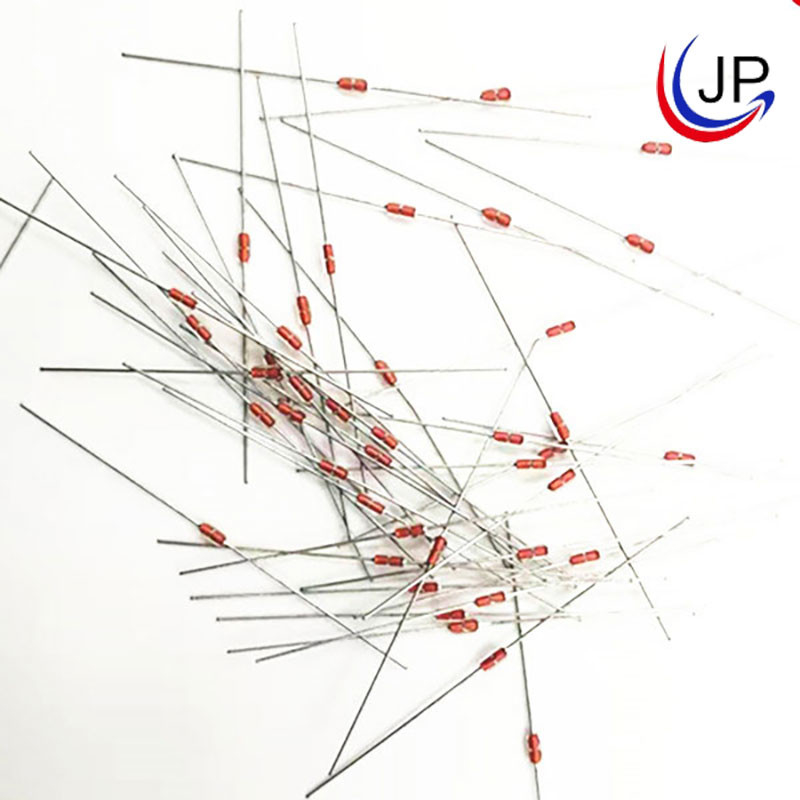

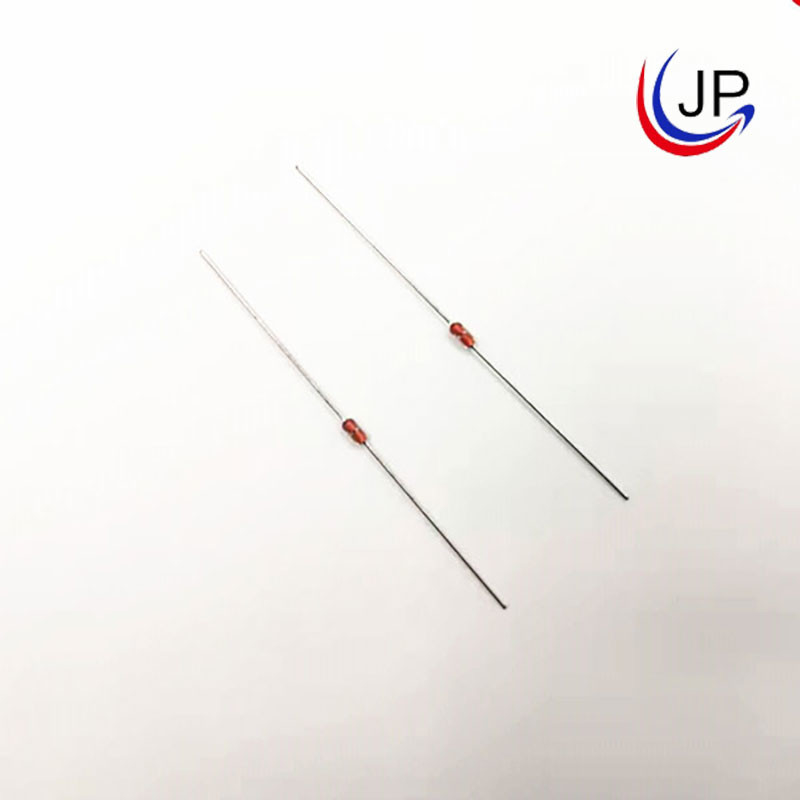

MF58 series glass bead temperature sensor, As one NTC thermistor sensor, glass coating NTC thermistor is made of glass bead, thinner dumet wire. Its feature is high-temperature resistance. Glass coating NTC thermistor be widely applied for automotive electronics, house appliances, industrial devices, etc.
Features:
Glass encapsulation
High temperature resistant
Operating temperature range: -40℃~250℃
R25℃=100KΩ±1%, B25/50=3950±1%
Application:
Home appliance, Induction cooker, microwave oven.
Part Number Code:
For example: B8103F3435BF: MF58 series NTC thermistor, R25℃=10kΩ±1%, B25/85=3435k±1%;
Structure and Dimensions:
Electrical Specification:
| Rec. at 25℃(KΩ) | Beta value | (In air) Pmax(mW) |
δ (mW/℃) |
Thermaltime constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 2 | B25/85=3470 | Approx.20 | Approx.1.0 | Max.15 | -40~250 | / |
| 2 | B25/85=3977 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/85=3950 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3580 | |||||
| 10 | B25/50=3950 | |||||
| 10 | B25/50=3950 | |||||
| 10 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 100 | B25/50=3950 | |||||
| 100 | B25/50=3990 | |||||
| 100 | B25/85=4132 | |||||
| 100 | B25/50=4200 | |||||
| R200℃=1 | B100/200=4537 |
Standard packing (inner packing): 500pcs/polybag
Operation Notice:
1. The current flowing through the NTC is controlled within the Pmax range to avoid the measurement error caused by the self-heating of the component.
2. Avoid excessive heat shock, The hot air blow should be at least 30mm to the probe in case a heat-shrink protection tube needs to be attached.
