| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | ISO9001, RoHS |
| Model Number: | MFP |
| Minimum Order Quantity: | 500 Pieces |
| Price: | Negotiable |
| Packaging Details: | Standard Packaging |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Resistance: | R100=3.3KΩ | B Value: | B0/100=3970K |
|---|---|---|---|
| Voltage Withstanding: | 1500V/1sec/1mA | Operation Temperature Range: | -40℃~200℃ |
| Application: | Temperature Measurement For Motor Coil | Customization: | Support |
| High Light: | Motor Coil Probe Temperature Sensor,Probe Temperature Sensor 3.3K,3970K ntc type temperature sensor |
||
Motor Coil NTC Probe Temperature Sensor 3.3K R100 B0/100 3970K
Product Description:
This product can be used to measure the temperature of the motor coil, the product is resistant to high temperature and oil. And it is polycrystalline mixed oxide ceramics made MF57 type glass bead NTC thermistor soldered with UL 1332 insulated wire 24AWG. Most of temperature probe housings are rectangular tube. Its parameters: R100=3.3KΩ, B0/100=3970K, voltage withstanding 1500V/1sec/1mA.
Features:
RoHS compliant
High temperature resistant
Oil-proof
Operating temperature range: -40℃~200℃
AC 1500V 1mA 1S
R100=3.3KΩ, B0/100=3970K
Application:
Temperature measurement for motor coil
Structure and Dimensions
| NO. | Name | Material Specification | QTY. | Remarks |
| 1 | Thermistor | NTC Glass thermistor | 1 | -- |
| 2 | Probe | tube (rectangular) | 1 | / |
| 3 | Wire | UL1332 24AWG wire 200℃ | 1 | Black |
| 4 | Stripping | tinned | 2 |
| Symbol | A | B | C | D | L1 | L2 |
| RNB5.5-5 dimension (mm) | 3.5 | 15 | 2 | 2.3 | 500 | 3 |

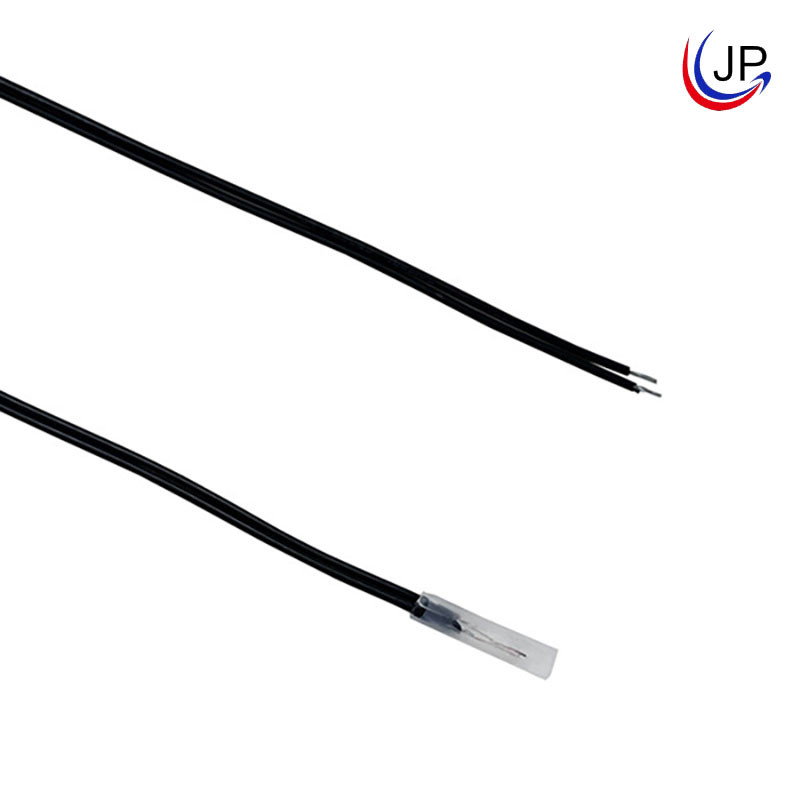

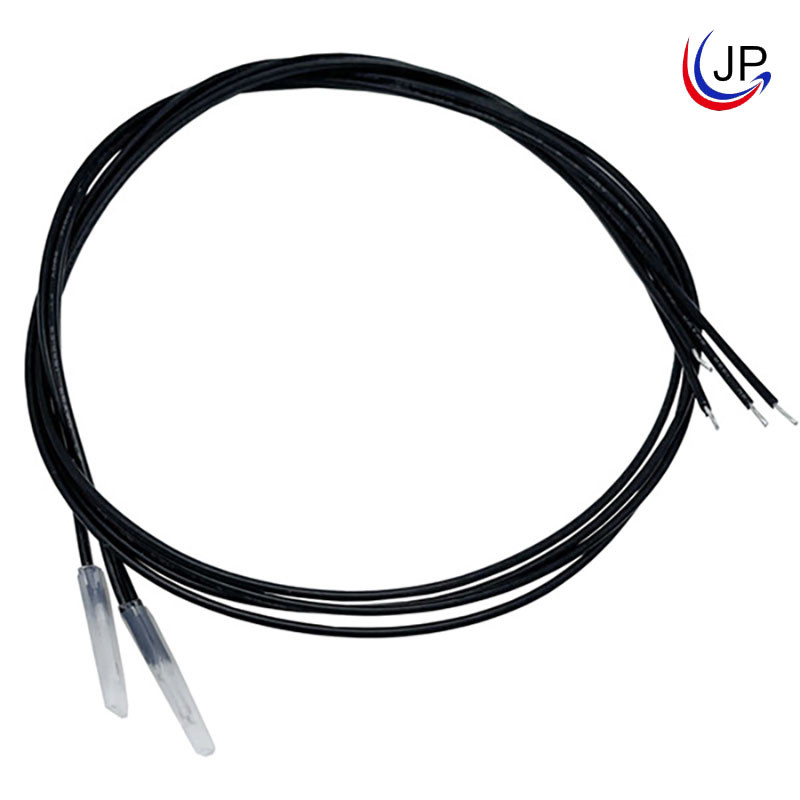

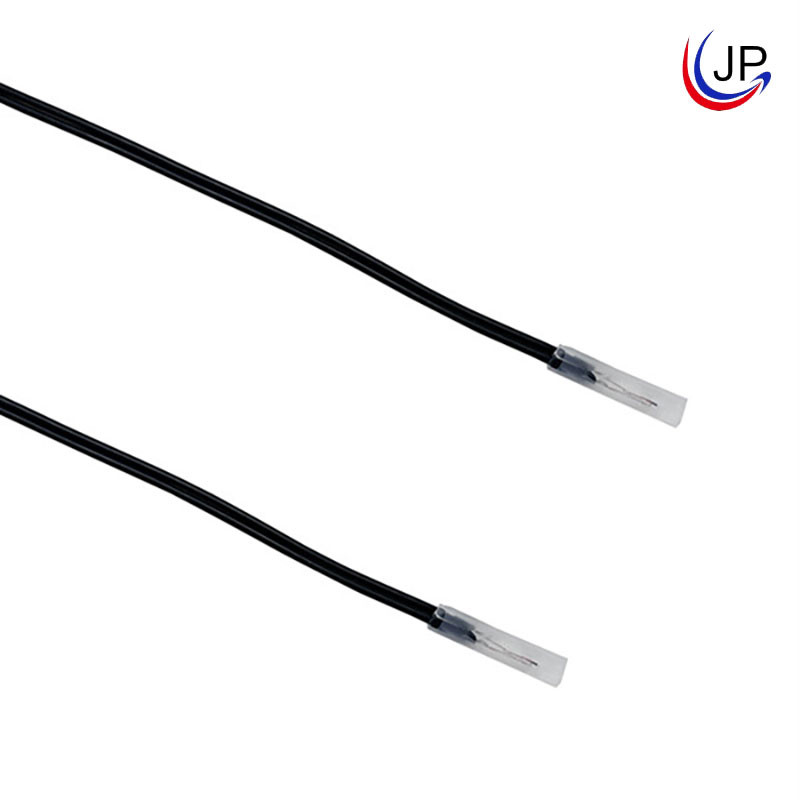

Other Product Images:
