| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JINGPU SENSOR |
| Certification: | ISO9001, RoHS |
| Model Number: | MFT |
| Minimum Order Quantity: | 500 Pieces |
| Price: | To be negotiated |
| Packaging Details: | Carton Packaging |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Resistance R25: | R25℃=10kΩ | Rsistance R0: | R0℃=32.51kΩ |
|---|---|---|---|
| B Value: | B25/50=3950k | Application: | Refrigerator, Fridge |
| Operating Temperature Range: | -40℃~80℃ | Wire: | UL2464 24AWG 80℃ Wire |
| High Light: | 3950k ntc temperature probe,10k ntc temperature probe,Refrigerators high temperature thermistor probes |
||

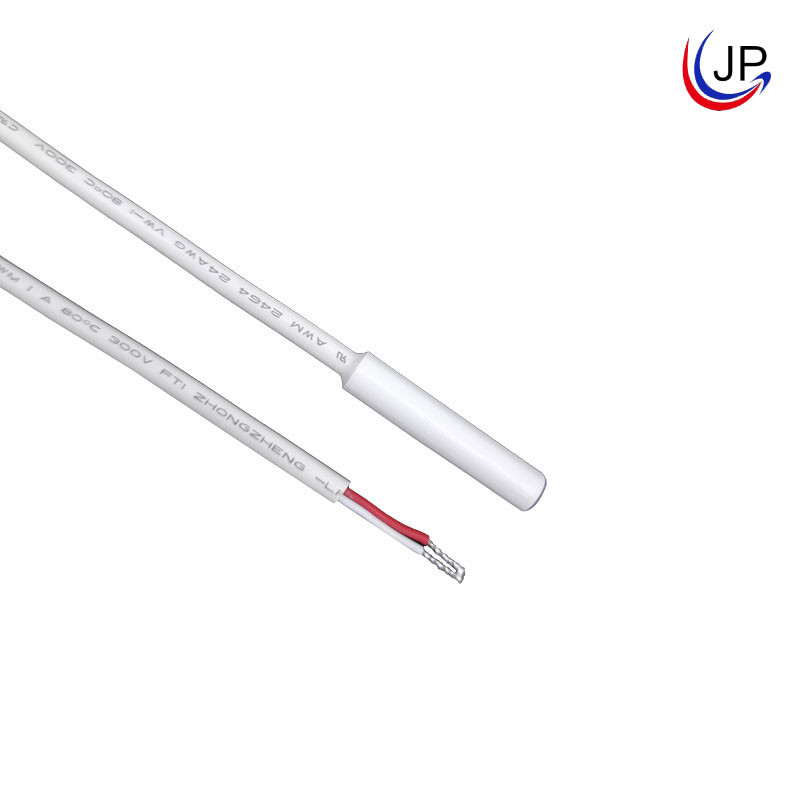

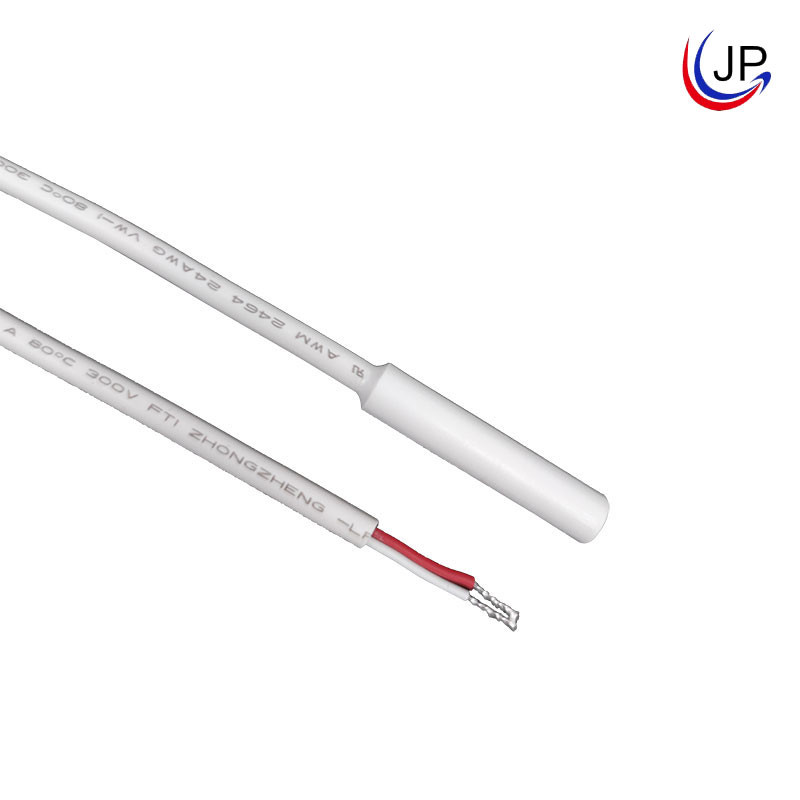

10k 3950k NTC Temperature Probe ABS 6X30 For Refrigerators
Brief Introduction:
ABS probe NTC temperature sensor for refrigerators, the probe is the common ABSΦ6*30mm shell in the market, the wire is UL2464 24AWG 80℃ wire, the parameters are generally 5KΩ, 10kΩ, and the control temperature is about 0℃.
Features:
Comply with RoHS standard
PVC insulated lead wires series Operating temperature range: -40℃~80℃
Stable performance
Accurate temperature measurement
Accurate low-temperature control
R25℃=10kΩ
R0℃=32.51kΩ
B25/50=3950k
Application:
Refrigerator, Fridge
Structure and Dimensions(mm):
| Rec. at 25℃(kΩ)+A2:G25+A2:G25 | Beta value | (In air) Pmax(mW) | δ(mW/℃) | Thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | Approx.60 | Max.3.0 | Max.20 | -40℃~80℃ | 100~2000 |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |

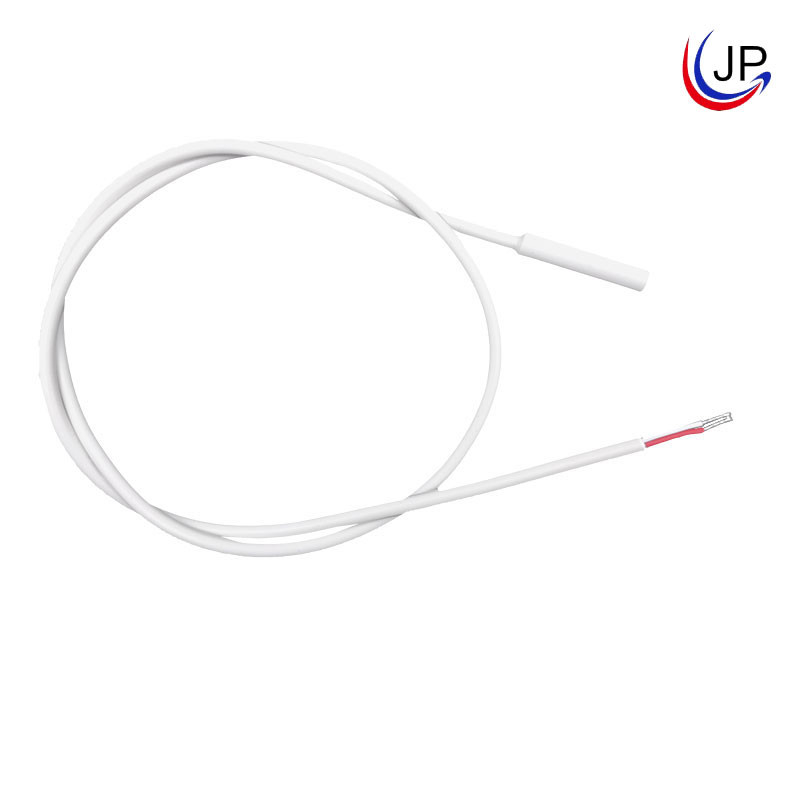

Other Product Images:
