| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JINGPU SENSOR |
| Certification: | ISO9001, RoHS |
| Model Number: | MFP |
| Minimum Order Quantity: | 500 Pieces |
| Price: | To be negotiated |
| Packaging Details: | Carton Packaging |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Resistance: | R25=100kΩ | B Value: | B25/85=3990k |
|---|---|---|---|
| Operating Temperature Range: | -40℃~250℃ | Application: | Induction Cooker |
| OEM/ODM: | Yes | Custom: | Yes |
| High Light: | Glass Bead Thermistor 3990K Glass Bead Thermistor,100kohm Glass Bead Thermistor,Induction Cooker ntc type temperature sensor |
||

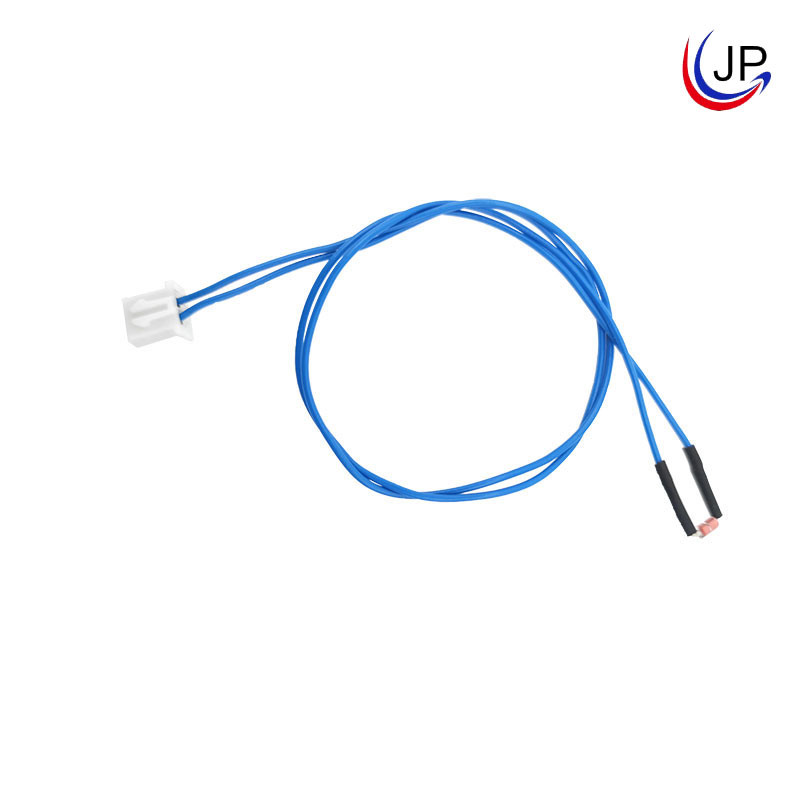

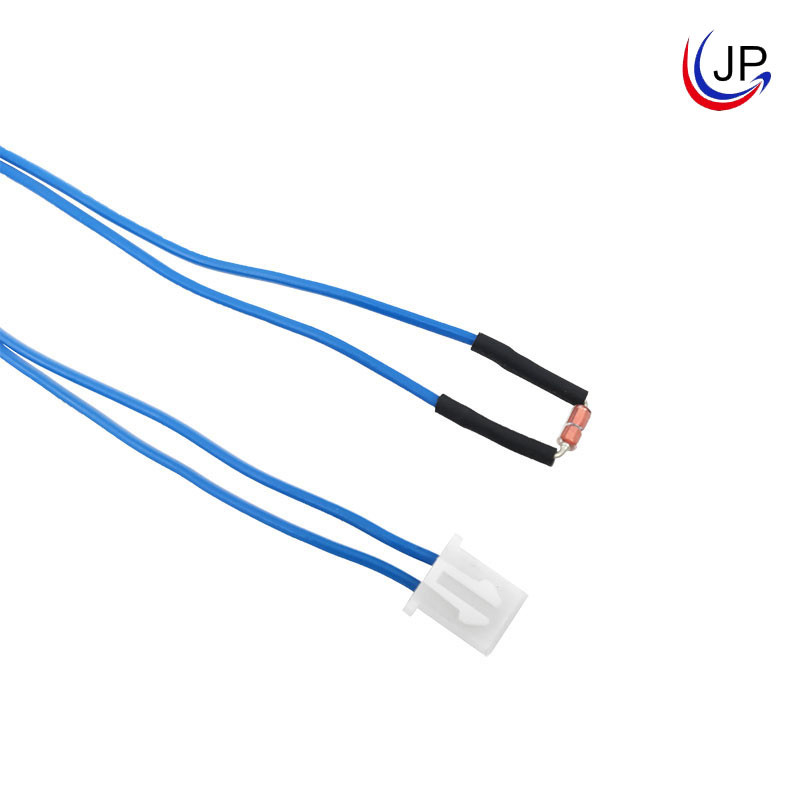

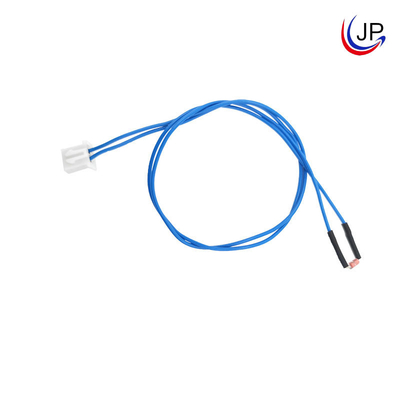

100kohm 3990K Glass Bead Thermistor NTC Type Temperature Sensor For Induction Cooker
Product Description:
This product has a temperature resistance of 250 ℃, glass fiber silicone wire, and the resistance is connected by copper tape.
Features:
Comply with RoHS standard
PVC insulated lead wires series Operating temperature range: -40℃~250℃
R25=100kΩ
B25/85=3990k
Application:
Induction cooker
Electrical Specification:
| Rec. at 25℃(kΩ)+A2:G25+A2:G25 | Beta value |
(In air) Pmax(mW) |
δ(mW/℃) | Thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | Approx.60 | Max.3.0 | Max.20 | -40℃~125℃ | 8~100 |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |
