| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JINGPU SENSOR |
| Certification: | ISO9001, RoHS |
| Model Number: | MFT |
| Minimum Order Quantity: | 500 Pieces |
| Price: | To be negotiated |
| Packaging Details: | Standard Packaging |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Probe: | TPE Plastic Probe | Color: | Black |
|---|---|---|---|
| Operating Temperature Range: | -40℃~125℃ | Application: | Vehicle Refrigerators, AC, Indoor Temperature Measurement |
| Cable: | XLPE / PVC Black Cable | Customization: | Available |
| High Light: | PVC Cable ntc probe temperature sensor,TPE Plastic ntc probe temperature sensor,ISO9001 ntc temp probe |
||

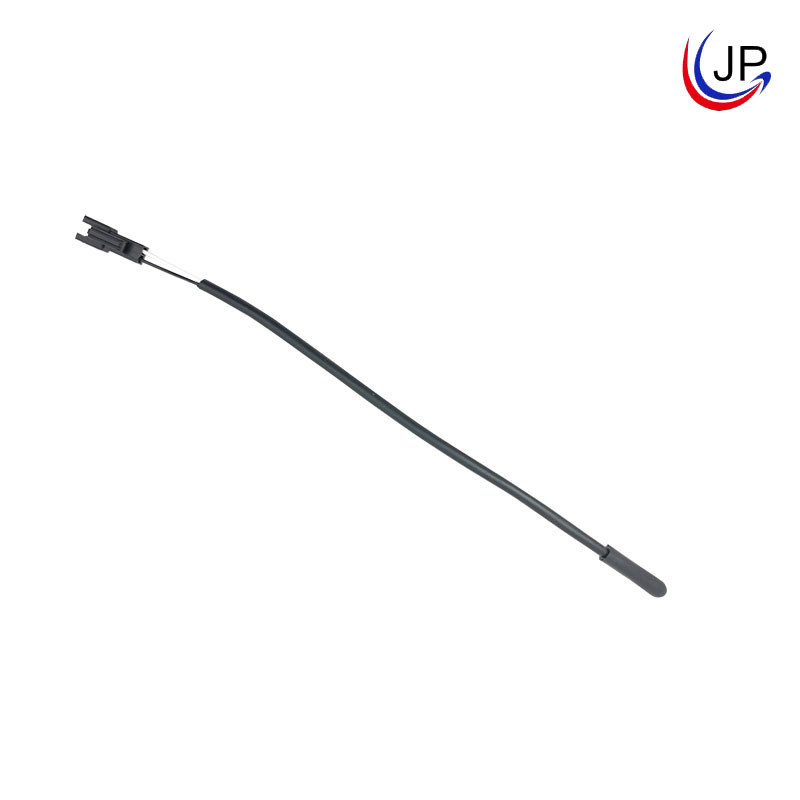

TPE Plastic XLPE PVC Cable NTC Probe Temperature Sensor
Product Description:
This product is mainly used for temperature measurement of car refrigerators. The probe is TPE injection molding, and the wire tail can be equipped with corresponding connectors according to customer requirements.
Features:
Comply with RoHS standard
Operating temperature range: -40℃~125℃
Easy to install
Stable
Application:
Vehicle refrigerators, AC, Indoor Temperature Measurement
Structure and Dimensions:(unit: mm)
Electrical Specification:
| Rec. at 25℃(kΩ) | Beta value | (In air) Pmax(mW) | δ(mW/℃) | Thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | Approx.60 | Max.3.0 | Max.20 | -40℃~125℃ | 8~100 |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |

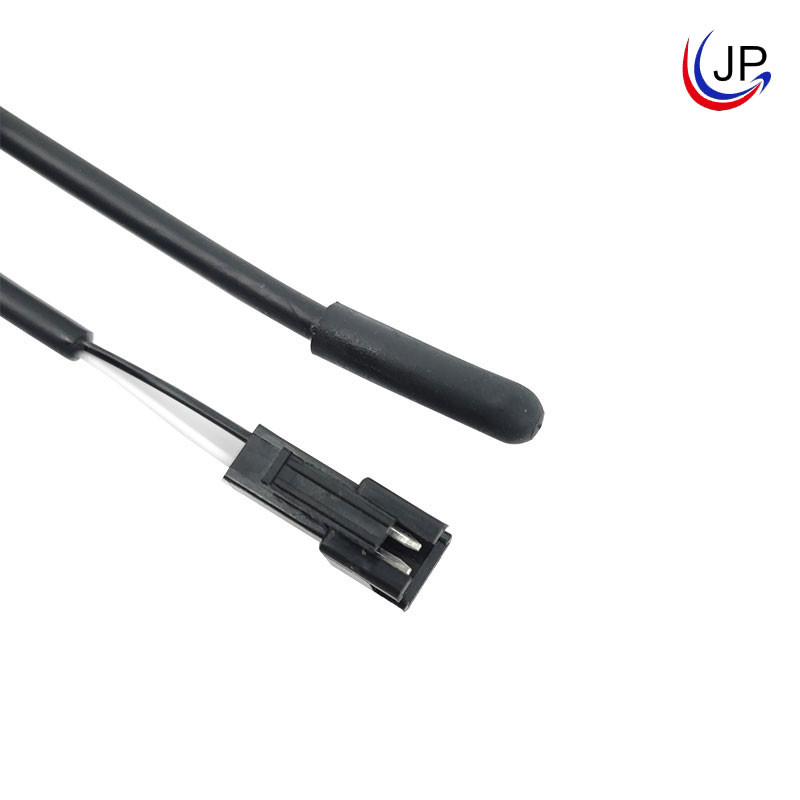

Other Product Images:
