| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | ISO9001, RoHS |
| Model Number: | MFT |
| Minimum Order Quantity: | 500 Pieces |
| Price: | To be negotiated |
| Packaging Details: | Standard Packaging |
| Delivery Time: | 1-2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20k Pieces per Month |
| Resistance: | 10KΩ | Beta Value: | 3435 |
|---|---|---|---|
| Accuracy: | ±1% | Chip: | NTC Thermistor |
| Wire: | PVC Insulated Wire | Length Of Wire: | 1.5m |
| Measurement Temperature Range: | -40~120ºC | Probe: | Stainless Steel 304 Or 316 |
| High Light: | Accuracy 1% NTC Thermistor Temperature Sensor,ISO9001 10k Thermistor Temperature Sensor,Thermistor Temperature Sensor 3435K |
||

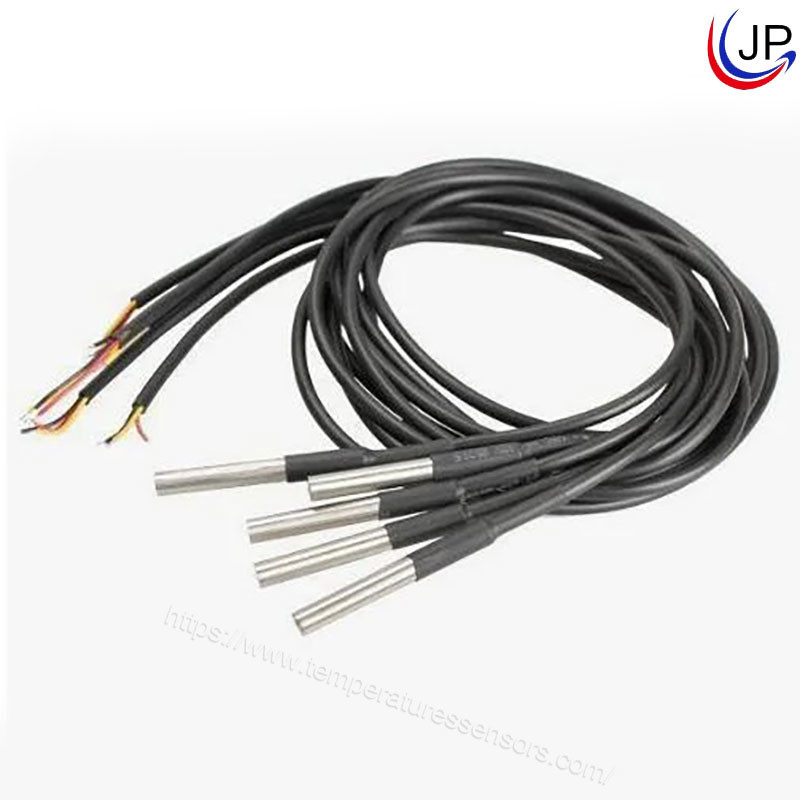

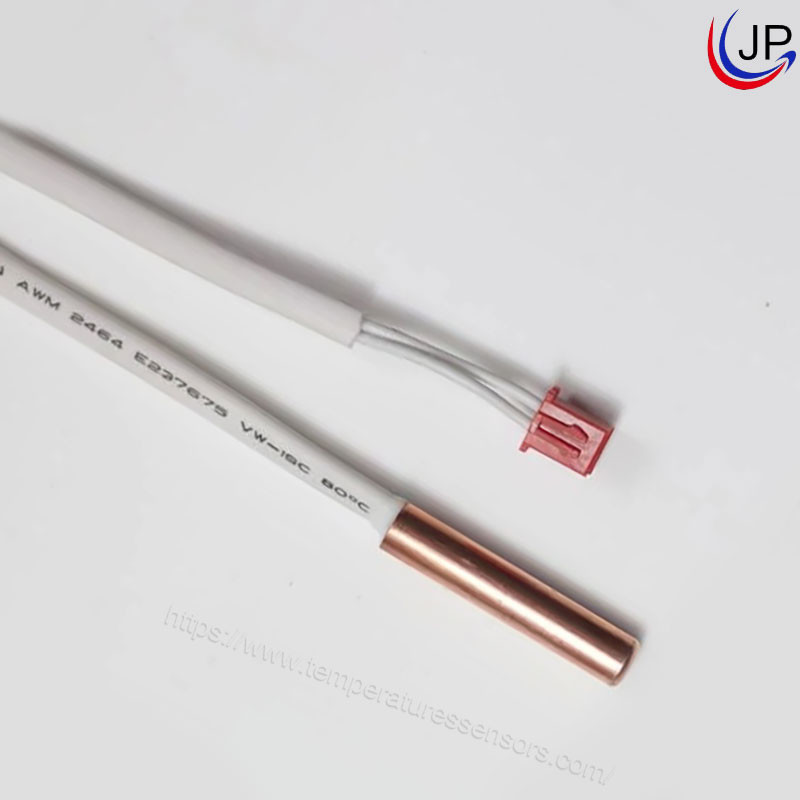

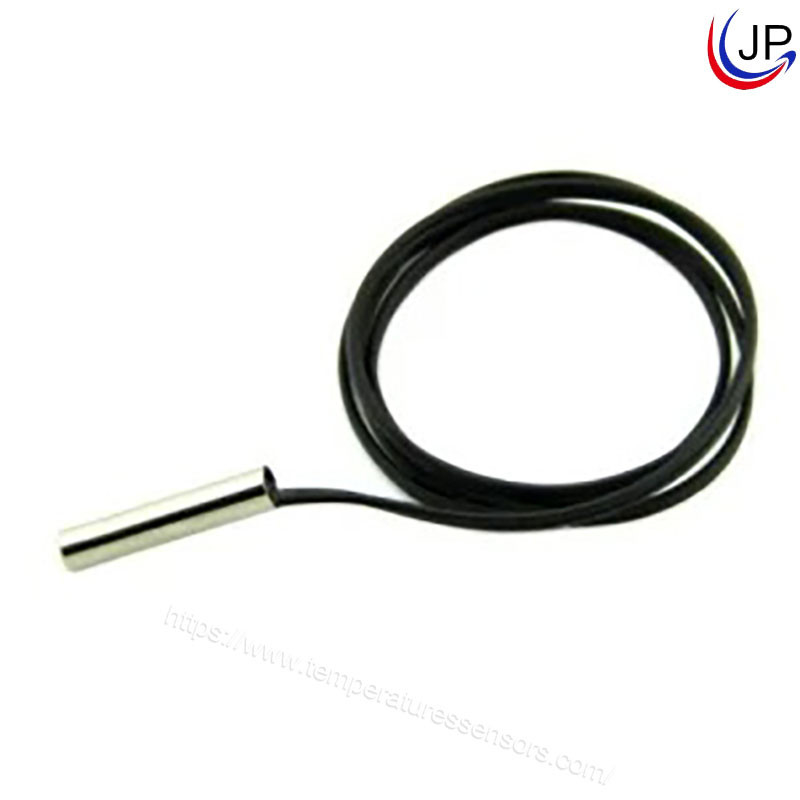

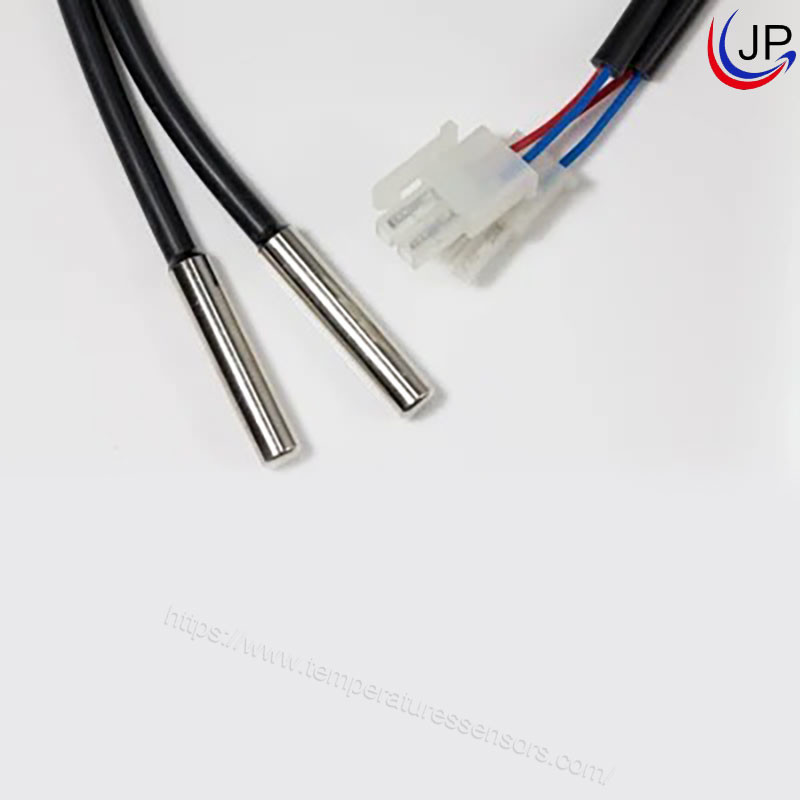

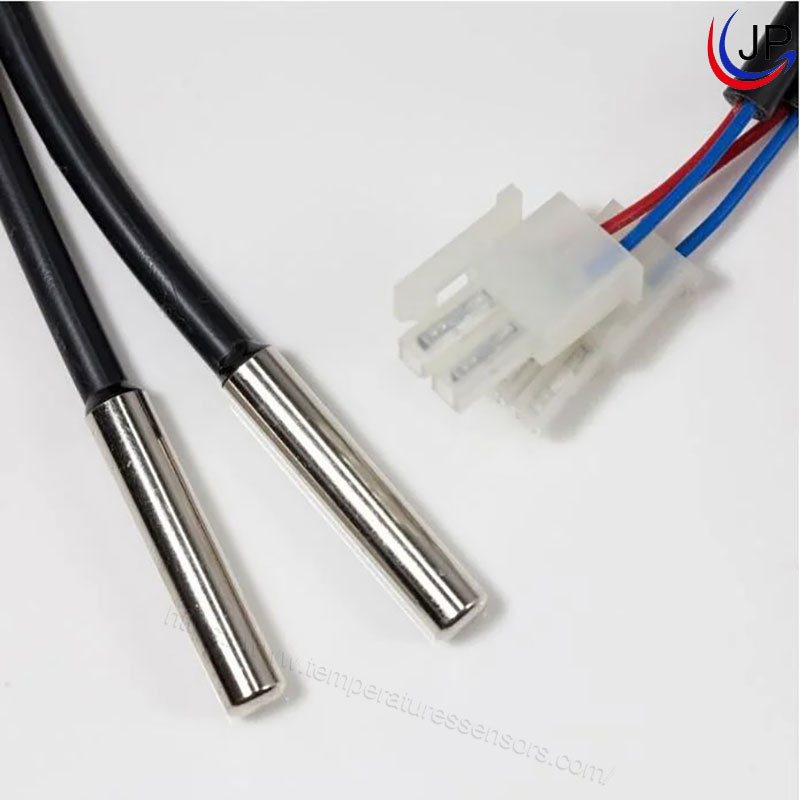

10K 3435K Accuracy 1% Ntc Thermistor Temperature Sensor
Brief Inroduction:
This product is 10K 1% B=3435 which is consisted of NTC thermistor, PVC insulated wire, connector, and temperature probe.
| Product name | NTC Thermistor Accuracy Temperature Sensor 10K 1% B=3435 | Temperature probe | waterproof |
| Wire NO. | UL2651 22AWGX2Core | Outer Sheath | stainless steel |
| Cable materials | PVC, PTFE, Silicon latex Fiberglass | Length of wire | 1.5 meters |
| Measuring Range | --40~120ºC | Size of probe | 4*30MM |
| Probe materials | Stainless steel 304 or 316 | Type NTC | 10K±1% |
| Application | Temperature meansurement | B-constant | 3435K -/+ 1% |
Features:
Operating temperature range: -40℃~+120℃
Waterproof
RoHS compliant
High stability and reliability
Suitable for high temperature, high humidity application
Small size, lightweight, suitable for automatic plug-in installation and large-scale production
Wide resistance range;
Rapid response, high sensitivity
Application:
Electromagnetic oven, electrical heater, water heater etc.
Temperature measurement
Temperature controller
