| Place of Origin: | Hefei, Anhui, China |
|---|---|
| Brand Name: | Jingpu Brand |
| Certification: | CE,ROHS,ISO |
| Model Number: | MF5A-3 |
| Minimum Order Quantity: | 1000 |
| Price: | USD 0.1-5 /PCS |
| Packaging Details: | Carton packing |
| Delivery Time: | 2-7days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Way To Install: | Inserting | Sensing Way: | Resistence |
|---|---|---|---|
| Output Signal Type: | Analog Type | Material: | Ceramics |
| Measuring The Dielectric: | Temperature | IP Code: | IP64 |
| Transport Package: | Carton Packing | Appearance: | Colorful |
| Warranty: | 2 Years | After-sale Service: | Quality Assurance |
| Customization: | Yes | Operating Temperature: | -40℃~150℃ |
| Resistence Value: | Custom | B Value: | Custom |
| Shipping: | Shipping, Air, Or Express | Wire: | PVC, , Enamel Insulation |
| Highlight: | Insulated Wire NTC Thermistor,NTC Chip Thermistor Versatile,Enamel Insulation Wire NTC Thermistor |
||
Functional and Versatile Insulated Wire NTC Thermistor
Brief Instruction:
Insulated wire NTC thermistor be consist of the insulated wire ( cable & PVC cable), NTC chip and epoxy resin. Simple, functional and accurate. The optional resistance value range 0.3kΩ to 2000kΩ, and beta value range 2500K to 4500K. These insulated wire NTC thermistor be widely used for home appliances, automotive, medical equipment, power tool etc.
Features:
Comply for RoHS standard
Miniature designed
Interchangeability
FEP insulated lead wires series
Operating temperature range: -20℃~105℃
PTFE insulated lead wires series
Operating temperature range: -40℃~150℃
Proven stability and reliability
Rapid time response
Custom probe assemblies available
Application:
Temperature sensing, control and compensation
Tight tolerance instrumentation
General instrumentation applications ( e.g. home appliance, automotive, power tool)
Part Number Code:
Structure and Dimensions:
Electrical specification:
| Rec.at 25℃(kΩ) | Beta value | (In air)Pmax(mW) | δ(mW/℃) | thermaltime constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | Approx.60 | Max.2.5 | Max.20 | -40℃~150℃ | 30~3000 |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |

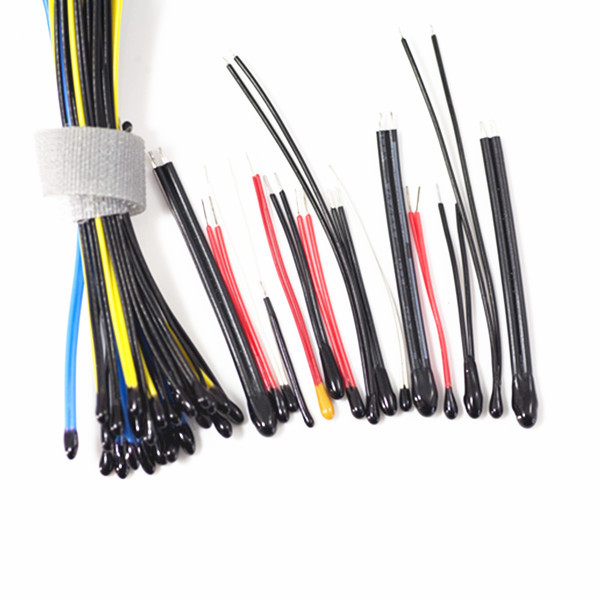

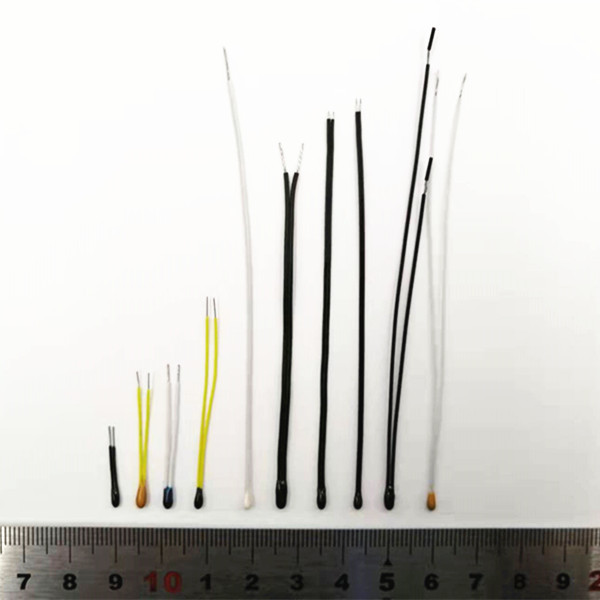

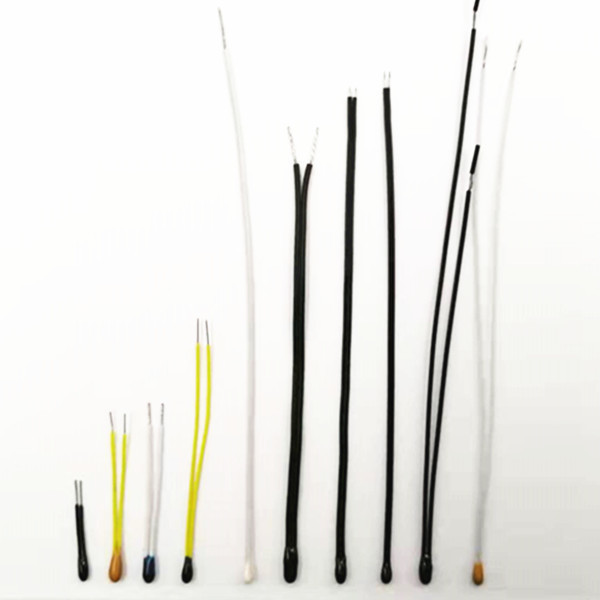

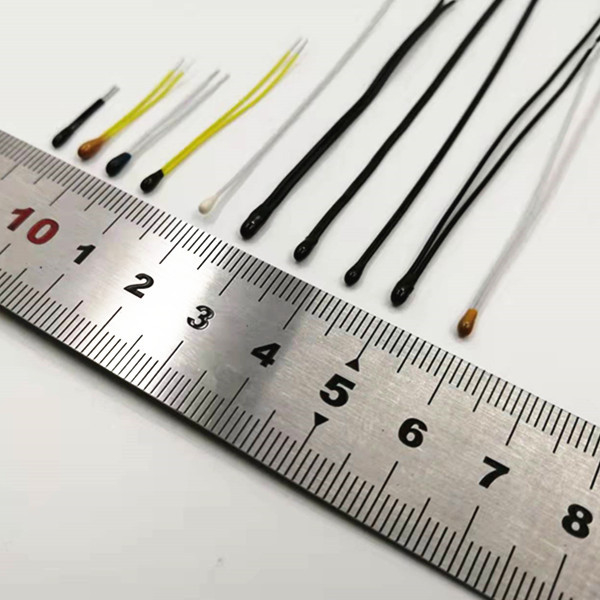

Product picture:
Standard packing (inner packing): 500pcs/polybag
Operation Notice
1.Application:Temperature measure and control；
2.Avoid excessive heat shock, the hot air blow should beat least 30mm to the probe in case heat shrink protection tube need to be attached.
3.Storage Temperature -10℃～40℃,≤75%RH；
Avoid in a corrosive gas and sunlit environment;
After opening the package, it needs to be sealed again.
