| Place of Origin: | Hefei, Anhui, China |
|---|---|
| Brand Name: | Jingpu Brand |
| Certification: | CE,ROHS,ISO9001,ISO13485,UL |
| Model Number: | MF5A-7 |
| Minimum Order Quantity: | 1000 |
| Price: | USD 0.1-5 /PCS |
| Packaging Details: | Carton packing |
| Delivery Time: | 2-7days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Way To Install: | Inserting | Sensing Way: | Resistence |
|---|---|---|---|
| Output Signal Type: | Analog Type | Material: | Ceramics |
| Measuring The Dielectric: | Temperature | IP Code: | IP64 |
| Transport Package: | Carton Packing | Appearance: | Yellow |
| Warranty: | 2 Years | After-sale Service: | Quality Assurance |
| Chip: | NTC Thermistor | Customization: | Yes |
| Operating Temperature: | Normal Or Low Temperature | Resistence Value: | Custom |
| B Value: | Custom | Shipping: | Shipping, Air, Or Express |
| Wire: | PVC, , Enamel Insulation | Free Sample: | Yes |
| High Light: | Plastic Housing Type Ntc Thermistor,Plastic Housing NTC Chip Thermistor,NTC Chip Thermistor IP64 |
||
Plastic Housing Type Ntc Thermistor For Medical Equipment And Health Monitor
Brief Instruction:
MF5A-7 plastic housing type NTC thermistor, manufactured by Hefei Jingpu Sensor Technology Co.,Ltd, consist of NTC chip, HDPE/PP/PVC housing and the insulated wire (FEP/PVC/PVDF wire). The optional resistance value range from 0.3kΩ to 2000kΩ, and beta value range from 2500K to 4500K.
Features:
Comply for ROHS standard
High precision to ±0.1℃ from the temperature 25℃ to 45℃
Application:
Human body temperature measurement
Medical electric equipment
Skin / coelom / body temperature measurement
Adult / pediatric esophageal / rectal / air / skin temperature monitoring
Medical equipment, health monitor
Structure and Dimensions:
| Rec. at 25℃(kΩ) | Beta value | (In air)Pmax(mW) | δ(mW/℃) | thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | Approx.60 | Approx.2.5 | Approx.20 | Normal or low temperature | 30-1000 |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |

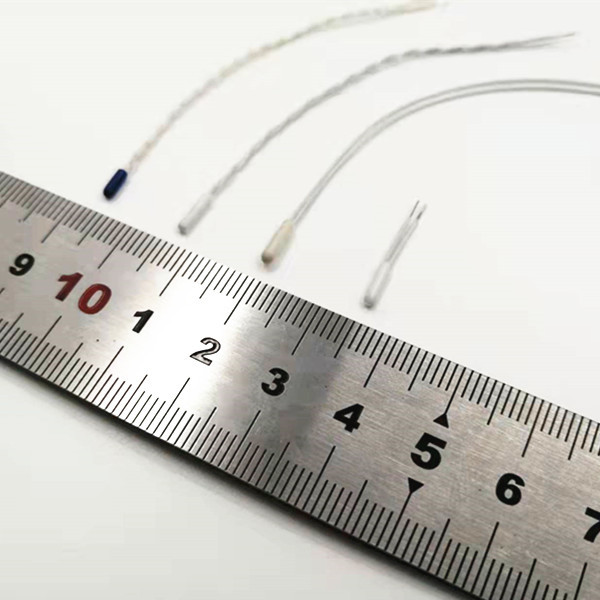

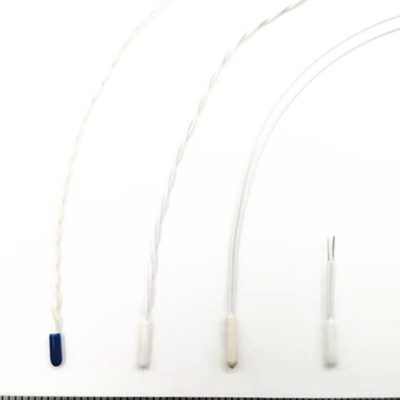

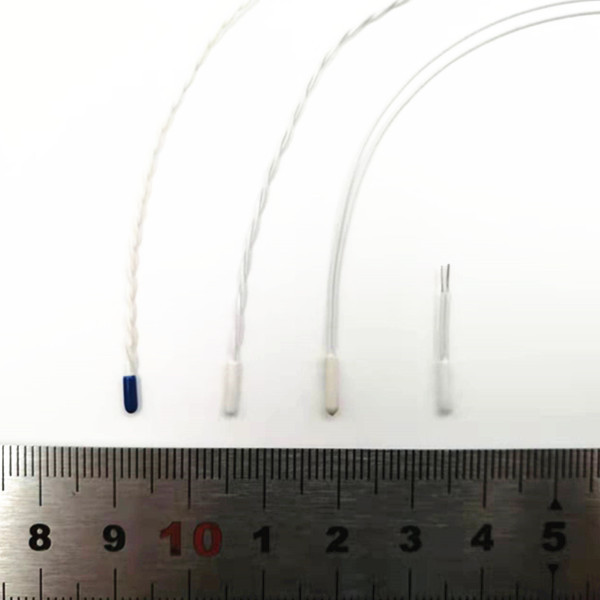

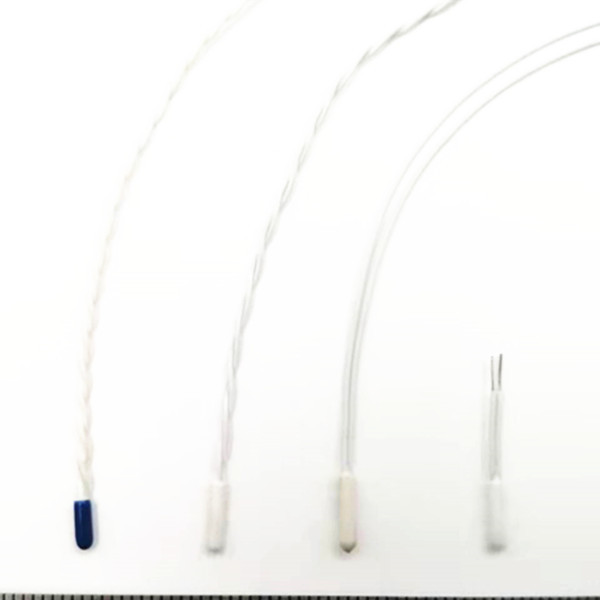

Product picture:
Standard packing (inner packing): 100~500pcs/polybag
