| Place of Origin: | Hefei, Anhui, China |
|---|---|
| Brand Name: | Jingpu Brand |
| Certification: | CE,ROHS,ISO |
| Model Number: | NTC Thermal Chips |
| Minimum Order Quantity: | 1000 |
| Price: | USD 0.1-5 /PCS |
| Packaging Details: | Carton packing |
| Delivery Time: | 2-7days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Way To Install: | Inserting | Sensing Way: | Resistence |
|---|---|---|---|
| Output Signal Type: | Analog Type | Material: | Ceramics |
| Measuring The Dielectric: | Temperature | IP Code: | IP64 |
| Transport Package: | Carton Packing | Appearance: | Silver |
| Warranty: | 2 Years | After-sale Service: | Quality Assurance |
| Customization: | Yes | Operating Temperature: | / |
| Resistence Value: | Custom | B Value: | Custom |
| Shipping: | Shipping, Air, Or Express | Wire: | PVC, , Enamel Insulation |
| High Light: | Ntc Thermal Chip,IP64 Thermal Chip,NTC Chip Thermistor IP 64 |
||
Ntc Thermal Chip For Ntc Thermal Resistor And Ntc Temperature Sensor
Application:
NTC Thermal chips are usually built as metal oxides ceramic sinters. NTC thermal chip material is made of high-purity transition metal nitrates of Mn, Cu, Ni and other elements through co-precipitation, powdering, isostatic pressing and sintering at a high temperature of 1200~1400℃,combined with advanced semiconductor cutting, Dicing process, glass sealing, epoxy process to make various types of NTC thermistors, complete product categories, high precision, and good stability. Resistance range 0.5~2000kΩ, and beta value range 2500~4500k.
Features:
Comply for ROHS standard
Silver electrode
Small dimension
Application:
The thermal chip mainly apply for NTC thermal resistor and NTC temperature sensor assembly.
Part Number Code:
Structure and Dimensions:
Electrical specification:
| Rec. at 25℃(kΩ) | Beta value | (In air)Pmax(mW) | δ(mW/℃) | Thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
Electrical Specification: |
| 1 | B25/85=3435 | / | / | / | / | / | |
| 1.5 | B25/50=3850 | ||||||
| 1.5 | B25/50=3935 | ||||||
| 2 | B25/85=3550 | ||||||
| 2 | B25/85=3935 | ||||||
| 2.08 | B25/85=3580 | ||||||
| 2.2 | B25/50=3935 | ||||||
| 3 | B25/50=3950 | ||||||
| 5 | B25/50=3470 | ||||||
| 5 | B25/50=3950 | ||||||
| 8 | B25/100=3988 | ||||||
| 10 | B25/85=3435 | ||||||
| 10 | B25/50=3470 | ||||||
| 10 | B25/50=3935 | ||||||
| 10 | B25/50=3950 | ||||||
| 20 | B25/50=3950 | ||||||
| 47 | B25/50=3950 | ||||||
| 50 | B25/50=3950 | ||||||
| 50 | B25/50=4200 | ||||||
| 100 | B25/50=4200 | ||||||
| 200 | B25/50=4200 | ||||||
| 500 | B25/50=4450 | ||||||
| 1000 | B25/85=4600 |

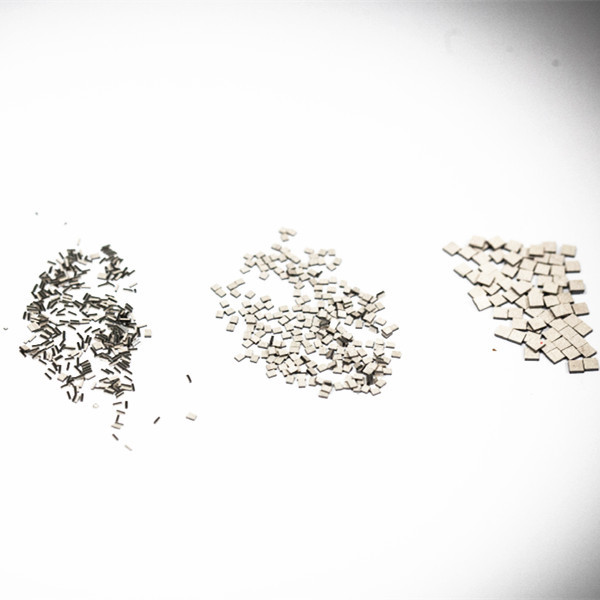

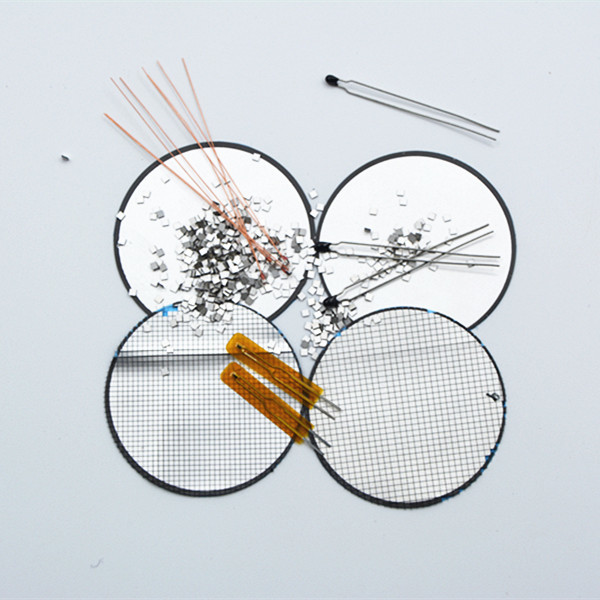

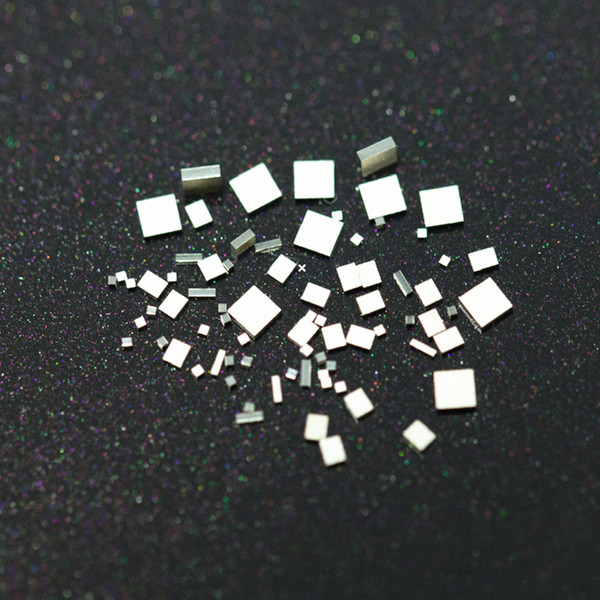

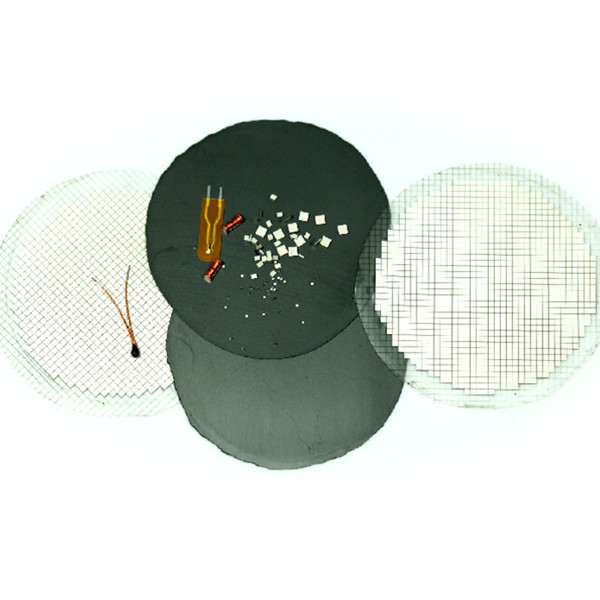

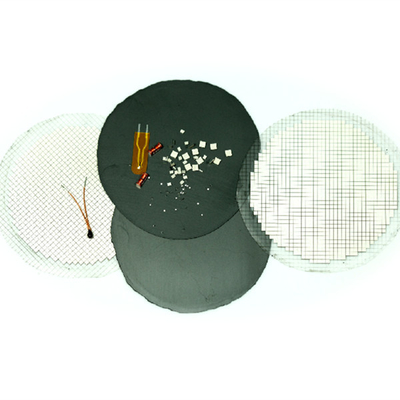

Product picture:
