| Place of Origin: | Hefei, Anhui, China |
|---|---|
| Brand Name: | Jingpu Brand |
| Certification: | CE,ROHS,ISO |
| Model Number: | MF5A-1 |
| Minimum Order Quantity: | 500 |
| Price: | USD 0.1-5 /PCS |
| Packaging Details: | Carton packing |
| Delivery Time: | 2-7days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Way To Install: | Inserting | Sensing Way: | Resistence |
|---|---|---|---|
| Output Signal Type: | Analog Type | Material: | Epoxy And Metal |
| Measuring The Dielectric: | Temperature | IP Code: | IP64 |
| Transport Package: | Carton Packing | Appearance: | Black |
| Warranty: | 12~24 Months | After-sale Service: | Quality Assurance |
| Customization: | Yes | Operating Temperature: | / |
| Resistence Value: | Custom | B Value: | Custom |
| Shipping: | Shipping, Air, Or Express | Wire: | PVC/XPLE/FEP/PTFE |
| High Light: | Fire Fighting Equipment NTC Thermistor,4200k NTC Thermistor Sensor,NTC Thermistor 4200k |
||
Brief Instruction:

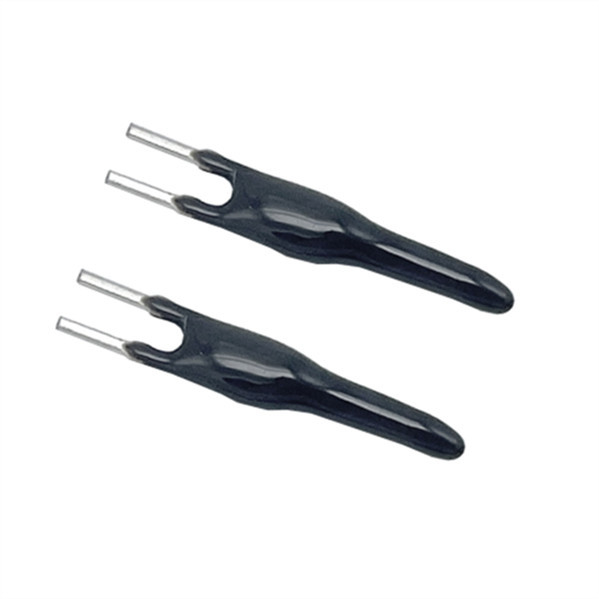

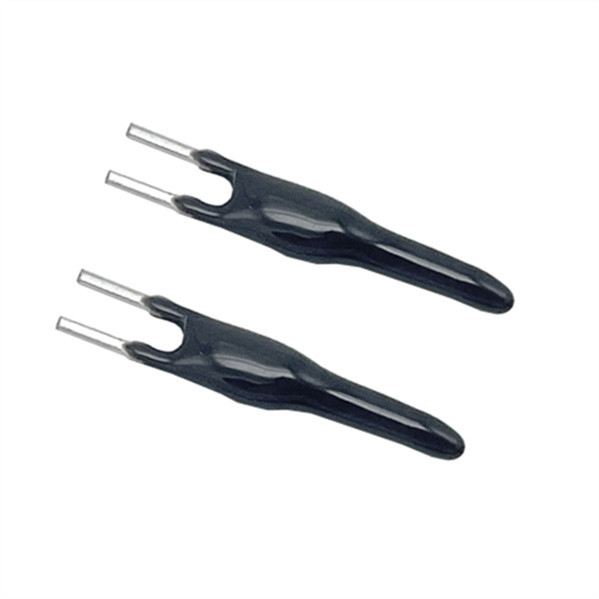

The NTC thermistor is made of NTC element, epoxy resin and bare wire. It’s manufactured from Hefei Jingpu Sensor Technology Co.,Ltd.
Features:
Small Epoxy bead
Good stability, fast response
Operating temperature range: -40℃~125℃
R62℃=20.92kΩ±3%,B25/50=4200k±2%
Application:
Fire-fighting equipment
Part Number Code:
Structure and Dimensions:
Electrical specification:
| Product Specification | Rec. at T℃(KΩ) | Beta value | (In air) Pmax(mW) |
δ (mW/℃) |
thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| A1B212□4200A□□□□L19 | R62=20.92 | B25/85=4200 | Approx.3.5 | Approx.0.7 | Max.5.0 | -40~125 | 19 |
| A1A104□4132B□□□□L17 | 100 | B25/85=4132 | 17 | ||||
| A1C104□4132B□□□□L23 | 100 | B25/85=4132 | 23 | ||||
| A1B332□3970F□□□□L25 | R100=3.3 | B25/50=3970 | 26 | ||||
Use stainless steel probe
Using internal sensors, using high-temperature electrical tape,
Avoid short circuit, product quality is more stable.
High precision measurement
Use internal sensors and use high-temperature electrical tape.
Stable performance
It performs well in high and low temperature environment and humid and hot environment
Support for custom
Our company can customize a variety of products to meet customer needs, details please email consultation!
