| Place of Origin: | Hefei, Anhui, China |
|---|---|
| Brand Name: | Jingpu Brand |
| Certification: | CE,ROHS,ISO |
| Model Number: | MFP |
| Minimum Order Quantity: | 500 |
| Price: | USD 0.1-5 /PCS |
| Packaging Details: | Carton packing |
| Delivery Time: | 2-7days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Way To Install: | Inserting | Sensing Way: | Resistence |
|---|---|---|---|
| Output Signal Type: | Analog Type | Material: | Epoxy And Metal |
| Measuring The Dielectric: | Temperature | IP Code: | IP64 |
| Transport Package: | Carton Packing | Appearance: | Black |
| Warranty: | 12~24 Months | After-sale Service: | Quality Assurance |
| Customization: | Yes | Operating Temperature: | / |
| Resistence Value: | Custom | B Value: | Custom |
| Shipping: | Shipping, Air, Or Express | Wire: | PVC/XPLE/FEP/PTFE |
| High Light: | Ev Battery Ntc Temperature Sensor,EV Battery Temperature Sensor,Hev Battery Ntc Temperature Sensor |
||
Brief Instruction:
The item is EV battery temperature sensor. Typical application include battery control system in EV car. EV battery temperature sensor consists of an NTC chip thermistor mounted in an Aluminum probe (AL Probe), with insulated flexible wire (XLPE insulated wire UL4411 125℃ & UL4413 150℃)and terminals. One standard resistance value and beta value: R25℃= 10kΩ and B25/85=3435k.
Features:
Comply for ROHS standard
Operating temperature range: -40℃~125℃(UL4411 24AWG)
Good and long-term stability
Sensing element electrically isolated from tag
Aluminum probe
AC 1500V 1mA 1S
Application:
EV/HEV Bus Bars
Battery Covers
Power Distribution
Structure and Dimensions:
| Symbol | L1 | B | L | E | D | L2 | d |
| RNB5.5-5尺寸(mm) | 500±30 | 6.0 | 18.5 | 7.0 | 5.5 | 5±1 | 0.8±0.2 |
| NO. | Name | Material Specification | QTY. | Remarks |
| 1 | Chip | NTC Thermal Chip | 1 | -- |
| 2 | Shell | AL 5.5*6.0*18.5 | 1 | / |
| 3 | Encapsulation | Epoxy Resin | / | Black |
| 4 | Cable | UL4411 24AWG*2C 125℃ | 1 | Black |

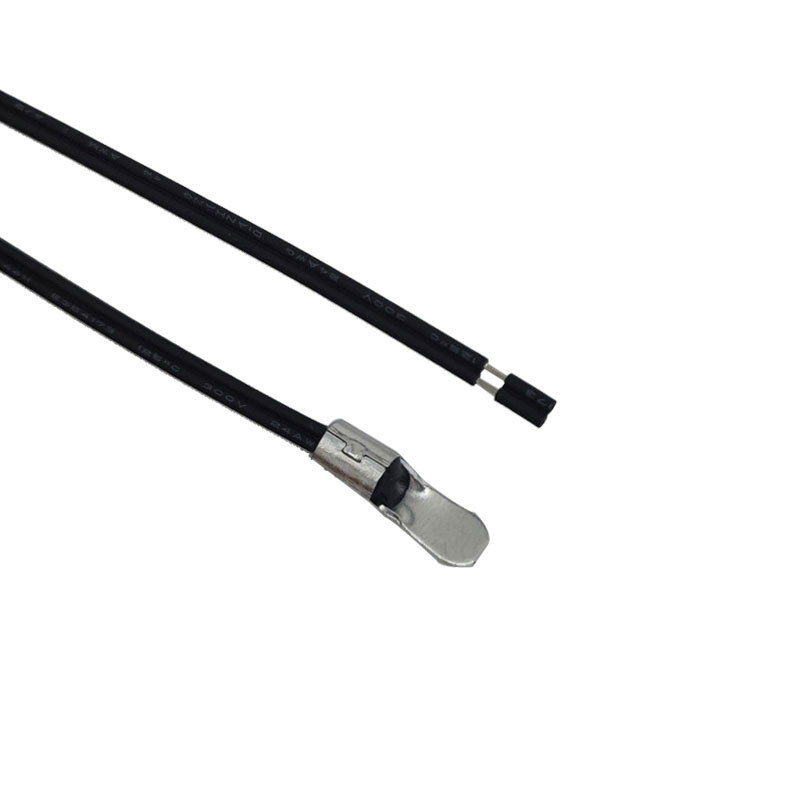

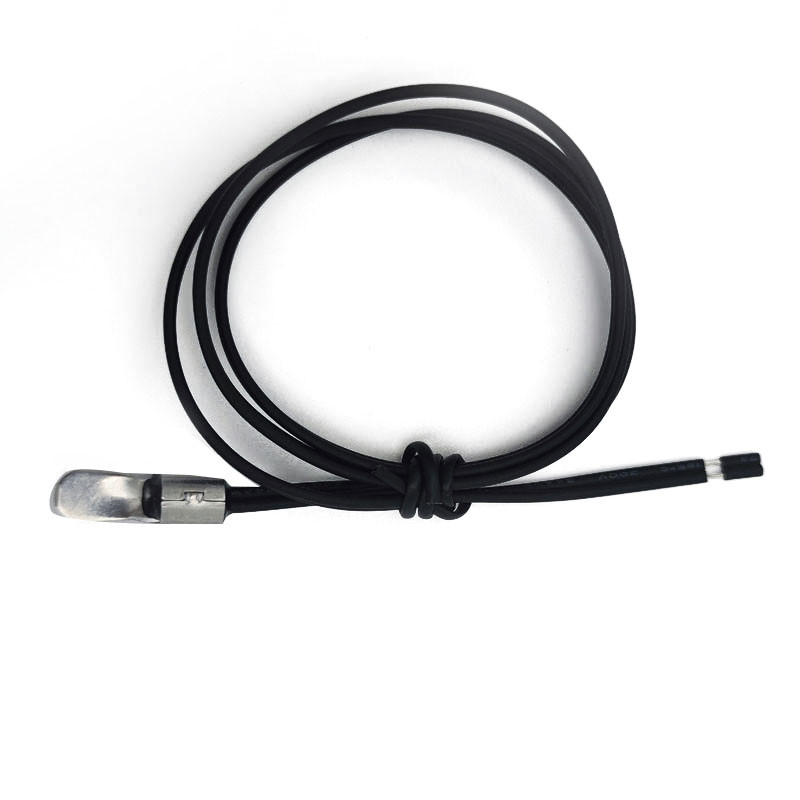

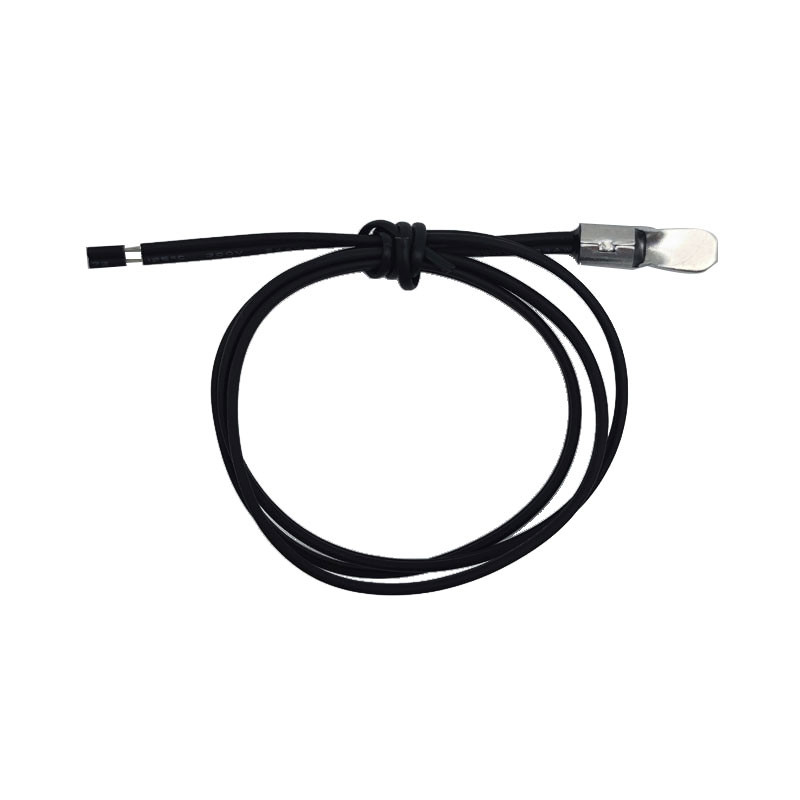

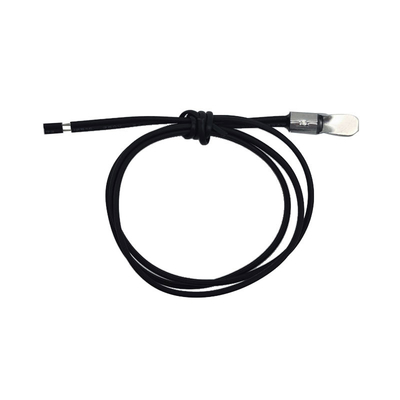

Product picture:
