| Place of Origin: | Hefei, Anhui, China |
|---|---|
| Brand Name: | Jingpu Brand |
| Certification: | CE,ROHS,ISO9001,ISO13485,UL |
| Model Number: | NTC thermal chip |
| Minimum Order Quantity: | 1000 |
| Price: | USD 0.1-5 /PCS |
| Packaging Details: | Carton packing |
| Delivery Time: | 2-7days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Way To Install: | Inserting | Sensing Way: | Resistence |
|---|---|---|---|
| Output Signal Type: | Analog Type | Material: | Ceramics |
| Measuring The Dielectric: | Temperature | IP Code: | IP64 |
| Transport Package: | Carton Packing | Appearance: | Miniature |
| Warranty: | 2 Years | After-sale Service: | Quality Assurance |
| Chip: | NTC Thermistor | Customization: | Yes |
| Operating Temperature: | Normal Or Low Temperature | Resistence Value: | Custom |
| B Value: | Custom | Shipping: | Shipping, Air, Or Express |
| Wire: | PVC, , Enamel Insulation | Free Sample: | Yes |
| High Light: | Ntc Thermal Chip For Thermistor,Temperature Sensor Ntc Thermal Chip,10kohm NTC Chip Thermistor |
||
Ntc Thermal Chip For Thermistor And Temperature Sensor 10kohm 3435k
Brief Intro:
10KΩ 3435k NTC Thermal chip is widely used in power tools, batteries, new energy vehicles, equipment testing, etc. The 10KΩ3435k chip produced by our company can be divided into the ±1%,±2%,±3%,±5% according to resistance precision.
Features:
Comply for RoHS standard
Silver electrode
Small dimension
Good stability
Welding resistance
Application:
Used for processing NTC thermistor and temperature sensor
Part Number Code:
Structure and Dimensions:
Electrical specification:
| Rec. at 25℃(kΩ) | Beta value | (In air)Pmax(mW) | δ(mW/℃) | thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | / | / | / | / | / |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |

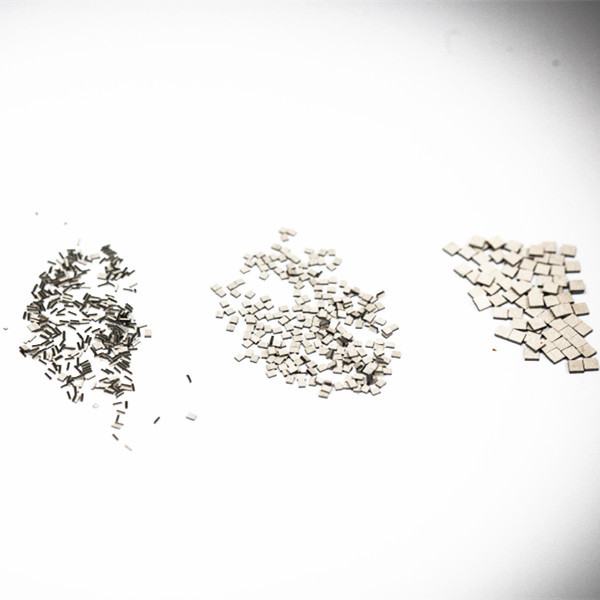

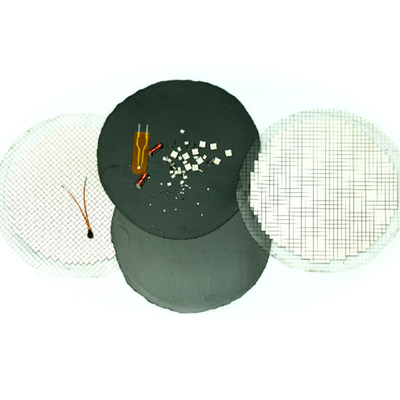

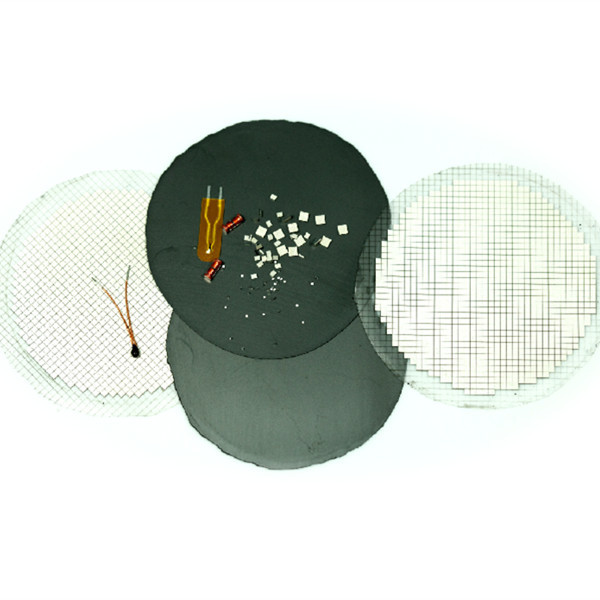

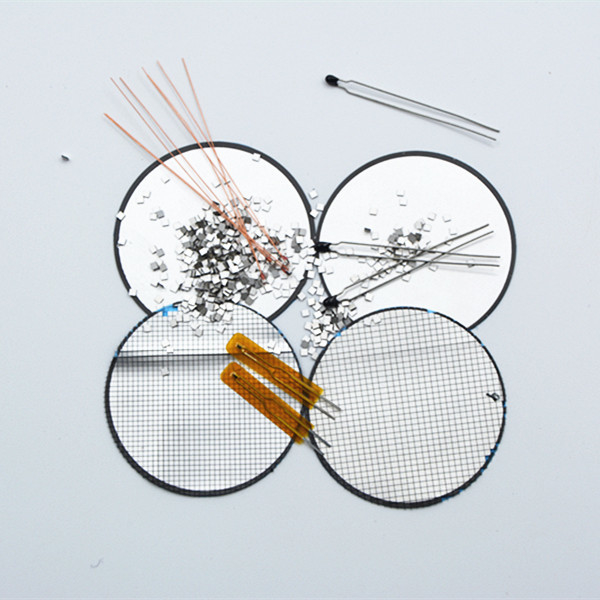

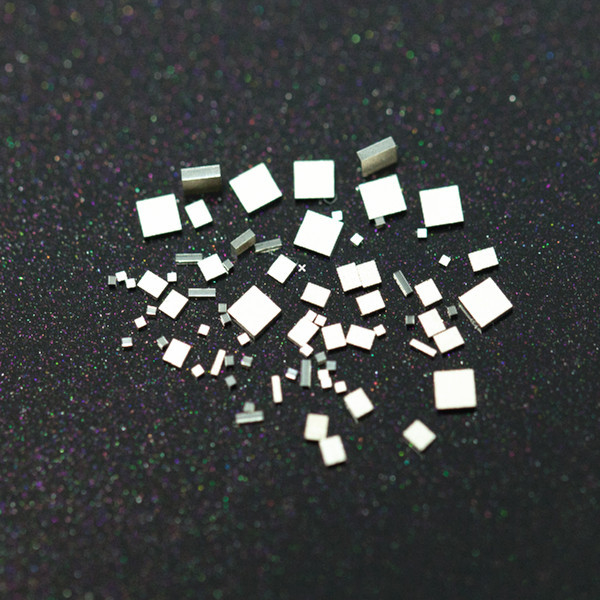

product picture:
NTC thermistor chip is a kind of high precision thermistor, which is usually used as an induction component. It has the characteristics of high measurement accuracy and good stability. As an advanced circuit integrated module, it can play a role according to the different needs of users. The instrument is compact, easy to install and portable, reliable performance; Using proprietary line, good linearity, strong load capacity, long transmission distance, strong anti-interference ability. It can be widely used for temperature measurement in the fields of meteorology, environment, laboratory, industry and agriculture.
