| Place of Origin: | Hefei, Anhui, China |
|---|---|
| Brand Name: | Jingpu Brand |
| Certification: | CE,ROHS,ISO9001,ISO13485,UL |
| Model Number: | Mf57 |
| Minimum Order Quantity: | 1000 |
| Price: | USD 0.1-5 /PCS |
| Packaging Details: | Carton packing |
| Delivery Time: | 2-7days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Way To Install: | Inserting | Sensing Way: | Resistence |
|---|---|---|---|
| Output Signal Type: | Analog Type | Material: | Ceramics |
| Measuring The Dielectric: | Temperature | IP Code: | IP64 |
| Transport Package: | Carton Packing | Appearance: | Miniature |
| Warranty: | 2 Years | After-sale Service: | Quality Assurance |
| Chip: | NTC Thermistor | Customization: | Yes |
| Operating Temperature: | Normal Or Low Temperature | Resistence Value: | Custom |
| B Value: | Custom | Shipping: | Shipping, Air, Or Express |
| Wire: | PVC, , Enamel Insulation | Free Sample: | Yes |
| High Light: | Glass Seal Ntc Temperature Sensor,Single End Ntc Temperature Sensor |
||
Ntc Single End Glass Seal Temperature Sensor For Auto Can Be Customized
Brief Instruction:
As one NTC thermistor sensor, glass coating NTC thermistor is made of glass bead, thinner dumet wire. Its feature is high temperature resistance. Glass coating NTC thermistor be widely apply for automotive electronic, home appliance, industrial device etc.
Features:
Glass encapsulation
High temperature resistant
Operating temperature range: -40℃~300℃
R25=100KΩ±1%,B25/50=3950±1%
Glass probe 1.3mm
The product has stable performance and can work for a long time.
Resistance value and B value have high precision and good consistency.
High sensitivity, quick reaction speed.
With good insulation sealing, bending resistance, high reliability.
It can be packaged according to the installation conditions for easy installation. Chip type or resistance type core components,
High precision of temperature measurement.
Application:
Home appliance
Automotive electronic
Industrial device etc
Part Number Code:
Structure and Dimensions:
Electrical specification:
| D | d | L1 | L |
| 1.3±0.2 | 0.2 | 2.0~3.0 | 50 |
| 1.6±0.2 | 0.2 | 3.0~4.0 | 50 |
| 2.0±0.2 | 0.3 | 3.0~4.0 | 50 |
| 2.3±0.2 | 0.3 | 3.0~4.0 | 50 |
| Product Specification | Rec.at 25℃(KΩ) | Beta value | (In air) Pmax(mW) | δ (mW/℃) | thermaltime constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| B7A202□3470A□L50 | 2 | B25/85=3470 | Approx.20 | Approx.0.75 | Max.10 | -40~300 | 50 |
| B7A202□3830A□L50 | 2 | B25/85=3977 | |||||
| B7A502□3950A□L50 | 5 | B25/85=3950 | |||||
| B7A103□3435B□L50 | 10 | B25/85=3435 | |||||
| B7A103□3950A□L50 | 10 | B25/50=3950 | |||||
| B7A503□3950A□L50 | 50 | B25/50=3950 | |||||
| B7A104□3950A□L50 | 100 | B25/50=3950 | |||||
| B7A104□4132B□L50 | 100 | B25/85=4132 | |||||
| B7A104□4200A□L50 | 100 | B25/50=4200 |

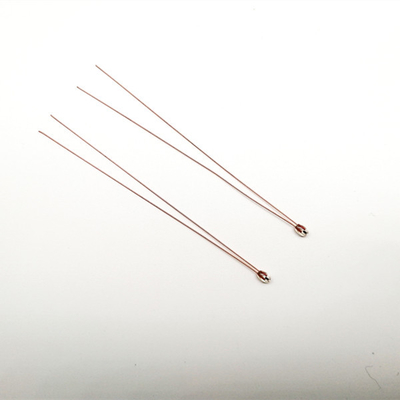

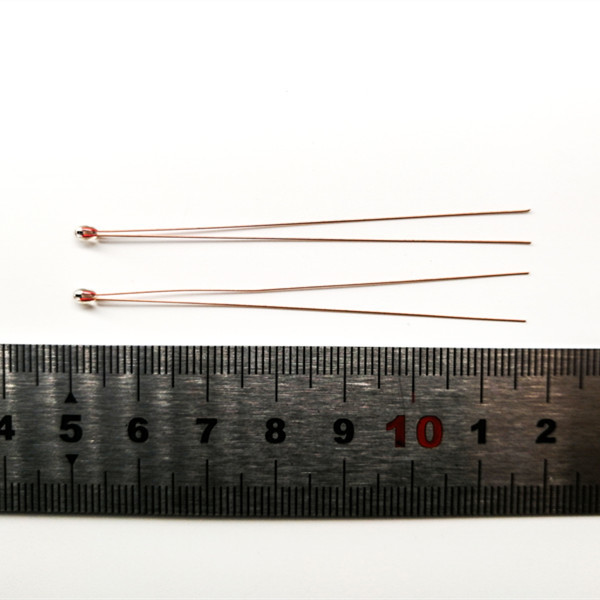

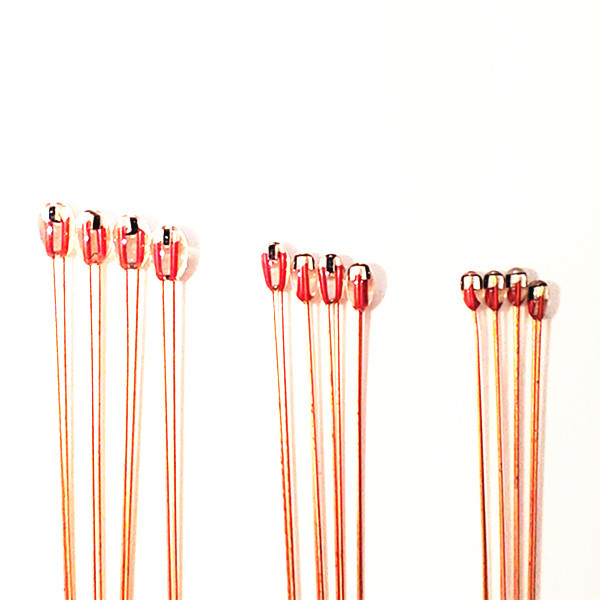

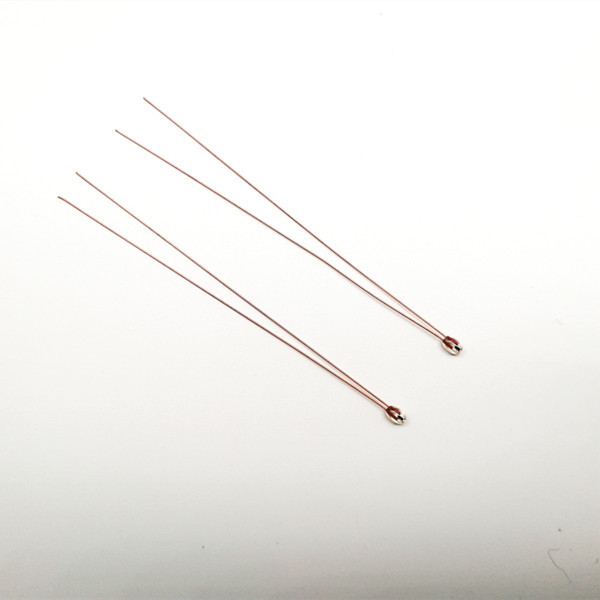

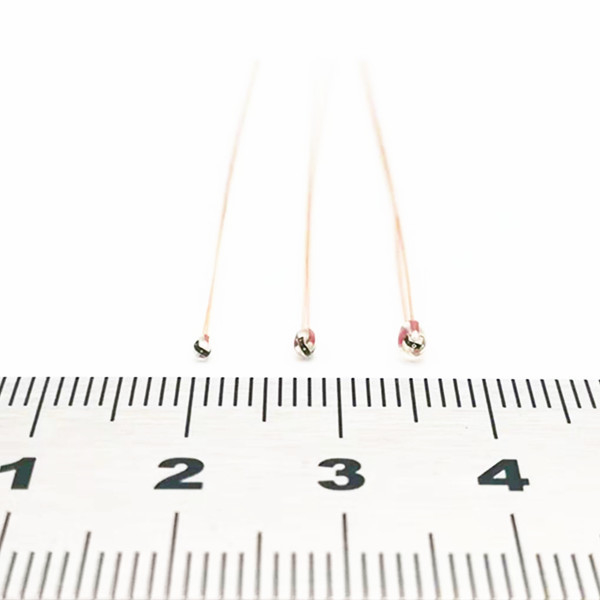

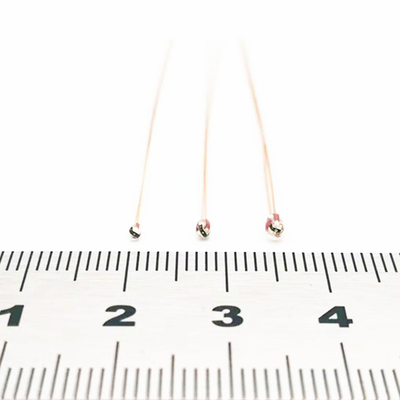

product picture/images:

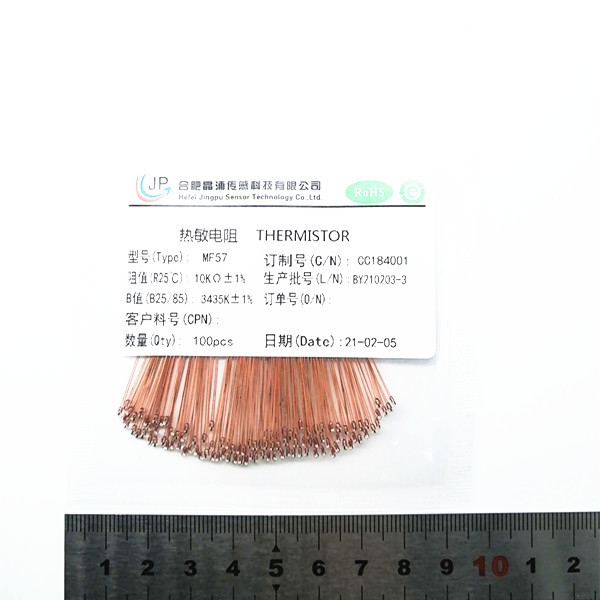

Standard packing (inner packing): 500pcs/polybag
Operation Notice
1. Application:Temperature measure and control；
2. The current flowing through the NTC is controlled within the Pmax range to avoid the measurement error caused by the self-heating of the component.
3. Avoid excessive heat shock,The hot air blow should beat least 30mm to the probe in case heat shrink protection tube need to be attached.
