| Place of Origin: | Hefei, Anhui, China |
|---|---|
| Brand Name: | Jingpu Brand |
| Certification: | CE,ROHS,ISO9001,ISO13485,UL |
| Model Number: | Mf58 |
| Minimum Order Quantity: | 1000 |
| Price: | USD 0.1-5 /PCS |
| Packaging Details: | Carton packing |
| Delivery Time: | 2-7days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Way To Install: | Inserting | Sensing Way: | Resistence |
|---|---|---|---|
| Output Signal Type: | Analog Type | Material: | Ceramics |
| Measuring The Dielectric: | Temperature | IP Code: | IP64 |
| Transport Package: | Carton Packing | Appearance: | Red |
| Warranty: | 2 Years | After-sale Service: | Quality Assurance |
| Chip: | NTC Thermistor | Customization: | Yes |
| Operating Temperature: | Normal Or Low Temperature | Resistence Value: | Custom |
| B Value: | Custom | Shipping: | Shipping, Air, Or Express |
| Wire: | PVC, , Enamel Insulation | Free Sample: | Yes |
| High Light: | Customized Ntc Thermistor,Diode Glass Coating Ntc Thermistor,Disinfection Cabinet Ntc Thermistor |
||
Customized Ntc Probe Diode Glass Coating Ntc Thermistor For Disinfection Cabinet
Brief Instruction:
MF58 series glass bead temperature sensor,As one NTC thermistor sensor, glass coating NTC thermistor is made of glass bead, thinner dumet wire. Its feature is high temperature resistance. Glass coating NTC thermistor be widely apply for automotic electronic, house appliances, industrial device etc.
Features:
Glass encapsulation
High temperature resistant
Operating temperature range: -40℃~250℃
R25=10KΩ±1%,B25/85=3435±1%
Application:
Home appliance
Part Number Code:
For example: B8103F3435BF: MF58 series NTC thermistor, R25℃=10kΩ±1%, B25/85=3435k±1%;
Structure and Dimensions:

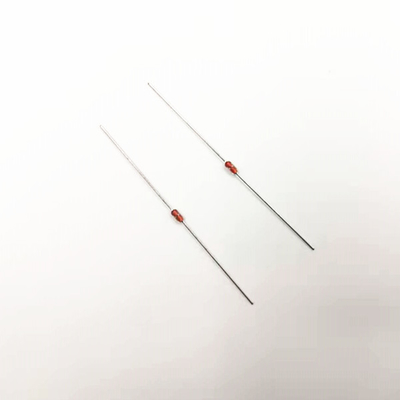

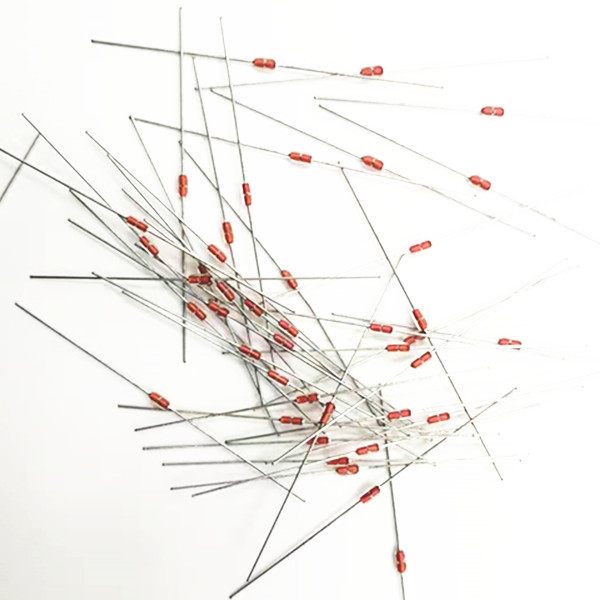

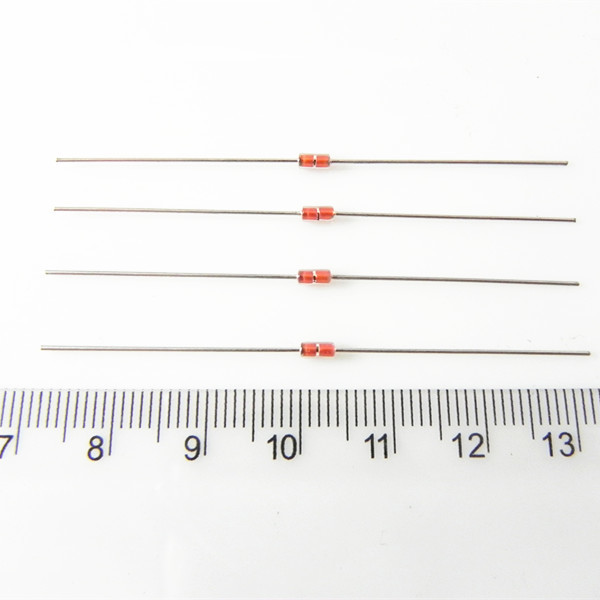

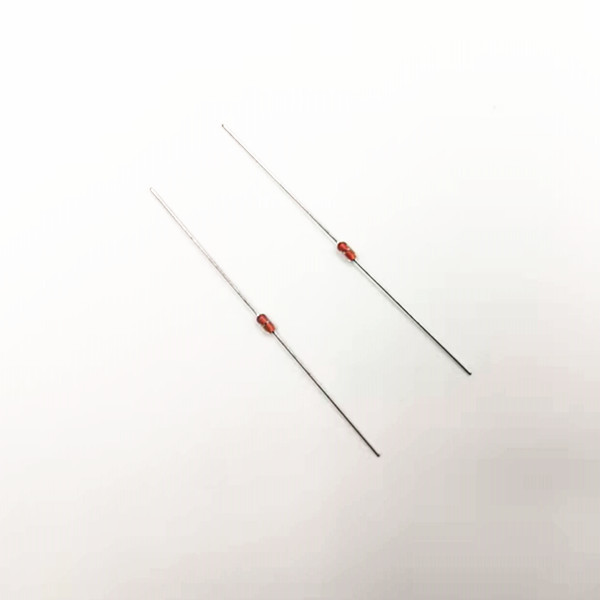

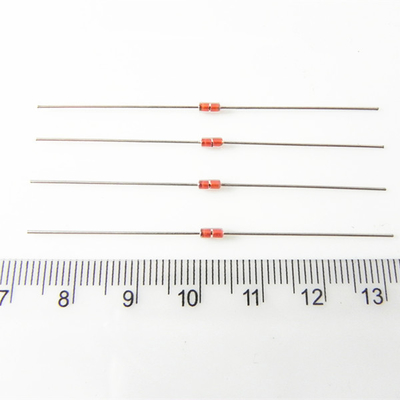

product picture/images:

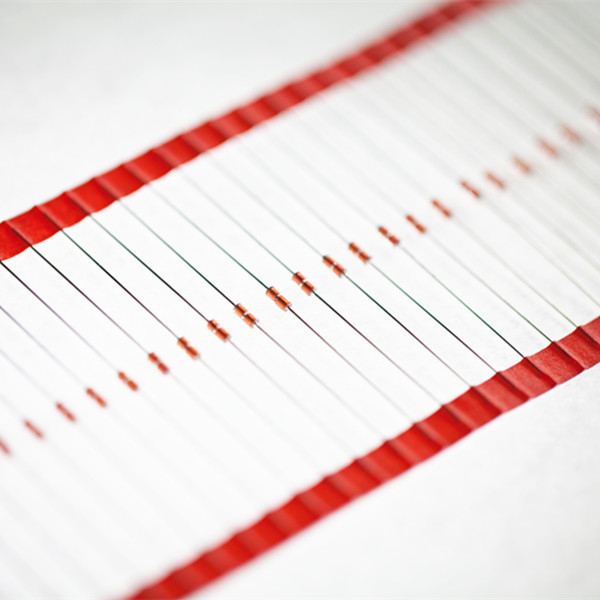

Standard packing (inner packing): 500pcs/polybag
Operation Notice
1. The current flowing through the NTC is controlled within the Pmax range to avoid the measurement error caused by the self-heating of the component.
2. Avoid excessive heat shock,The hot air blow should beat least 30mm to the probe in case heat shrink protection tube need to be attached.
[Summary of MF Features]
1. Contact temperature sensing, sensitive response range of 2~5S
2. The resistance value ranges from 1 to 500K
3. Meet RoHS requirements
4. Price difference
5. High reliability, can work stably for a long time
6. Minimum operating temperature -50℃/ maximum 300℃
【 Application field 】
1. Daily electronic supplies
2. Small appliances
3. Protection plate
and so on
[Customization Notice]
1. Resistance value of resistance (nominal resistance value of resistance at 25℃)
2. Precision of resistance (1%~5%)
3. B value coefficient of resistance
4. Length of wire material
5. Appearance size of head
6. Use temperature range
