| Place of Origin: | Hefei, Anhui, China |
|---|---|
| Brand Name: | Jingpu Brand |
| Certification: | CE,ROHS,ISO9001,ISO13485,UL |
| Model Number: | MF57 |
| Minimum Order Quantity: | 1000 |
| Price: | USD 0.1-5 /PCS |
| Packaging Details: | Carton packing |
| Delivery Time: | 2-7days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Way To Install: | Inserting | Sensing Way: | Resistence |
|---|---|---|---|
| Output Signal Type: | Analog Type | Material: | Ceramics |
| Measuring The Dielectric: | Temperature | IP Code: | IP64 |
| Transport Package: | Carton Packing | Appearance: | Red |
| Warranty: | 2 Years | After-sale Service: | Quality Assurance |
| Chip: | NTC Thermistor | Customization: | Yes |
| Operating Temperature: | Normal Or Low Temperature | Resistence Value: | Custom |
| B Value: | Custom | Shipping: | Shipping, Air, Or Express |
| Wire: | PVC, , Enamel Insulation | Free Sample: | Yes |
| High Light: | Glass Coating 1k Ntc Thermistor,Smart Farm 1k Ntc Thermistor,Automobile 1k Ntc Thermistor |
||
Glass Coating 1k Ntc Thermistor For Smart Farm And Automobile
Brief Instruction:
As one NTC thermistor sensor, glass coating NTC thermistor is made of glass bead, thinner dumet wire. Its feature is high temperature resistance. 1k NTC Thermistor for Industrial Device is widely apply for automotive electronic, home appliance, industrial device etc.
Features:
Glass encapsulation
High temperature resistant
Operating temperature range: -40℃~300℃
R200℃=1KΩ±5%,B100/200=4537±3%
Glass probe 1.3mm
Scope of Application:
Home appliance
Automotive electronic
Industrial device etc
Induction cooker
The microwave oven
Electric oven
Scope of application
Wireless charging, mobile power supply, charging power supply, etc.
Consumer electronics such as charging bank, intelligent thermos cup, water cup and hand warmers.
Part Number Code:
Structure and Dimensions:

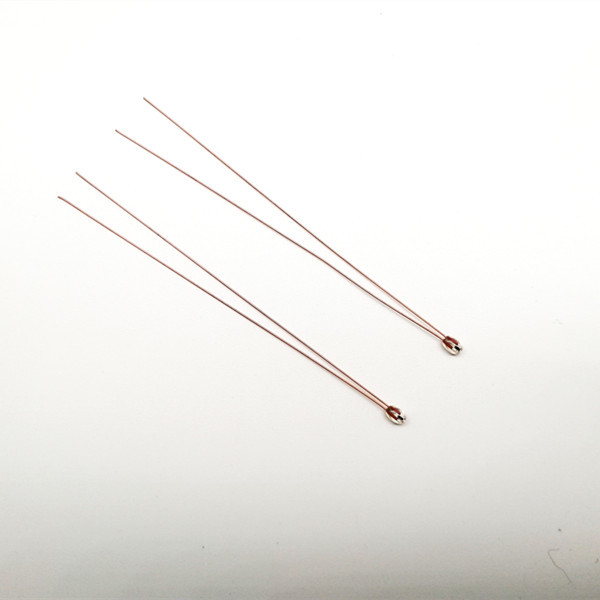

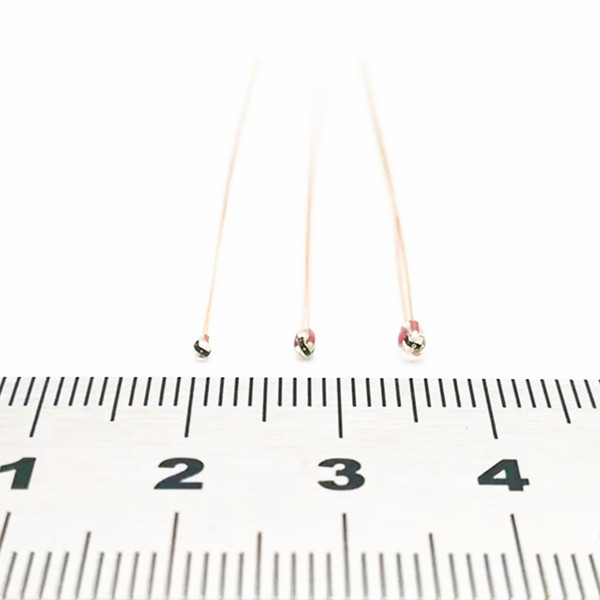

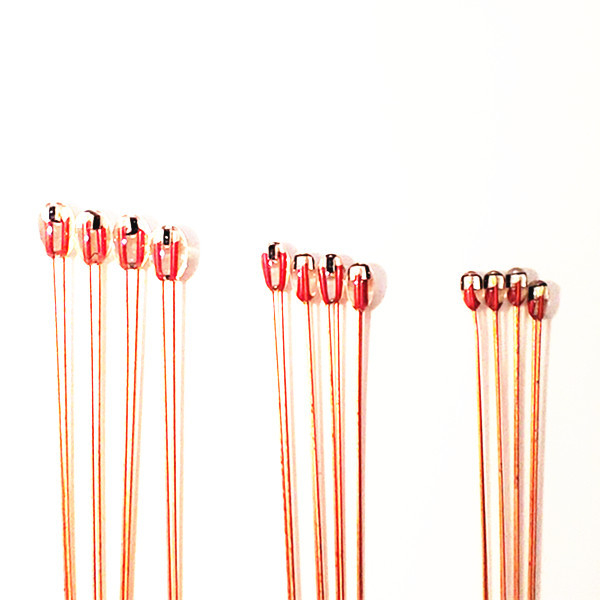

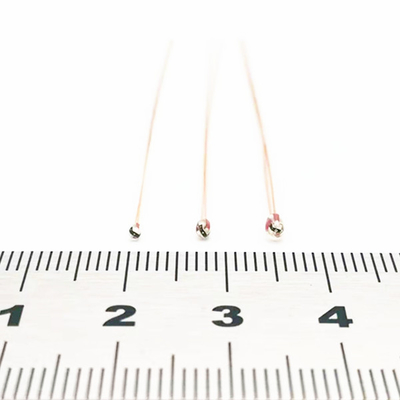

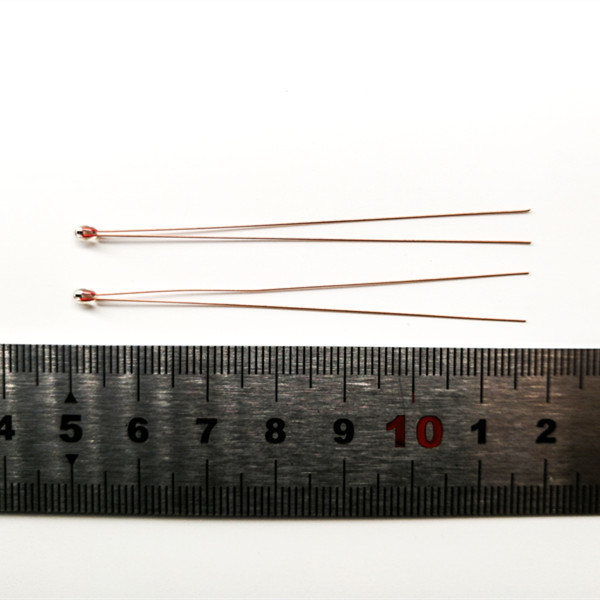

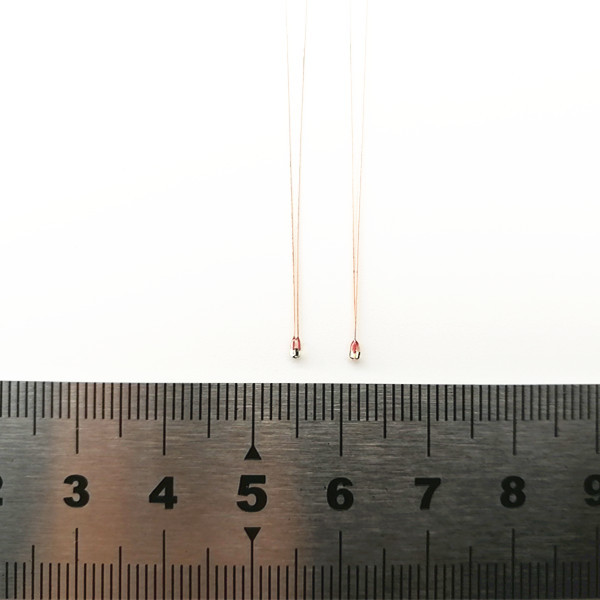

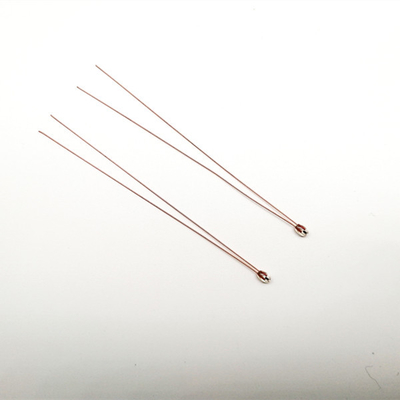

product picture/images:
Electrical specification:
Standard packing (inner packing): 500pcs/polybag
Operation Notice
1.Application:Temperature measure and control；
2.The current flowing through the NTC is controlled within the Pmax range to avoid the measurement error caused by the self-heating of the component.
3.Avoid excessive heat shock,The hot air blow should beat least 30mm to the probe in case heat shrink protection tube need to be attached.
