| Place of Origin: | Hefei, Anhui, China |
|---|---|
| Brand Name: | Jingpu Brand |
| Certification: | CE,ROHS,ISO |
| Model Number: | ntc thermal chip |
| Minimum Order Quantity: | 1000 |
| Price: | USD 0.01-0.5 /PCS |
| Packaging Details: | Carton packing |
| Delivery Time: | 2-7days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Way To Install: | Inserting | Sensing Way: | Resistence |
|---|---|---|---|
| Output Signal Type: | Analog Type | Material: | Epoxy And Metal |
| Measuring The Dielectric: | Temperature | IP Code: | IP64 |
| Transport Package: | Carton Packing | Appearance: | Miniature, Square |
| Warranty: | 12~24 Months | After-sale Service: | Quality Assurance |
| Customization: | Yes | Operating Temperature: | / |
| Resistence Value: | Custom | B Value: | Custom |
| Shipping: | Shipping, Air, Or Express | Wire: | PVC/XPLE/FEP/PTFE |
| High Light: | 3990k Chip Ntc Thermistors,3950k Chip Ntc Thermistors,50k Ohm Ntc Thermistors |
||
50kohm 3950k 3990k Chip Ntc Thermistors Thermometrics Ntc Thermistors
Brief Introduction:
NTC Thermal Chip is widely used in household appliances, medical equipment, batteries, etc. Its resistance accuracy can be divided into ±0.5%, ±1%, ±2%, ±3%, ±5%.
Features:
Comply for ROHS standard
Silver electrode
Small dimension
Good stability
Resistance welding
Replaceable
Application:
Used for processing NTC thermistor and temperature sensor.
Part Number Code:
Structure and Dimensions:
Electrical specification:

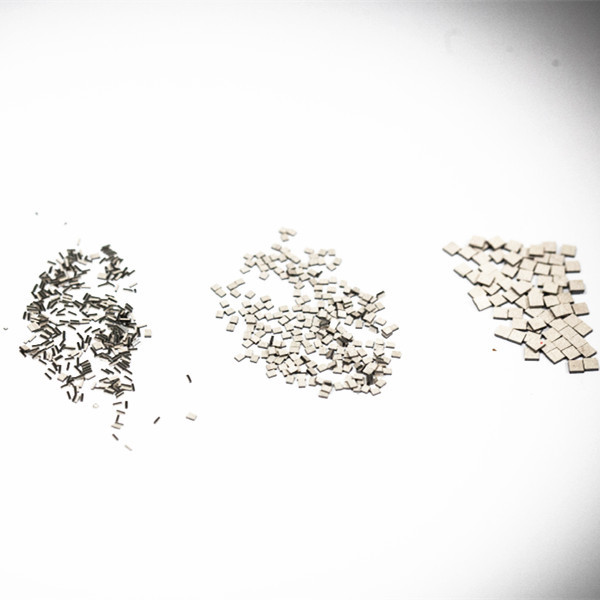

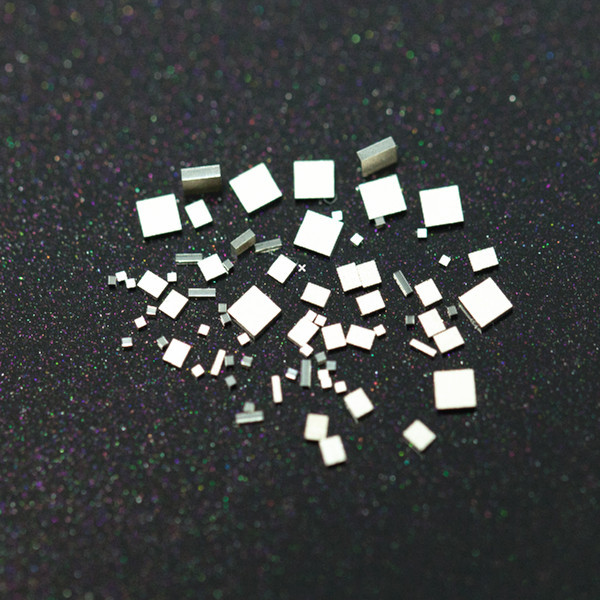

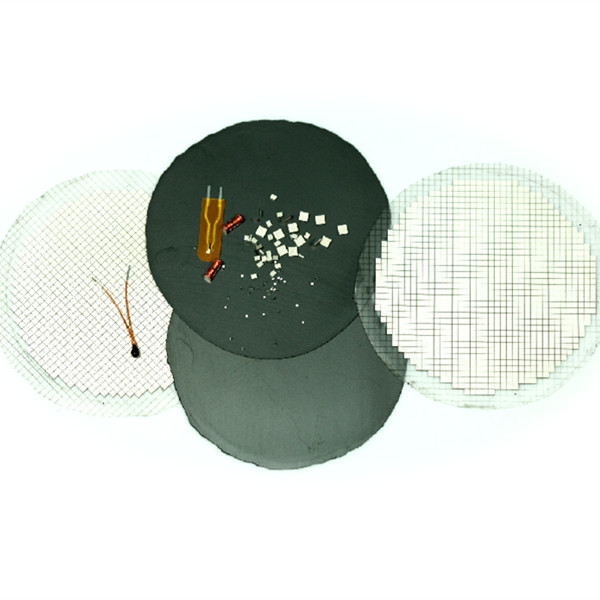

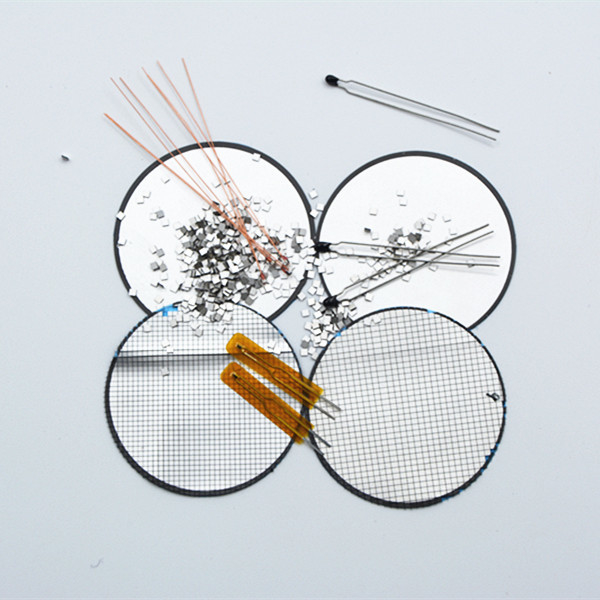

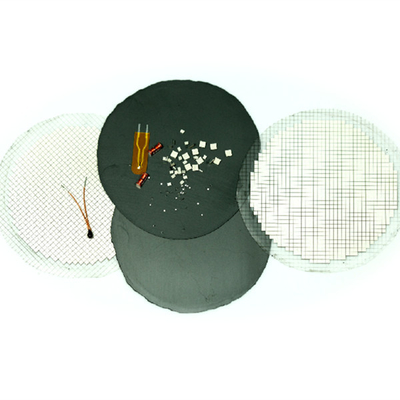

product picture:
Product application scope
1) Temperature control and detection of household appliances (such as air conditioning, microwave oven, induction cooker, disinfection cabinet, water dispensers, electric ovens, etc.)
2) Temperature detection and compensation of office automation equipment (such as copiers, printers, etc.)
3) Temperature control and detection of industrial, medical, meteorological and food processing equipment
4) Temperature protection of battery pack and charger
5) Temperature compensation for instrument coils, integrated circuits, quartz crystal oscillators and thermocouples
