| Place of Origin: | Hefei, Anhui, China |
|---|---|
| Brand Name: | Jingpu Brand |
| Certification: | CE,ROHS,ISO |
| Model Number: | MF5A-5 |
| Minimum Order Quantity: | 1000 |
| Price: | USD 0.01-0.5 /PCS |
| Packaging Details: | Carton packing |
| Delivery Time: | 2-7days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Way To Install: | Inserting | Sensing Way: | Resistence |
|---|---|---|---|
| Output Signal Type: | Analog Type | Material: | Epoxy And Metal |
| Measuring The Dielectric: | Temperature | IP Code: | IP64 |
| Transport Package: | Carton Packing | Appearance: | Custom |
| Warranty: | 12~24 Months | After-sale Service: | Quality Assurance |
| Customization: | Yes | Operating Temperature: | -40℃~150℃ |
| Resistence Value: | Custom | B Value: | Custom |
| Shipping: | Shipping, Air, Or Express | Wire: | PVC/XPLE/FEP/PTFE |
| High Light: | Cable NTC Thermistor,FEP Wire NTC Thermistor,Thermistors 50k Ohm |
||

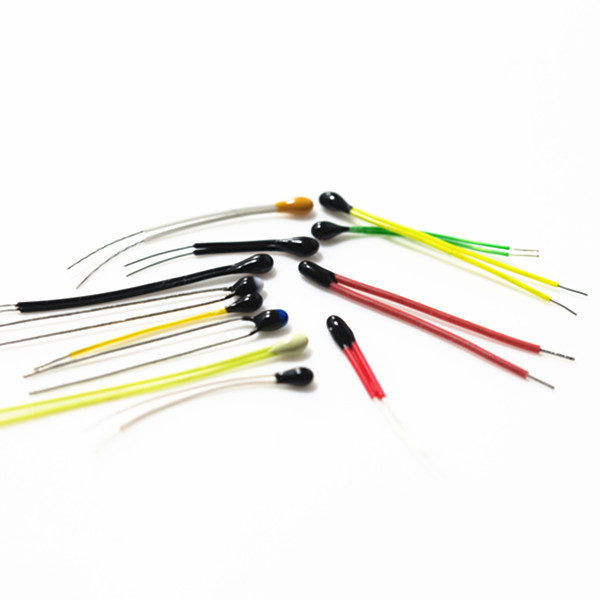

50kohm 3950k 3990k Chip Ntc Thermistors Thermometrics Ntc Thermistors
Brief Instruction:

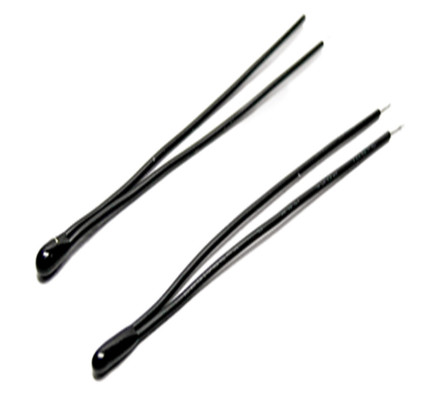

cable NTC thermistor for Automobile Water Temperature Oil Temperature Measurement
consist of FEP wire, NTC chip and epoxy resin. Resistance values are generally R25℃=2k ω, B25/85=3550 or B25/85=3510
Features:
Comply for ROHS standard
Good interchangeable
Wide Operating temperature range: -40℃~150℃
Application:

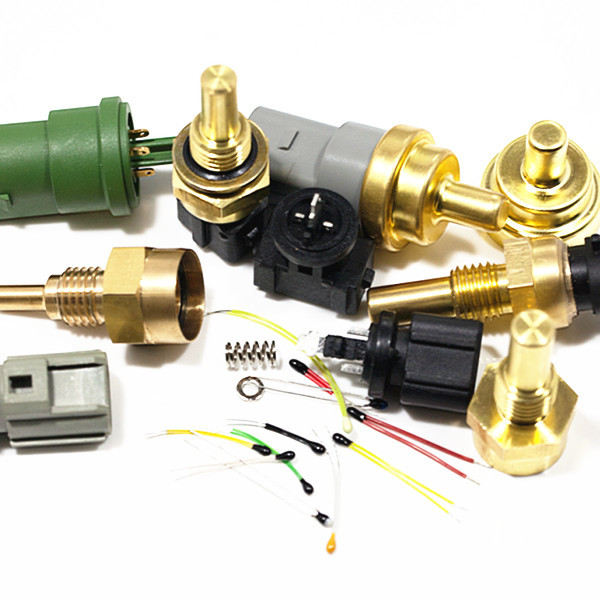

Automobile water temperature survey
Automobile oil temperature measurement
This series of products can also be used for temperature measurement and control, such as battery pack application, rechargeable battery, notebook battery, digital camera battery, mobile phone battery, temperature measurement and temperature control products, overheating protection, massage belt, massage chair, etc
Part Number Code:
Structure and Dimensions:
Electrical specification:
| Rec. at 25℃(kΩ) | Beta value | (In air)Pmax(mW) | δ(mW/℃) | thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | Approx.60 | Max.3.0 | Max.20 | -20℃~105℃(PVC wire)& -40℃~125℃( or XLPE wire) | 13.5~1000 |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |
The detailed parameters are as follows:
1. Epoxy resin coating;
2. A molding, very high stability;
3. Fast thermal reaction time;
4. Good insulation;
5. High accuracy of resistance, when used as a thermometer can ensure high precision of temperature;
6. High stability in humid environment;
7. wire, lead length is optional;
