| Place of Origin: | Hefei, Anhui, China |
|---|---|
| Brand Name: | Jingpu Brand |
| Certification: | CE,ROHS,ISO |
| Model Number: | MF57 |
| Minimum Order Quantity: | 1000 |
| Price: | USD 0.01-0.5 /PCS |
| Packaging Details: | Carton packing |
| Delivery Time: | 2-7days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Way To Install: | Inserting | Sensing Way: | Resistence |
|---|---|---|---|
| Output Signal Type: | Analog Type | Material: | Epoxy And Metal |
| Measuring The Dielectric: | Temperature | IP Code: | IP64 |
| Transport Package: | Carton Packing | Appearance: | Glass Bead Type |
| Warranty: | 12~24 Months | After-sale Service: | Quality Assurance |
| Customization: | Yes | Operating Temperature: | -40 °C~300 °C |
| Resistence Value: | Custom | B Value: | Custom |
| Shipping: | Shipping, Air, Or Express | Wire: | PVC/XPLE/FEP/PTFE |
| High Light: | IP64 Glass Bead Thermistor,Glass Coated Chip Thermistors,Glass Coated Bead Thermistors |
||
Glass Coated Chip Thermistors Glass Coated Bead Thermistors Free Sample
Brief Instruction:
As one NTC thermistor sensor, 100kΩ 4200K 1% glass coating NTC thermistor is made of glass bead, thinner dumet wire. Its feature is high temperature resistance. Glass coating NTC thermistor be widely apply for automotive electronic, home appliance, industrial device etc.
Features:
Glass encapsulation
High temperature resistant
Operating temperature range: -40℃~300℃
R25=100KΩ±1%,B25/50=4200±1%
Glass probe 1.3mm
Application:
Home appliance
Automotive electronic
Industrial device etc
Part Number Code:
Structure and Dimensions:
Electrical specification:
| Product Specification | Rec.at 25℃(KΩ) | Beta value | (In air) Pmax(mW) |
δ (mW/℃) |
thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| B7A202□3470A□L50 | 2 | B25/85=3470 | Approx.20 | Approx.0.75 | Max.10 | -40~300 | 50 |
| B7A202□3830A□L50 | 2 | B25/85=3977 | |||||
| B7A502□3950A□L50 | 5 | B25/85=3950 | |||||
| B7A103□3435B□L50 | 10 | B25/85=3435 | |||||
| B7A103□3950A□L50 | 10 | B25/50=3950 | |||||
| B7A503□3950A□L50 | 50 | B25/50=3950 | |||||
| B7A104□3950A□L50 | 100 | B25/50=3950 | |||||
| B7A104□4132B□L50 | 100 | B25/85=4132 | |||||
| B7A104□4200A□L50 | 100 | B25/50=4200 |

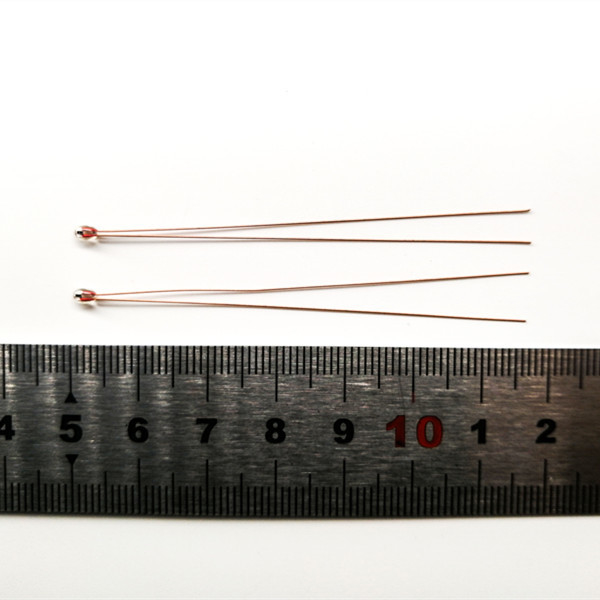

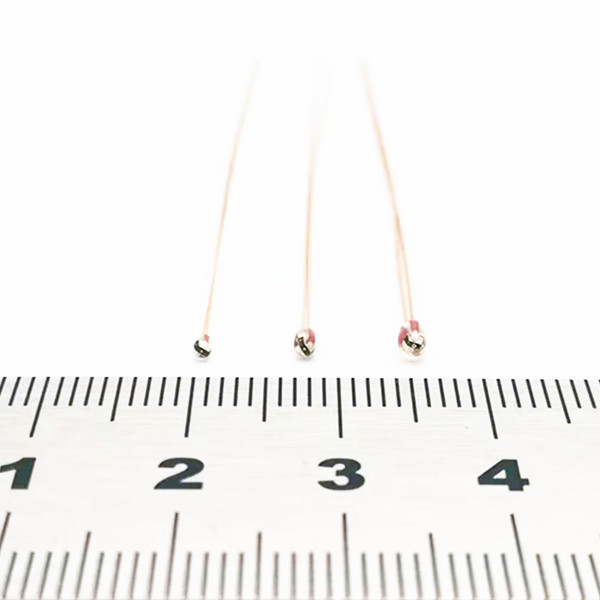

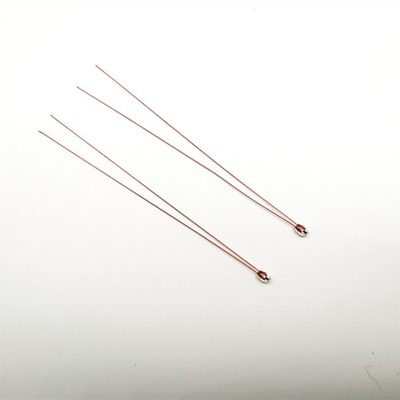

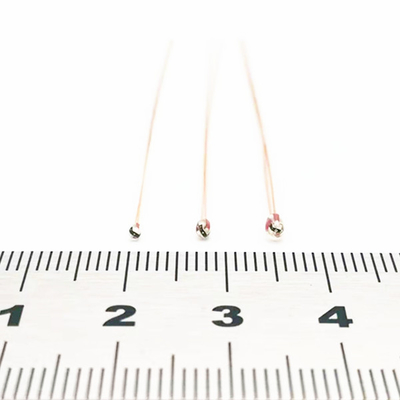

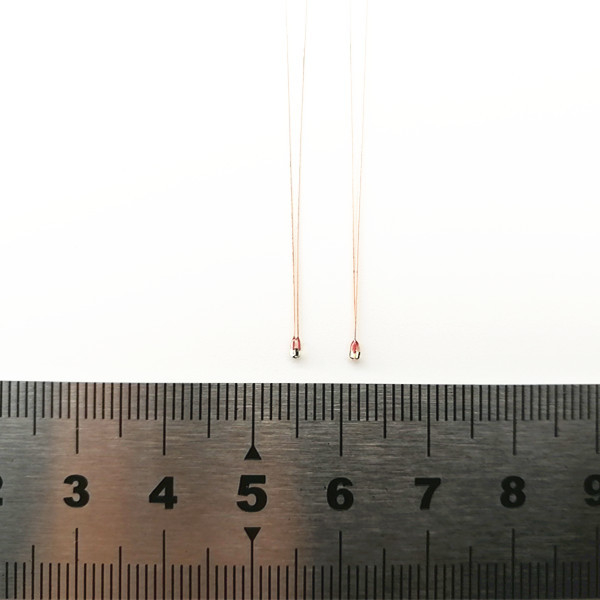

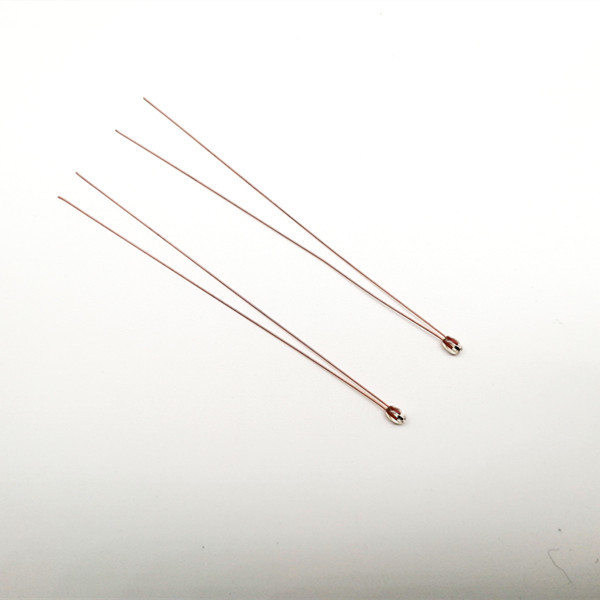

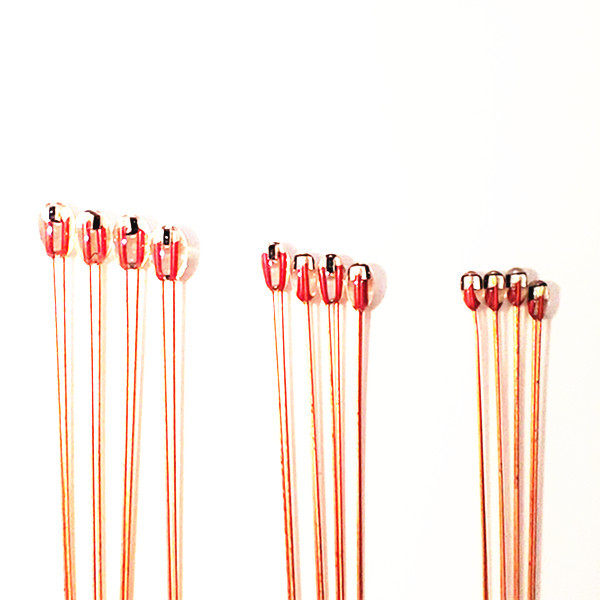

Product picture/images:
Standard packing (inner packing): 500pcs/polybag
