| Place of Origin: | Hefei, Anhui, China |
|---|---|
| Brand Name: | Jingpu Brand |
| Certification: | CE,ROHS,ISO13485/9001 |
| Model Number: | MFT |
| Minimum Order Quantity: | 1000 |
| Price: | USD 0.6-2 /PCS |
| Packaging Details: | Carton packing |
| Delivery Time: | 2-7days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Way To Install: | Inserting | Sensing Way: | Resistence |
|---|---|---|---|
| Output Signal Type: | Analog Type | Material: | Ceramic |
| Measuring The Dielectric: | Temperature | IP Code: | IP64 |
| Transport Package: | Carton Packing | Appearance: | White |
| Warranty: | 12~24 Months | After-sale Service: | Quality Assurance |
| Customization: | Yes | Operating Temperature: | -40℃~80℃ |
| Resistence Value: | Custom | B Value: | Custom |
| Shipping: | Shipping, Air, Or Express | Wire: | PVC/XPLE/FEP/PTFE |
| High Light: | 5K B3950 NTC Refrigerator Sensor,10K B3950 NTC Refrigerator Sensor,Fast Response NTC Sensor 10K |
||
Fast Response 5K 10K B3950 NTC Refrigerator Sensor For Cooling Heating System
Brief Instruction:

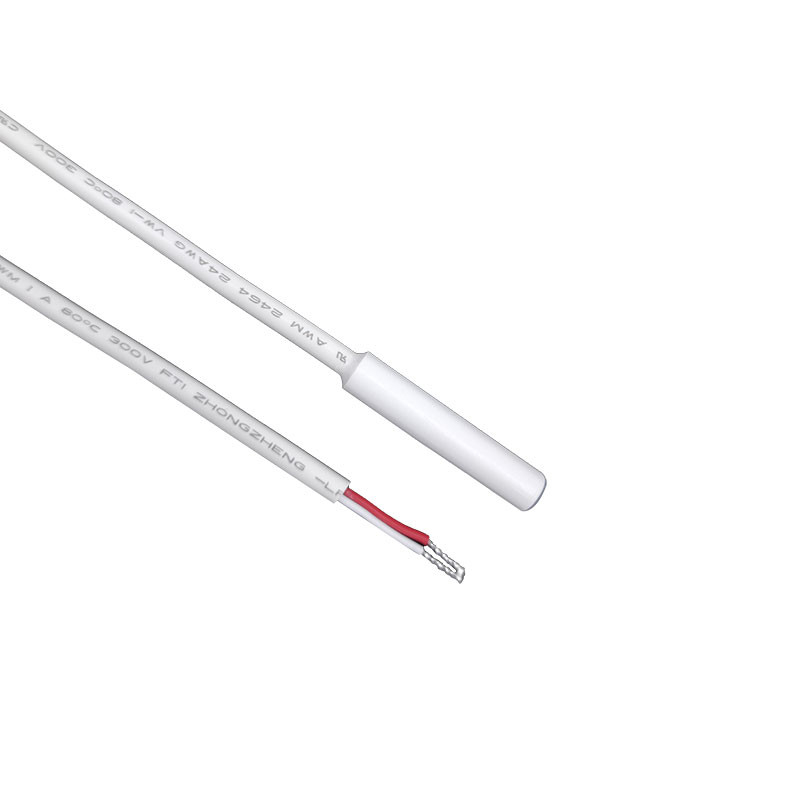

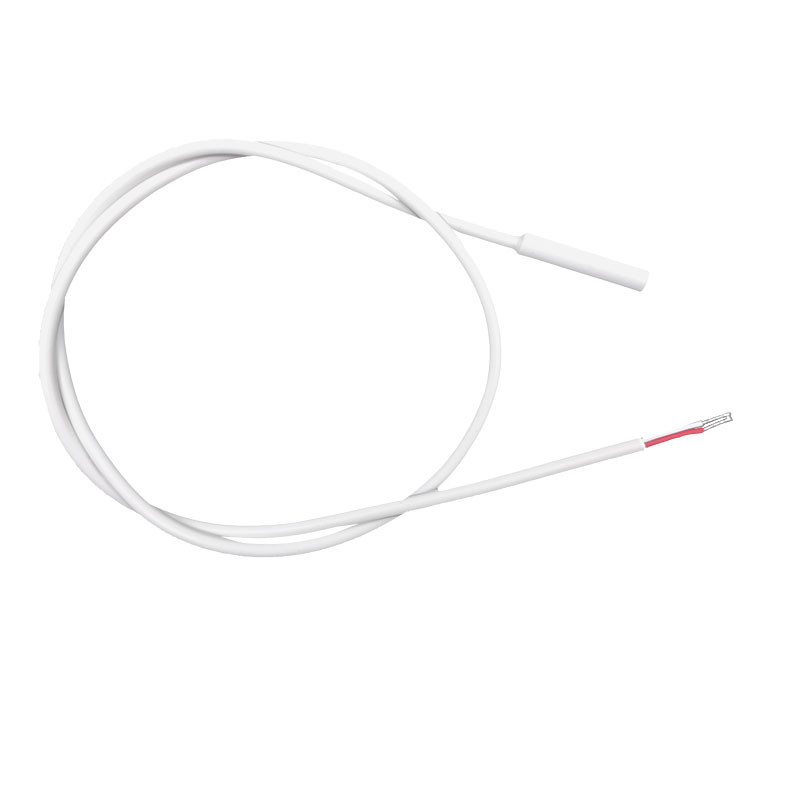

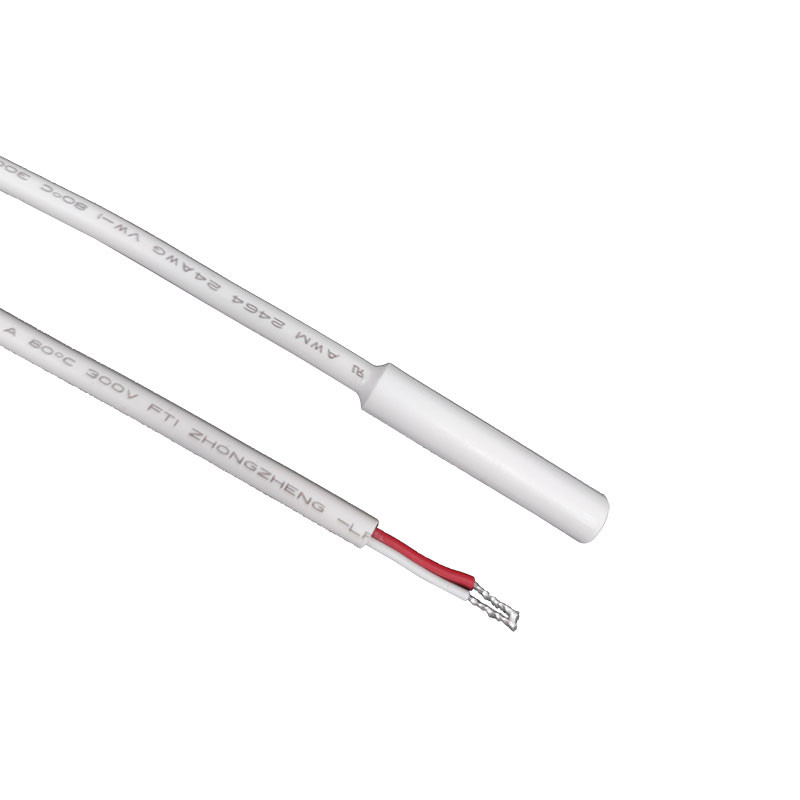

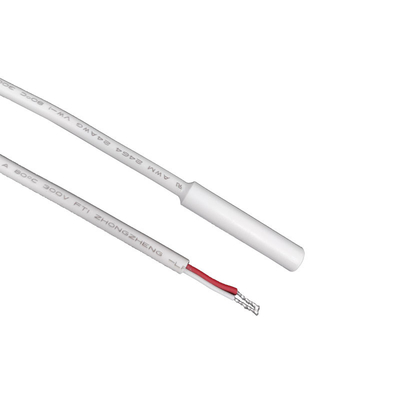

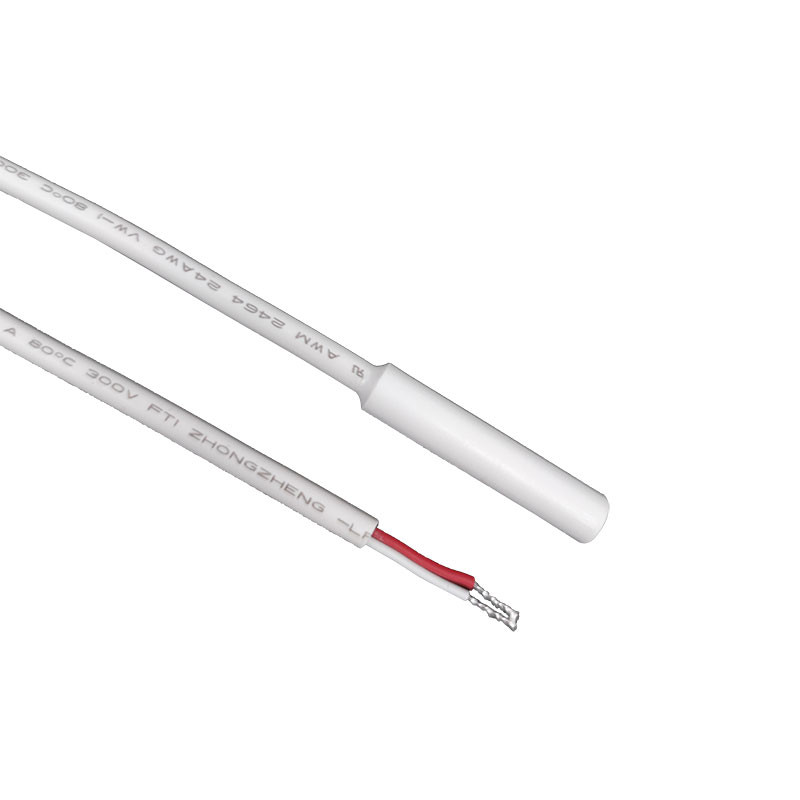

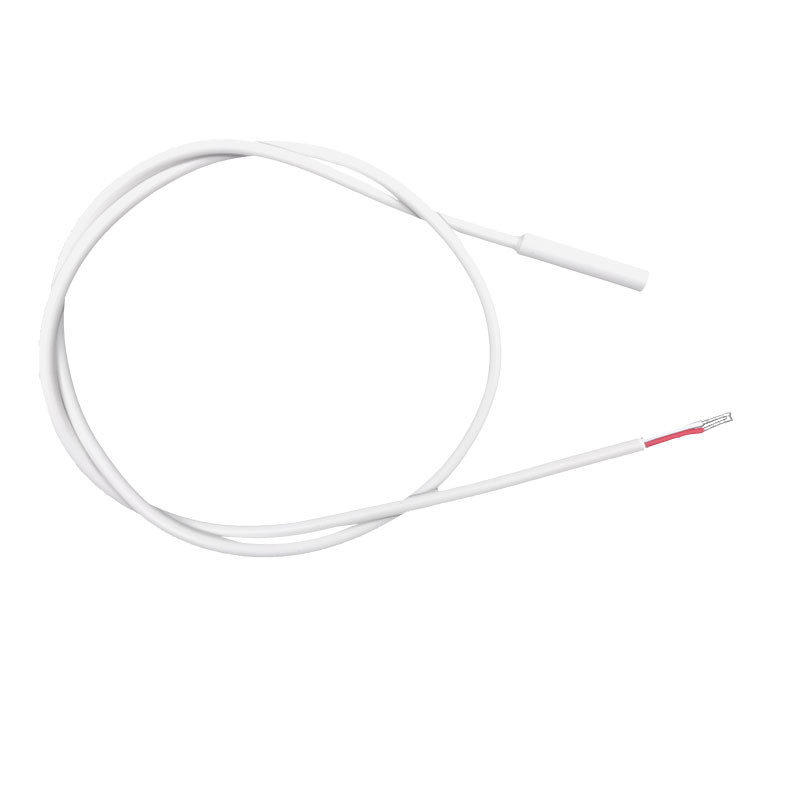

Refrigerator with ABS probe NTC temperature sensor, probe for the market general ABS φ 6*30mm shell, lead UL2464 24AWG 80℃ wire, the parameters are generally 5kω, 10Kω, control temperature at 0℃ or so.
Features:
Comply for ROHS standard
PVC insulated lead wires series
Operating temperature range: -40℃~80℃
Stable performance
Accurate temperature measurement
Accurate low temperature control
R25℃=10kΩ
R0℃=32.51kΩ
B25/50=3950k
Application Case:
Mainly used in household air conditioning, car air conditioning, refrigerator, barbecue oven, deep fryer, induction cooker, soybean milk machine, electric oven, 3D printer temperature measurement and control.
Structure and Dimensions(mm):
