| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | ISO9001, RoHS |
| Model Number: | MFP |
| Minimum Order Quantity: | 10K |
| Price: | USD 0.2-5 Per Piece |
| Packaging Details: | Carton Package |
| Delivery Time: | 2-4Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Resistance: | R25℃=100KΩ ±1% | Beta Value: | B25/50=3950K ±1% |
|---|---|---|---|
| Probe: | SUS304 Bullet Type Probe | Wire: | UL1332 26AWG 7/0.16 OD1.15 Black 200℃ |
| Length: | 65±5mm | Tube: | Heat Shrink Tube φ3.0*20 |
| Connector: | 110 Connector 2.8*0.5 TAB-0.5 | Withstand Voltage: | AC1500V 0.5Ma 2S |
| Application: | Electric Kettle | ||
| Highlight: | Bullet Type Temperature Probe,Electric Kettle Temperature Probe,SUS304 Probe Temperature Sensor |
||
High Accuracy Fast Response Electric Kettle Temperature Probe
Product Description:
R25℃ = 100KΩ: This value indicates the resistance (R) of the temperature probe at 25 degrees Celsius (℃). In this case, the resistance is 100 kilohms (KΩ).
B25/50 = 3950K: This value represents the Beta (B) coefficient of the temperature probe. The Beta coefficient is used to describe the relationship between temperature and resistance for certain types of temperature sensors, such as NTC (Negative Temperature Coefficient) thermistors. Specifically, the B25/50 value indicates that the probe has a Beta coefficient of 3950K.
Properties:
R25℃=100KΩ ±1%
B25/50=3950K ±1%
Probe: Bullet type probe SUS304
Wire: UL1332 26AWG 7/0.16 OD1.15 Black 200℃
Length: 65±5mm
Tube: Heat shrink tube φ3.0*20
Connector: 110 connector 2.8*0.5 TAB-0.5
Withstand voltage: AC1500V 0.5Ma 2S
Application:
This rated resistance 100KΩ temperature probe is used for electric kettle.
Drawing and Dimension:
Electrical Specification:
| Rec. at 25℃(kΩ) | Beta value | (In air)Pmax(mW) | δ(mW/℃) | thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | Approx.60 | / | / | -40℃~125℃ | 100~5000 |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |

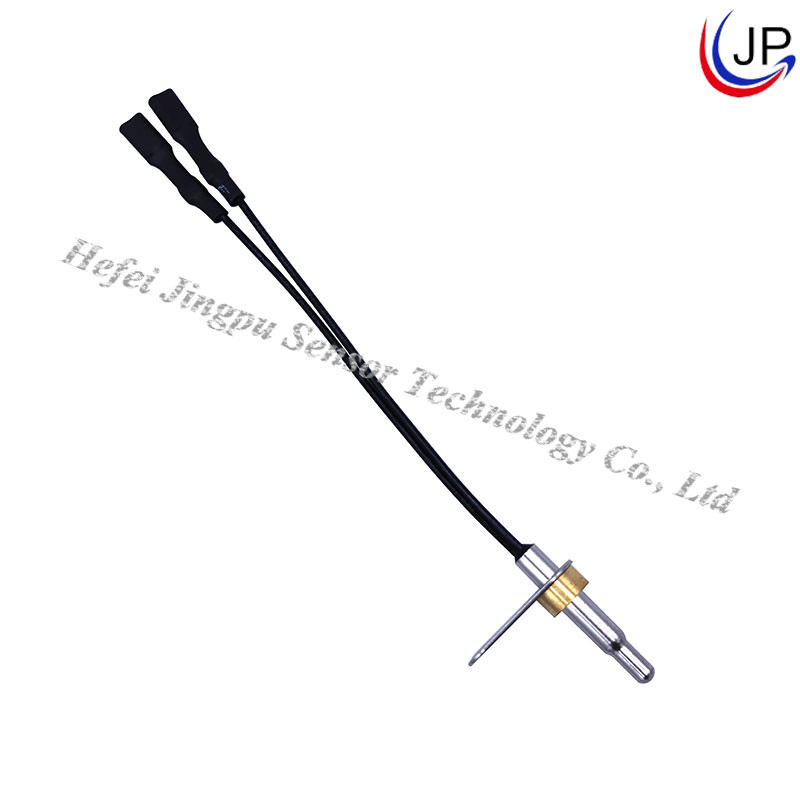

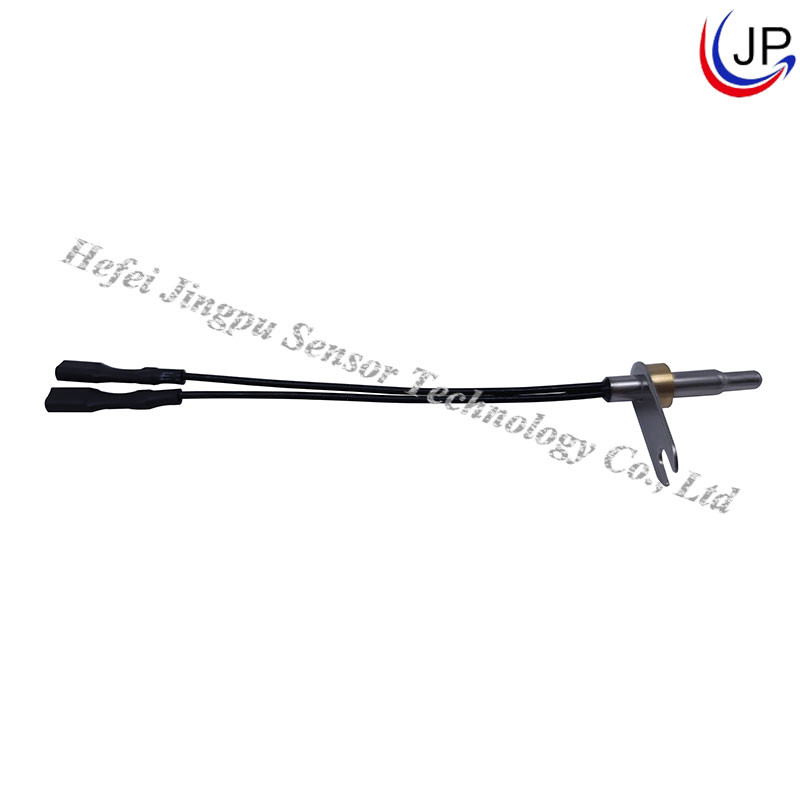

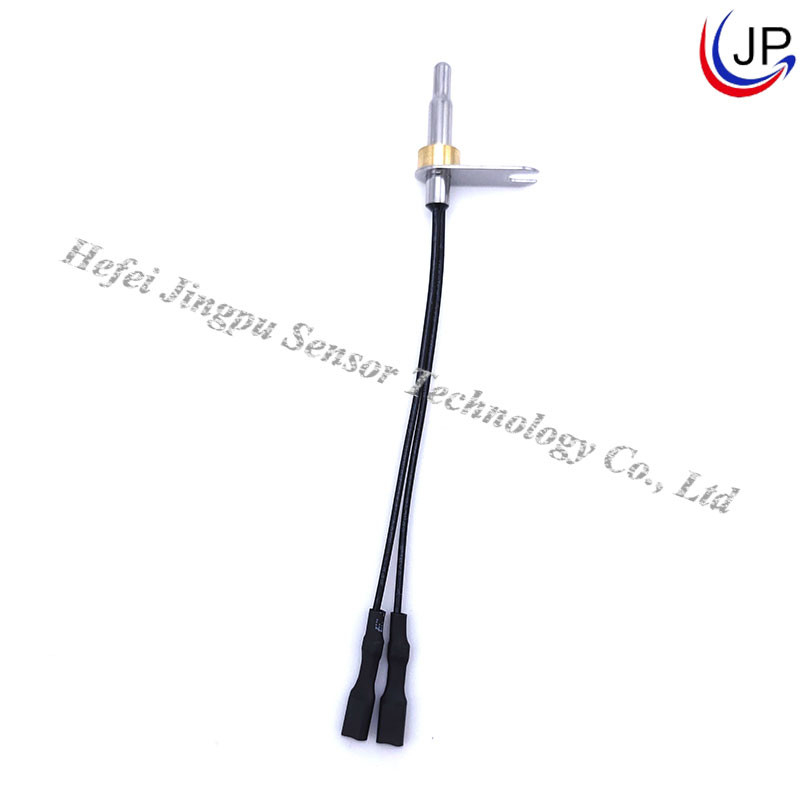

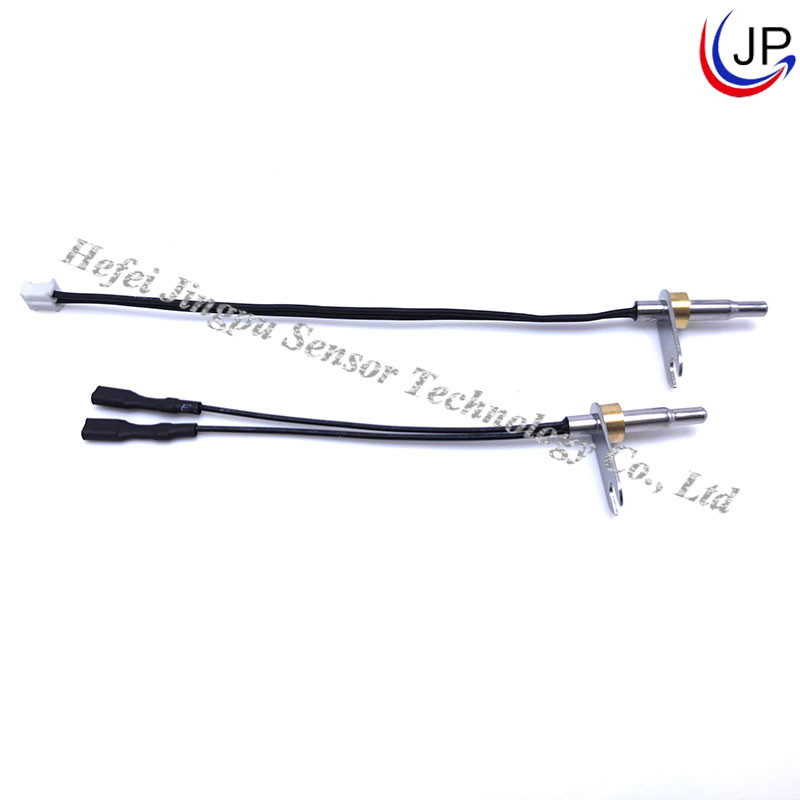

Product Image:
