| Place of Origin: | China |
|---|---|
| Brand Name: | Hefei Jingpu Sensor Technology Co., Ltd |
| Certification: | ISO9001, RoHS |
| Model Number: | MFT+HT |
| Minimum Order Quantity: | 5000 Pieces |
| Price: | USD 6-10 USD per piece |
| Packaging Details: | Carton Package |
| Delivery Time: | 2-5Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million Pieces per Year |
| Resistance: | R25℃=50KΩ±3% | B Value: | B25/50=3950K±1% |
|---|---|---|---|
| Number Tube: | PVC φ4 L=10mm | Probe 1: | SUS φ3x10 |
| Wire 1: | HTD3050-15m-3 | Probe 2: | SUS φ5*30 |
| Heat Shrink Tube: | φ2.5*200±10/ φ2.5*1000±20 | Wire 2: | UL3656 30AWG (7/0.1) X 2C OD0.75 X 1.6 |
| Connector: | DB9 (Male) | Encapsulation: | Epoxy Resin |
BTS Temperature Sensor For Temperature Monitoring Of Base Transceiver Station
Product Description:
This ntc temperaturesensor is a BTS temperature sensor for the temperature monitoring of base transceiver station. Base Transceiver Station typically houses the equipment required for wireless communication, including the radio transceivers, power supplies, and other components. To ensure proper functioning and prevent damage, monitoring the temperature inside the cabinet is crucial. A temperature sensor is commonly used to measure the temperature within the BTS cabinet.
The temperature sensor is usually placed inside the cabinet and connected to a monitoring system. There are different types of temperature sensors available for Base Transceiver Station, such as thermocouples, resistance temperature detectors (RTDs), and thermistors. But NTC thermistor has its advantage compare with other temperature sensors such as Sensitivity, Wide Temperature Range, Cost-Effectiveness, Size and Packaging Options, Fast Response Time, and Self-Heating Compensation.
The temperature sensor is connected to a monitoring system, which can be a dedicated device or part of a larger network management system. The monitoring system continuously collects temperature data from the sensor and provides real-time information about the cabinet's temperature.
By monitoring the temperature inside the BTS cabinet, network operators can ensure that the equipment operates within safe temperature ranges. If the temperature exceeds the predefined thresholds, the monitoring system can trigger alarms or notifications to alert the operators. This allows them to take appropriate action, such as improving ventilation, adjusting cooling systems, or addressing any equipment issues that may be causing the temperature rise.
Properties of BTS Temperature Sensor
R25℃=50KΩ±3%
B25/50=3950K±1%
Number Tube: PVC φ4 L=10mm
Probe 1: SUS φ3x10
Wire 1: HTD3050-15m-3
Probe 2: SUS φ5*30
Heat shrink tube: φ2.5*200±10/ φ2.5*1000±20
Wire 2: UL3656 30AWG (7/0.1) x 2C OD0.75 x 1.6
Connector: DB9 (Male)
Encapsulation: Epoxy resin
Application:
Temperature monitoring of Base Transceiver Station cabinet. This product can monitor temperature and humidity simutaneously.
Drawing:

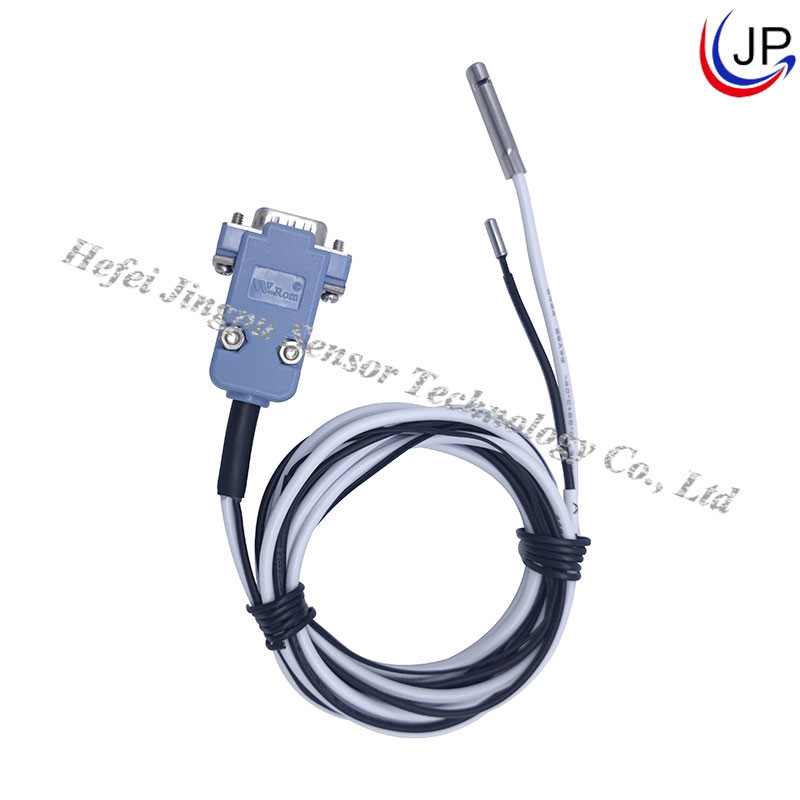

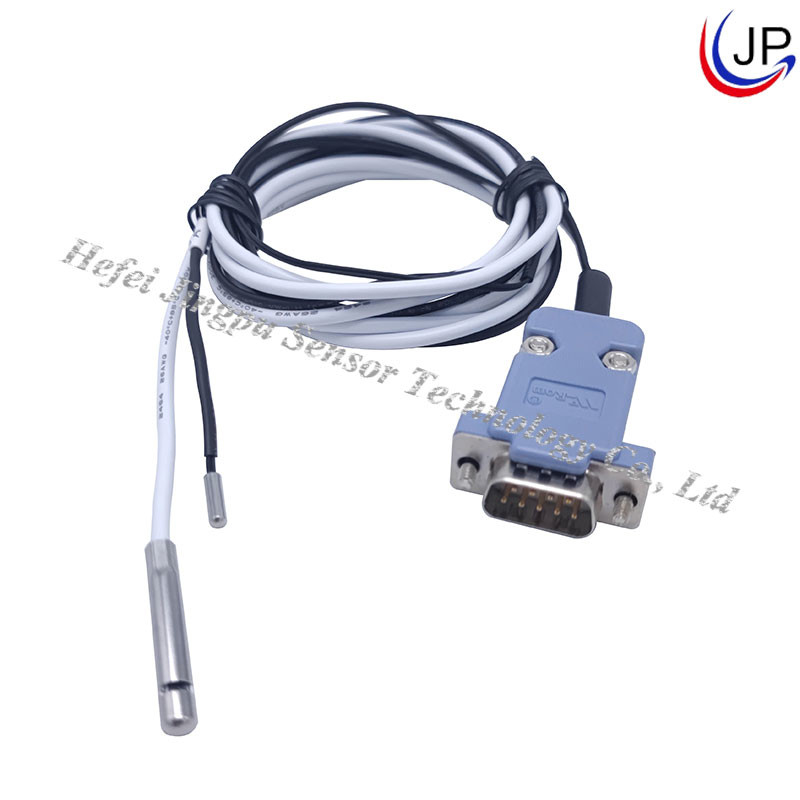

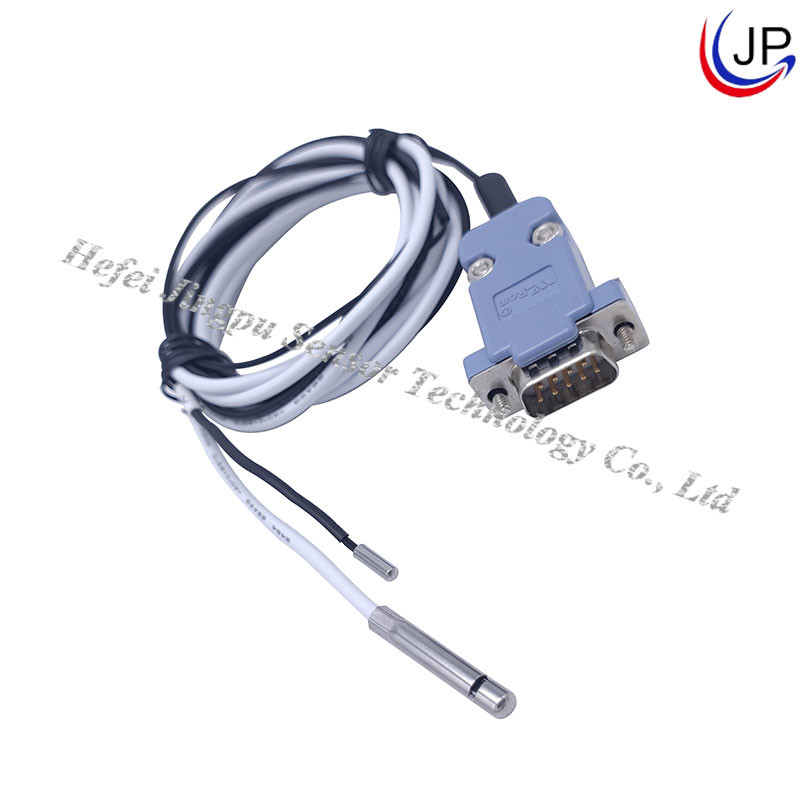

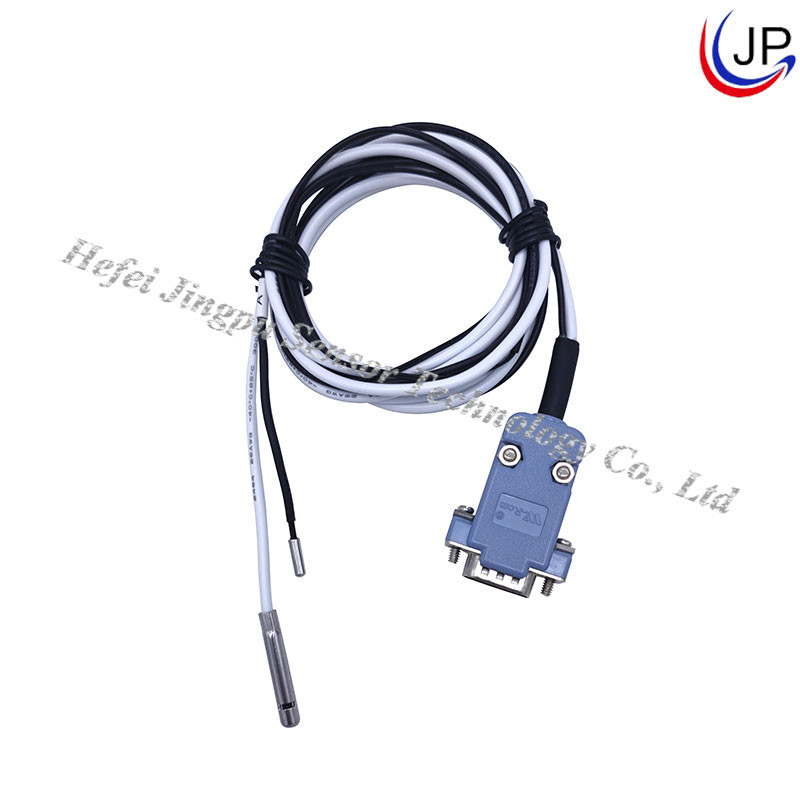

Product Images:
