| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | Hefei Jingpu Sensor Technology Co., Ltd |
| Certification: | ISO9001, RoHS |
| Model Number: | MFP |
| Minimum Order Quantity: | 1000 Pieces |
| Price: | To be negotiated |
| Packaging Details: | Carton Package |
| Delivery Time: | 2-5Weeks |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 200 Million Pieces per Year |
| Resistance: | R25℃=5KΩ±5% | Beta Value: | B0/50=3896K±2% |
|---|---|---|---|
| Probe: | SUSφ4.5+60 | Wire: | PVC UL2651 26AWG 7/0.16 OD1.4*2.9TS |
| Length: | 312mm | Connector: | AMP 174460-1(TE) White |
| High Light: | High Accuracy NTC Probe Temperature Sensor,B050 Probe Temperature Sensor |
||
R25℃=5KΩ±5% B050=3896K±2% NTC Temperature Sensor
Product Description:
Product Name: NTC Temperature Sensor
Model: MFP
This item is a high-quality NTC temperature sensor designed to accurately measure temperatures in a wide range of applications. With its compact and robust design, this sensor is suitable for use in various temperature sensing and control systems.
Key Features:
High Accuracy: This item features a precise resistance value of R25℃ = 5KΩ ± 5%, ensuring reliable temperature measurements at room temperature (25 degrees Celsius).
Wide Temperature Range: This NTC temperature sensor can accurately measure temperatures over a broad range, making it suitable for both low and high-temperature applications.
Beta Value: The NTC sensor is characterized by its Beta value (B0/50 = 3896K ± 2%), providing a reliable resistance-temperature relationship, particularly around 50 degrees Celsius.
Negative Temperature Coefficient: As an NTC sensor, its resistance decreases as the temperature increases, allowing it to efficiently measure temperatures in a variety of environments.
Durable Construction: This item is built with high-quality materials, making it robust and suitable for demanding industrial and commercial environments.
Easy Integration: The sensor is designed for easy integration into your existing temperature monitoring and control systems, offering hassle-free installation and setup.
Applications:
HVAC (Heating, Ventilation, and Air Conditioning) Systems
Industrial Automation and Process Control
Home Appliances (e.g., ovens, refrigerators, water heaters)
Automotive Temperature Monitoring
Weather Stations and Environmental Monitoring
Technical Specifications:
Resistance at 25°C (R25℃): 5KΩ ± 5%
Beta Value (B0/50): 3896K ± 2%
Operating Temperature Range: -40°C to +125°C
Tolerance: ±5% (R25℃), ±2% (B0/50)

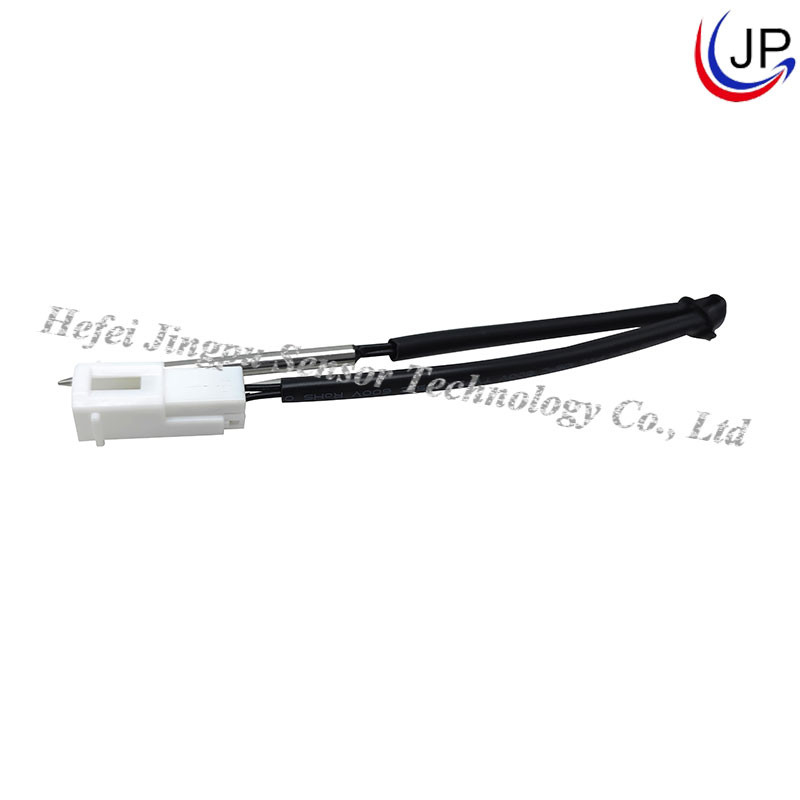

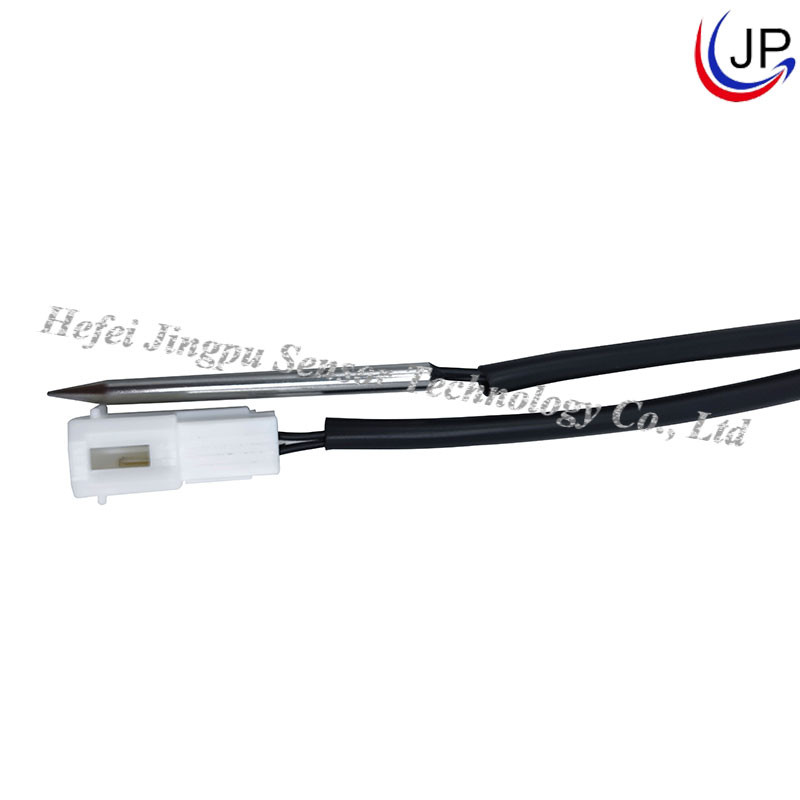

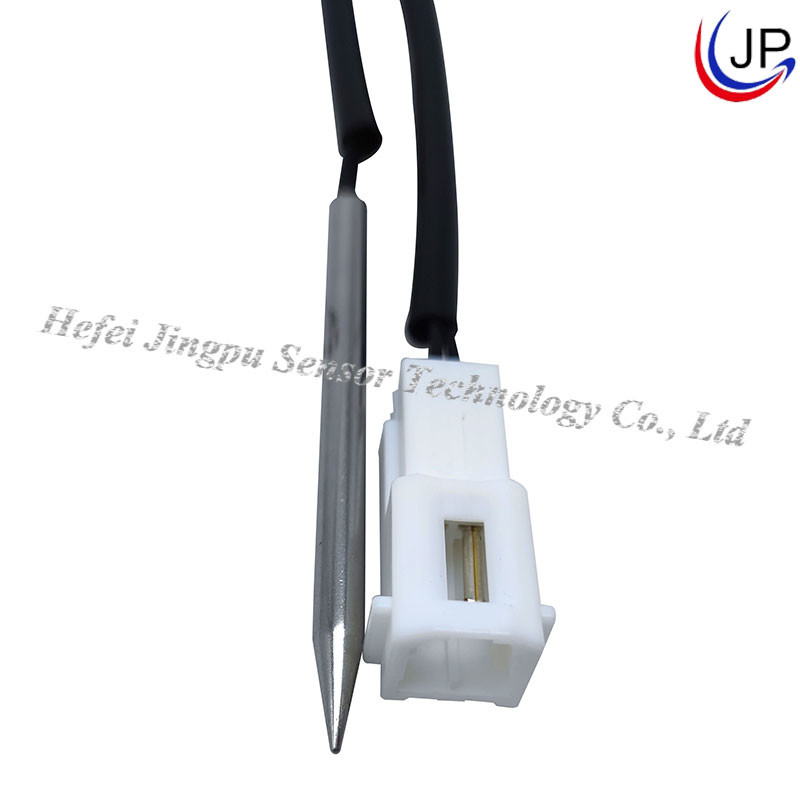

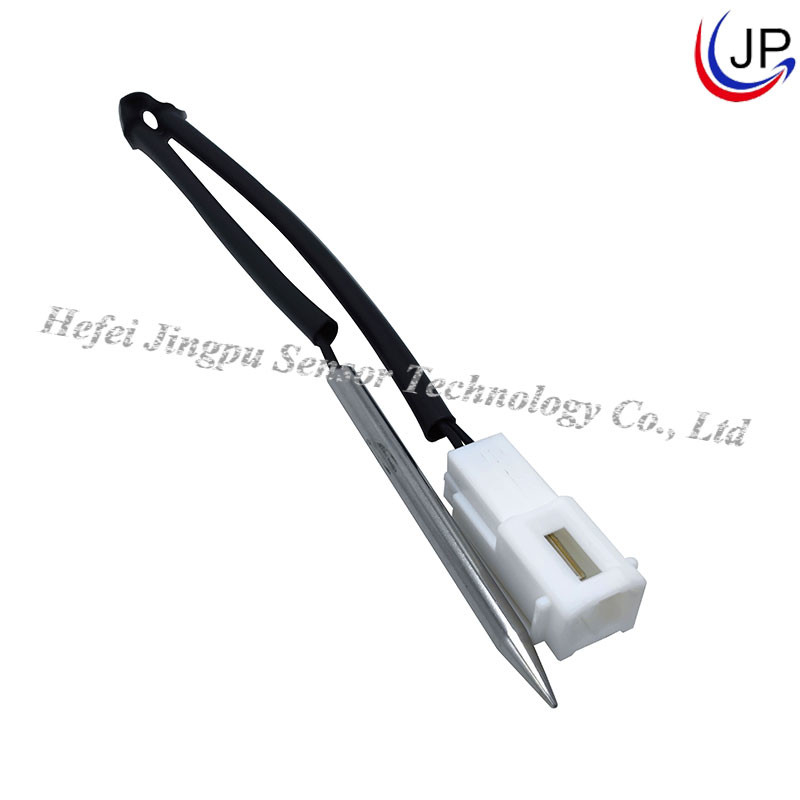

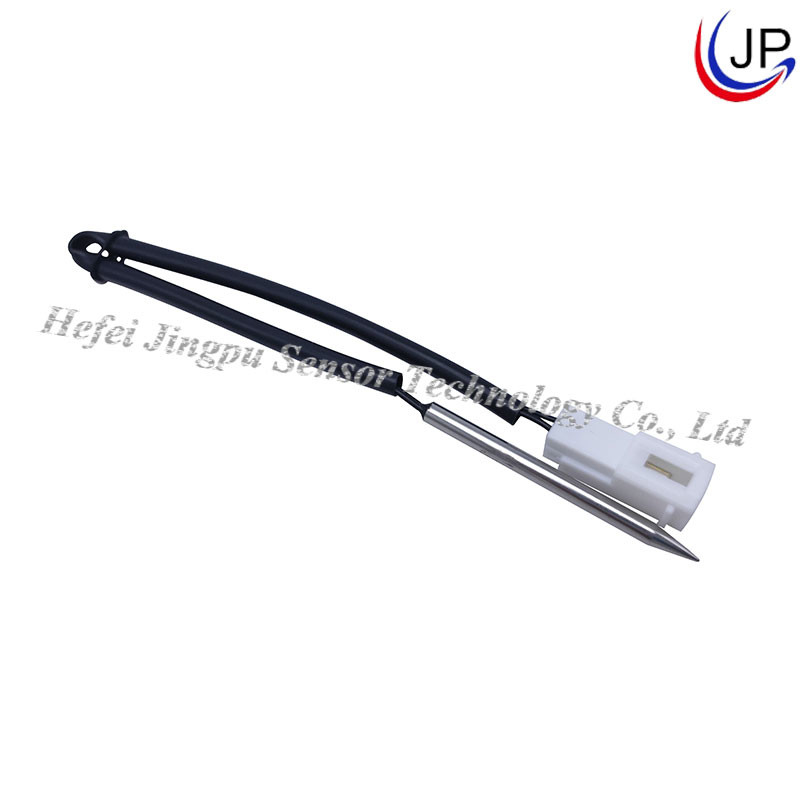

Product Images:
