| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | Hefei Jingpu Sensor Technology Co., Ltd |
| Certification: | RoHS, ISO9001 |
| Model Number: | MF5A-5 |
| Minimum Order Quantity: | 1000PCS |
| Price: | To be negotiated |
| Packaging Details: | Carton Package |
| Delivery Time: | 3-5 Weeks |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 1000K/M |
| Resistance Value: | R25℃=10KΩ±1% | Beta Value: | B25/85=3435K±1% |
|---|---|---|---|
| Probe: | Max3*10mm, White | Wire: | PVC UL2651 28AWG 7/0.12 OD0.9*1.9TS 105℃， Black |
| Length: | (100±5)-(3±1)Sn |

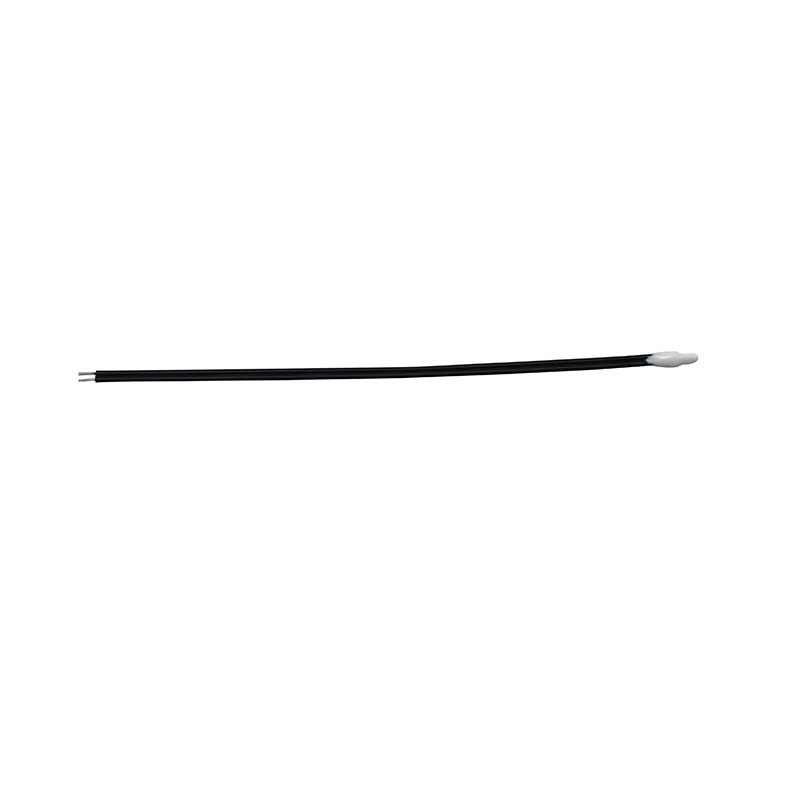

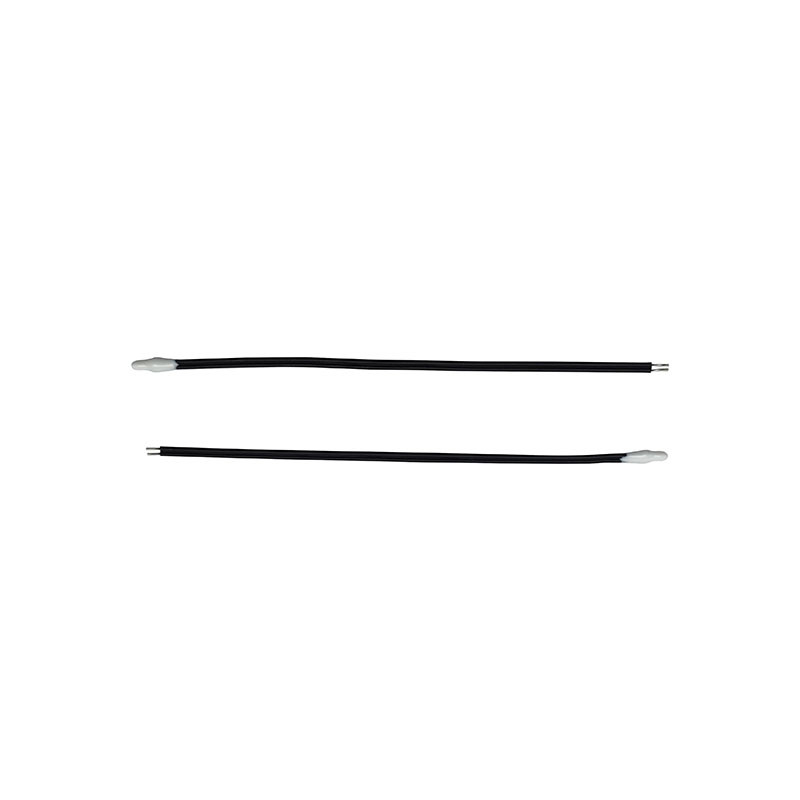

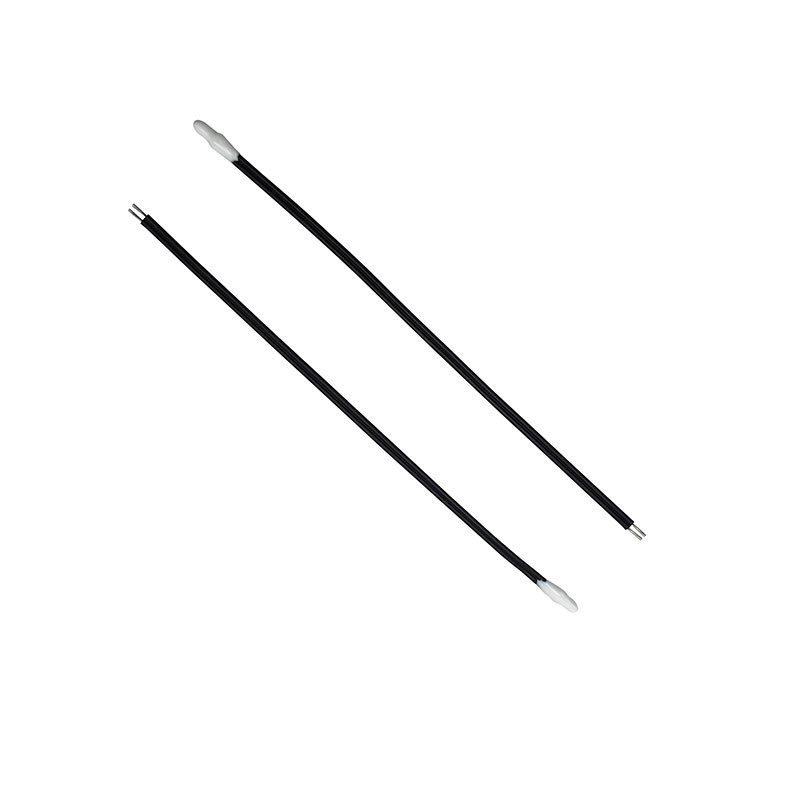

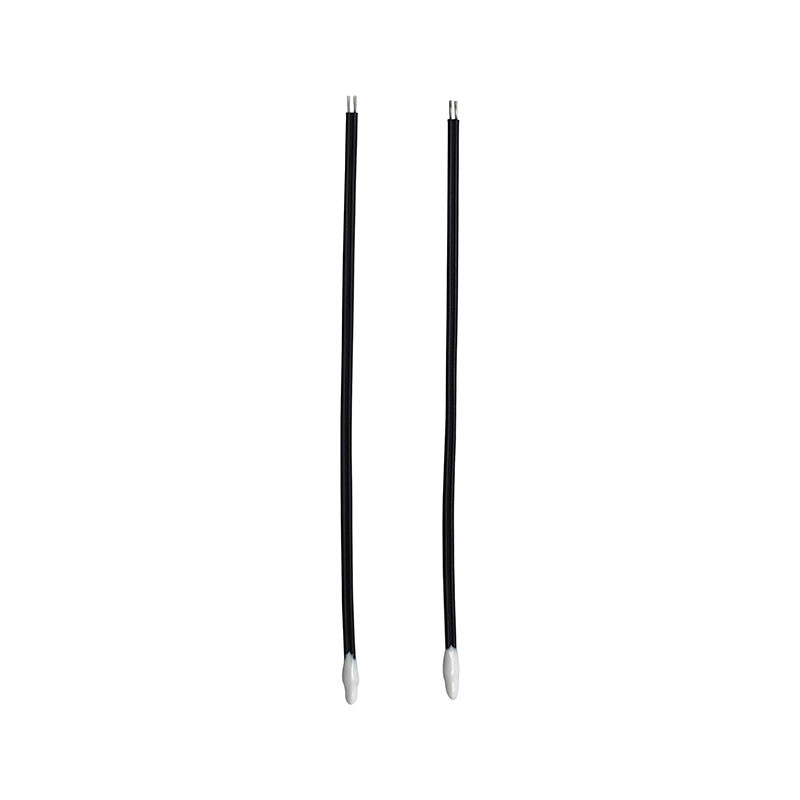

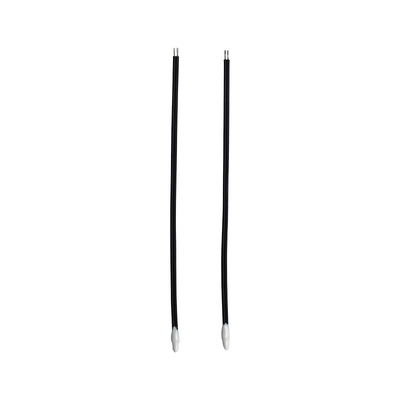

10K 3435 Epoxy Bead NTC Thermistor Sensor
Product Description:
10K 3435 Epoxy Bead NTC Thermistor Sensor is the thermistor with a nominal resistance of 10,000 ohms at 25 degrees Celsius. The "3435" in its name refers to its Beta (B) value, which is a characteristic of the temperature-resistance relationship of the thermistor.
The "epoxy bead" part indicates the encapsulation material epoxy resin used to protect the thermistor element. Epoxy is a common choice for its thermal conductivity and protection against environmental factors.
Characteristics:
R25℃=10KΩ±1%
B25/85=3435K±1%
Probe: Drop Maxφ3*10mm, white
Wire: PVC parallel wire UL2651 28AWG 7/0.12 OD0.9*1.9TS Black 105℃
Length: (100±5)-(3±1)Sn
Application:
Temperature measurement, temperature monitoring, etc.
