| Place of Origin: | Anhui，China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | ISO9001, RoHS |
| Model Number: | MFP-2A |
| Minimum Order Quantity: | 1000 |
| Price: | Negotiable |
| Packaging Details: | 100pcs/pag |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100000PCS/week |
| Resistance: | 0.3KΩ~ 2000KΩ | Beta Value: | 2500K~4500K |
|---|---|---|---|
| Operating Temperature Range(/PTFE): | -40℃~150℃ | Operating Temperature Range(PVC): | -20℃~105℃ |
| OEM/ODM: | Available | Certification: | ISO9001， RoHS |
| Warranty: | 2 Years | Shipping: | By Sea, By Express, By Air |
| Highlight: | jingpu NTC surface mount temp sensor,jingpu 0.3K surface mount temp sensor,jingpu 4500K ntc probe temperature sensor |
||
NTC Surface Mount Temperature Sensor For automobile Battery Pack Solar Inverter YF Welding Machine Control Cabinet
Product Description:

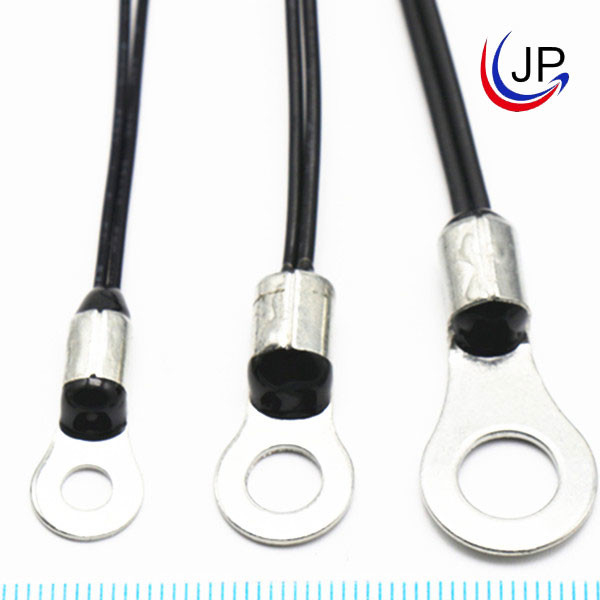

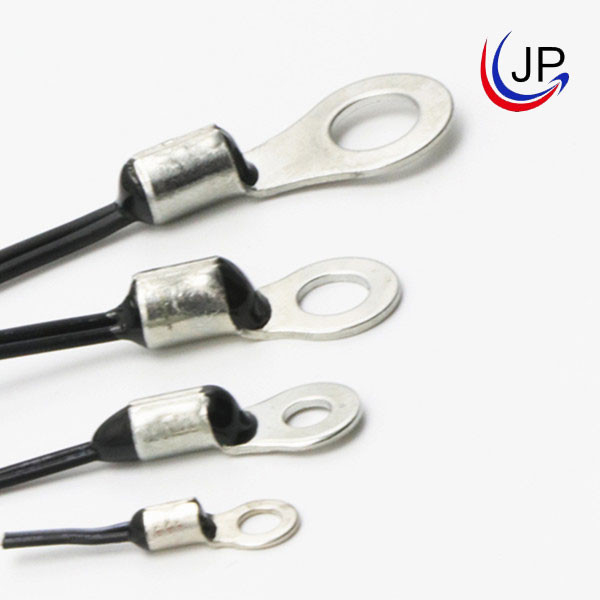

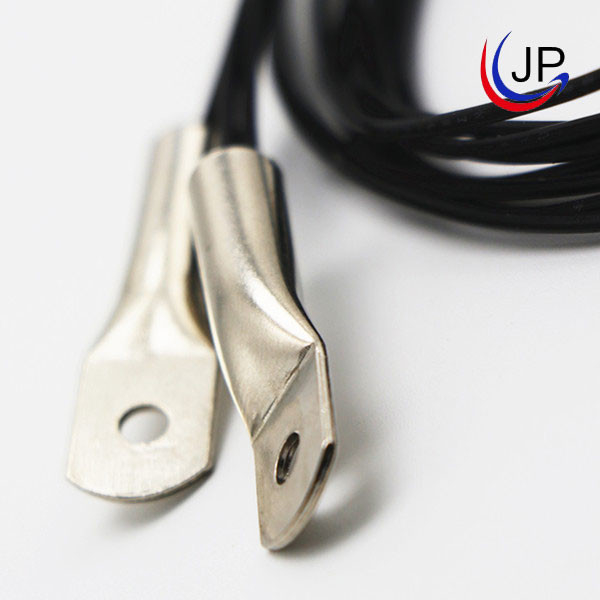

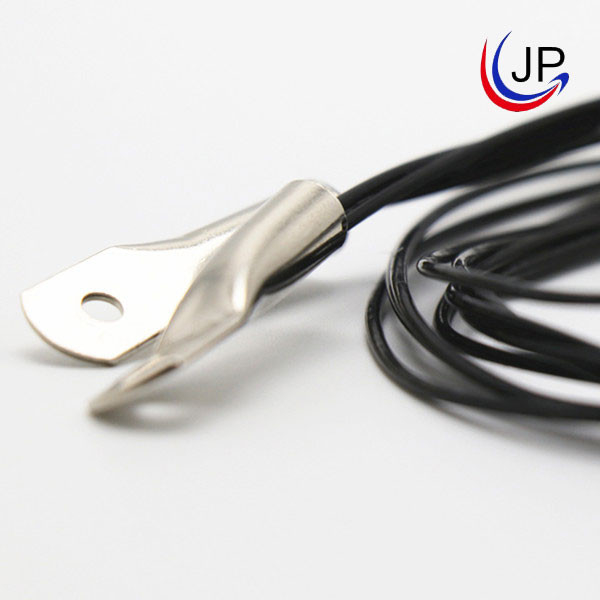

The surface mounting temperature sensor be consist of the insulated wire ( cable & PVC cable, XLPE insulated wire), NTC chip and epoxy resin, ring lug M2/M4/M5/M6/M8. The optional resistance value range is from 0.3kΩ to 2000kΩ, and the beta value range is from 2500K to 4500K. These surface mount temperature sensors are widely used for battery packs, solar inverters, YF, welding machines, control cabinets, etc.
Features:
Comply with RoHS standard
miniature designed
Interchangeability
surface mount temperature measurement
Operating temperature range(PVC lead wire): -20℃~105℃
Operating temperature range( / PTFE lead wire): -40℃~150℃
Sensing element electrically isolated from tag
Eyelets to fit M2/M4/M5/M6/M8 screw sizes
The range of wire lengths is from 1.97 inches to 78.74 inches (50mm to 2000mm)
Application:
EV/HEV Bus
Battery Covers
Power Distribution
Thermal Management
Heat Sinks
Panel Enclosures
Inverters
Welding machine
Control cabinet
Structure and Dimensions:
| Symbol | L | D | B | L1 | H | D1 |
| RNB5.5-4L(mm) | 300±10 | 4.3±0.2 | 9.5 | 19.6 | 6.8 | 5.5 |
| Symbol | L | D | B | L1 | H | D1 |
| RNB5.5-5(mm) | 600±6 | 5.3±0.2 | 9.5±0.2 | 19.8±0.5 | 6.8 | 2.5 |
Electrical Specification:
| Rec. at 25℃(kΩ) | Beta value | (In air)Pmax(mW) | δ(mW/℃) | thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | Approx.60 | Max.3.0 | Max.20 | -40℃~125℃ | 8~100 |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |
