| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | ISO9001, RoHs |
| Model Number: | MFP-2A |
| Minimum Order Quantity: | 1000 Pieces |
| Price: | Negotiable |
| Packaging Details: | Standard Packing |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Probe: | Ring Terminal | Cable: | 28AWG Wire |
|---|---|---|---|
| Sensor: | NTC Sensor | OEM/ODM: | Available |
| Customization: | Supportive | Shipping: | Air Freight, Sea Freight, Express |
| High Light: | jingpu Terminal Surface Mount Temperature Sensor,jingpu Ring Lug Surface Mount Temperature Sensor,jingpu BMS ntc probe sensor |
||

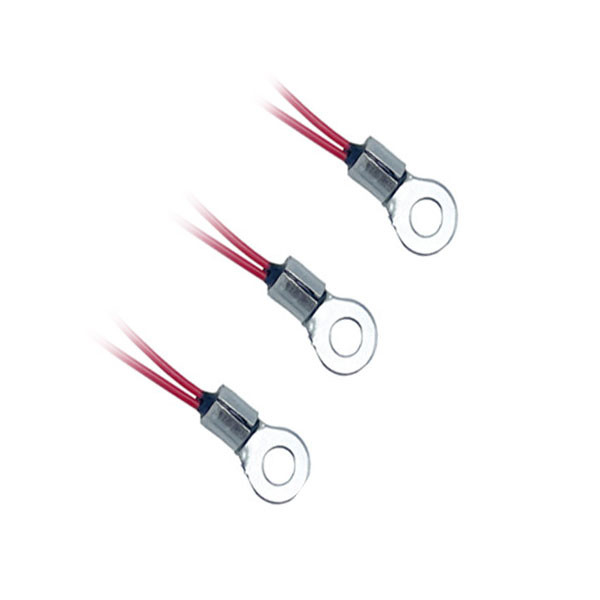

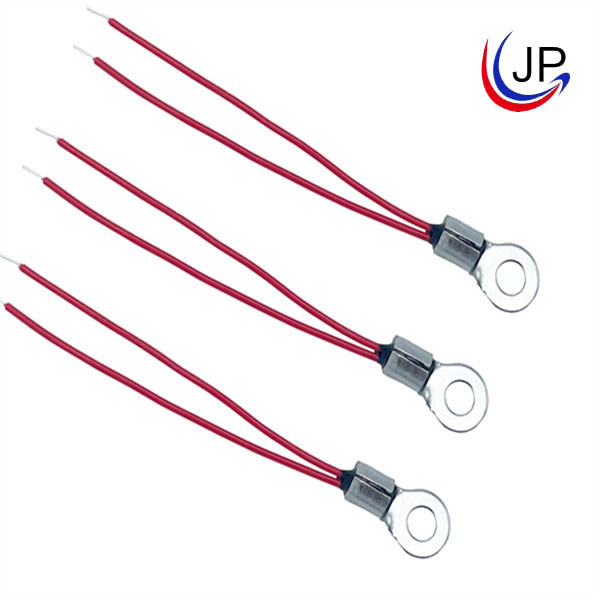

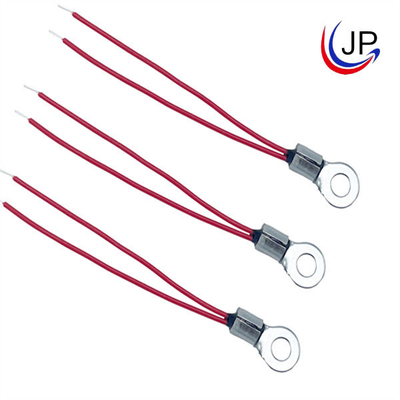

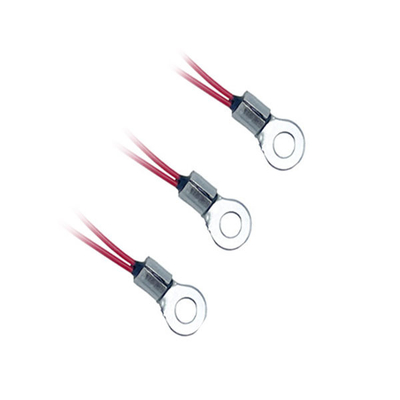

Ring Lug Terminal Surface Mount Temperature Sensor BMS NTC Probe Sensor
Biref Introduction:
The temperature probe is mainly composed of a plug, a cable, and a temperature sensor. It is used in conjunction with medical monitoring equipment with a body temperature monitoring function to collect and transmit the patient's body temperature signal. Products are suitable for newborns, infants, children, and adults.
Ring Terminal NTC Chip Surface Mount Temperature Sensor consists of the insulated wire ( cable & PVC cable, XLPE insulated wire), NTC chip, and epoxy resin/ring lug
Features:
RoHS
Interchangeability
surface mount temperature measurement
Cu/Sn RNB1.5-3
Operating temperature range:-40~125℃
Application:
Battery Covers
Power Distribution
Control cabinet
Electrical Specification:
| Rec. at 25℃(kΩ) | Beta value | (In air) Pmax(mW) | δ(mW/℃) | Thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | Approx.60 | / | / | -20℃~105℃(PVC wire)& -40℃~125℃( or XLPE wire) | 100~5000 |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |
