| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | ISO9001, RoHs |
| Model Number: | MFP-2A |
| Minimum Order Quantity: | 1000 Pieces |
| Price: | To be negotiated |
| Packaging Details: | Standard Packing |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Wire: | 28AWG Wire | Probe: | Cu / Sn RNB1.5-3 |
|---|---|---|---|
| Operating Temperature Range: | -40~125℃ | Sensor: | NTC |
| OEM/ODM: | Affirmative | Customization: | Available |
| After-sale Service: | Technical Support And Quality Assurance | Warranty: | Two Years |
| Highlight: | ISO9001 jingpu Surface Mount Temperature Sensor Ring Terminal,ISO9001 jingpu NTC Chip Surface Mount Temperature Sensor,ISO9001 jingpu ISO9001 temperature ntc sensor |
||

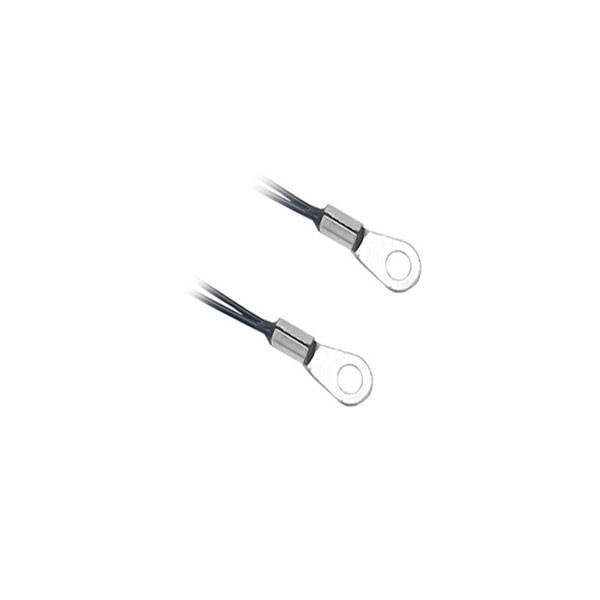

NTC Thermistor Surface Mount Temperature Sensor Ring Terminal
M3
wire
Cu/Sn 1.5-3
Operating temperature range:-40~125℃
NTC Chip Surface Mount Temperature Sensor Ring Terminal is mainly composed of a cable, a plug, and a temperature sensor. It is used in the conjunction with medical monitoring equipment for body temperature monitoring functions according to the collection and transition of the patient's body temperature signal. It is suitable for newborns, infants, children, and adults.
Brief Introduction:

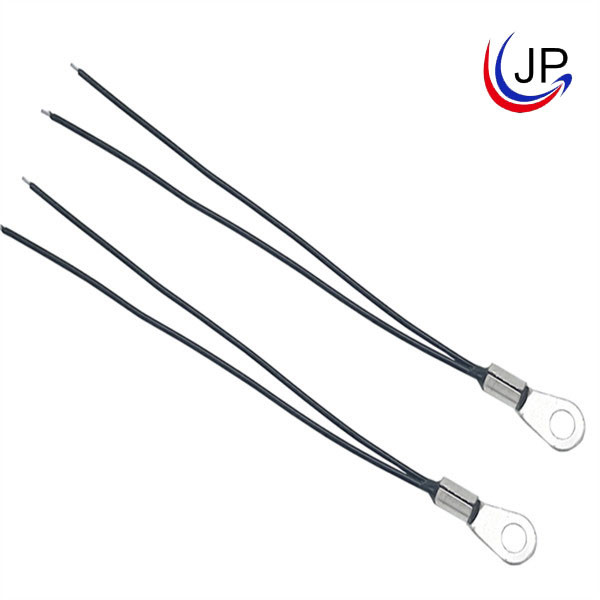

M3 RNB2-3.2 Ring Terminal NTC Chip Surface Mount Temperature Sensor consists of the insulated wire ( cable & PVC cable, XLPE insulated wire), NTC chip, and epoxy resin/ring lug M3.
Cu/Sn RNB1.5-3 Probe
28AWG WIRE 125℃
Features:
RoHS
Interchangeability
Surface mount temperature measurement
Cu/Sn RNB1.5-3
Operating temperature range:-40~125℃
Application:
Battery Covers
Power Distribution
Control cabinet
Electrical Specification:
| Rec. at 25℃(kΩ) | Beta value | (In air)Pmax(mW) | δ(mW/℃) | thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | Approx.60 | / | / | -20℃~105℃(PVC wire)& -40℃~125℃( or XLPE wire) | 100~5000 |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |
