| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JINGPU SENSOR |
| Certification: | CE, ISO13485, ISO9001 |
| Model Number: | MF5A-3 |
| Minimum Order Quantity: | 2000 Pieces |
| Price: | To be negotiated |
| Packaging Details: | Standard Packing |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Product: | Epoxy Encapsulated NTC Thermistor | Brand Name: | JINGPU SENSOR |
|---|---|---|---|
| Model Number: | MF5A-3 | After-sale Service: | 2 Years |
| ODM/OEM: | Yes | Custom: | Supportive |
| Shipping: | By Air, By Sea, Express | Packing: | Standard Packing |
| Material: | Epoxy, NTC Chip, CP Cable | ||
| High Light: | CE Epoxy Thermistor,ISO9001 Epoxy Thermistor,NTC thermistor temp sensor |
||
ISO9001 CE NTC Epoxy Thermistor For Home Appliance Automobile Medical Equipment Power Tool
Product Description:
MF5A-3 series epoxy encapsulated NTC Thermistor is manufactured by Jingpu Sensor. It consists of Copper clad steel lead wire, soldered NTC chip, and epoxy resin. The sensor features simple, functional, and high accuracy. The optional resistance value range is from 0.3kΩ to 2000kΩ, and the beta value range is from 2500K to 4500K. These epoxy-coated NTC Thermistors is widely applied for home appliances, automobile, medical equipment, power tool, etc.
Features:
•Comply with RoHS standard
•miniature designed
•High sensitivity to changes in temperature
•Suitable for temperature measurement, control, and compensation
•Standard resistance tolerances down to±1%
•good interchangeable
•Operating temperature range: -40℃~125℃
•Low cost, solid-state temperature sensor
Application:
• home appliances such as refrigerator, dryer, HVAC, etc
• Power tool
• Automotive parts
• Medical equipment such as monitors and catheters
Part Number Code:
Structure and Dimensions:(unit: mm)
| NO. | Name | Material Specification | QTY. |
| 1 | Chip | NTC Thermal Chip | 1 |
| 2 | Encapsulation | Epoxy resin | 1 |
| 3 | Wire | CP Cable | 2 |
Electrical Specification:
| Rec. at 25℃(kΩ) | Beta value | (In air) Pmax(mW) | δ(mW/℃) | Thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | Approx.60 | Max.3.0 | Max.20 | -40℃~125℃ | 8~100 |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |

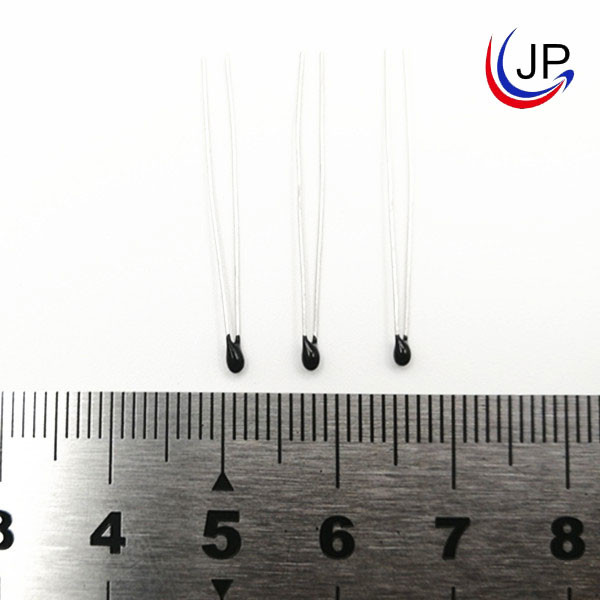

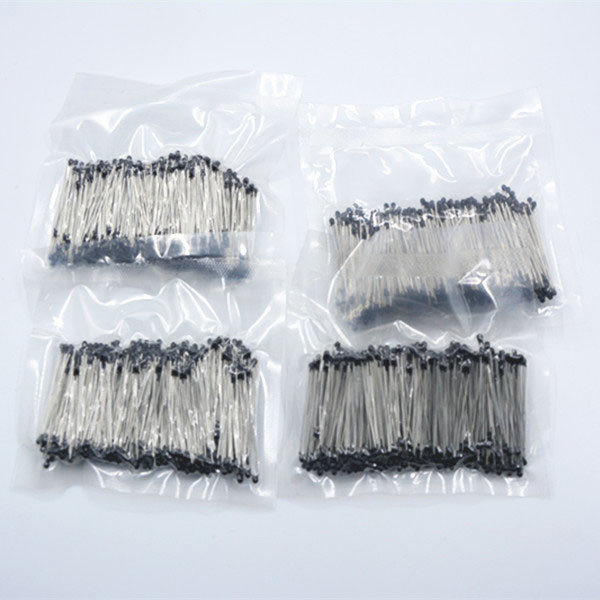

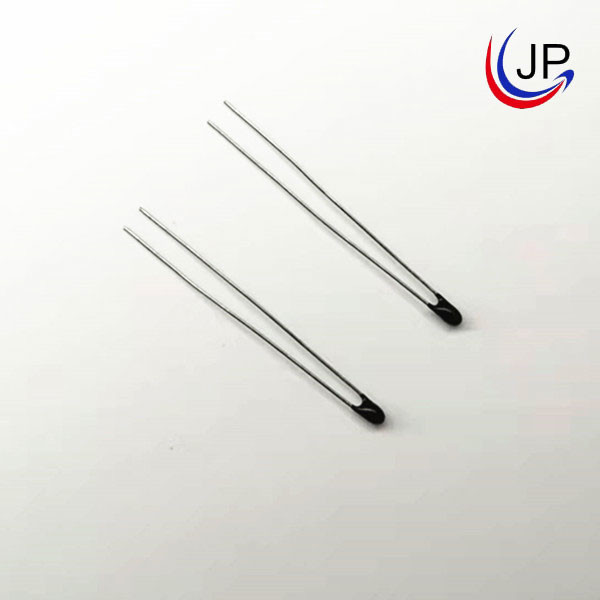

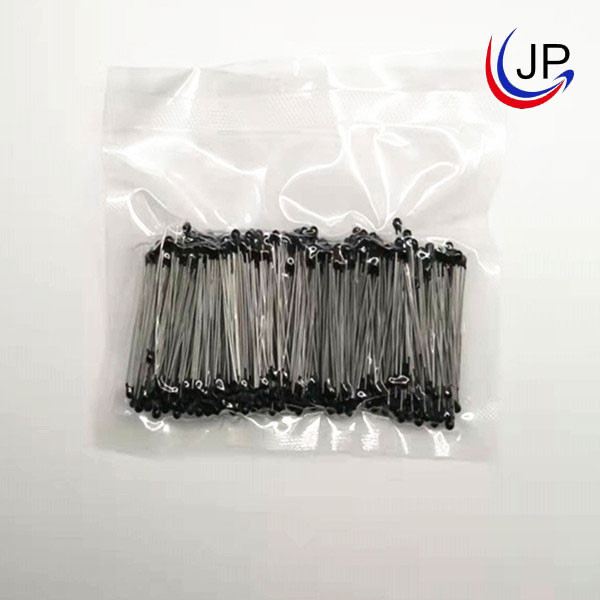

Product Display:
