| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | ISO9001, RoHS |
| Model Number: | MF5A-1 |
| Minimum Order Quantity: | 5000 Pieces |
| Price: | Negotiable |
| Packaging Details: | Standard Packing |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Operation Temperature Range: | -40℃~125℃ | R25℃: | 100kΩ±3% |
|---|---|---|---|
| B25/85: | 4132k±1% | Chip: | NTC Chip |
| Encapsulation: | Epoxy Resin | Feature: | Fast Response Time,Good Stability, |
| After-sale Service: | Quality Assurance | Warranty: | 2 Years |
| High Light: | NTC Chip Epoxy Thermistor,R25 Epoxy Thermistor,100k temperature ntc sensor |
||

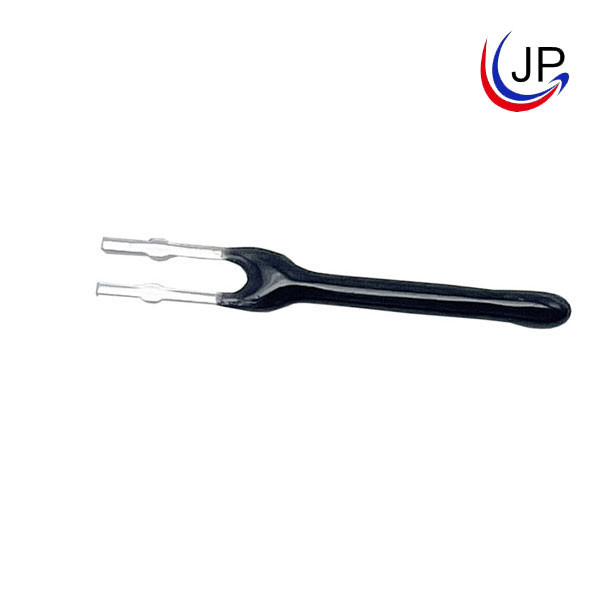

100k B25/85 4132K R25 NTC Chip Epoxy Thermistor For Fire Alarm
Brief Introduction:
This product is made of NTC elements, epoxy resin, and bare wire. It’s manufactured by Hefei Jingpu Sensor Technology Co., Ltd.
Features:
Small Epoxy bead
Good stability, fast response time
Operation temperature range: -40℃~125℃
R25℃=100kΩ±3%,B25/85=4132k±1%
Application:
Fire-fighting alarmer
Part Number Code:
Structure and Dimensions:
| Probe Size | L | L1 | D | H | d1 |
| 2.6*17.5mm | 17.5±1 | 3±1 | Maxφ2.6 | 2.5 | 1 |
| 2.6*19mm | 19±1 | 3±1 | |||
| 2.6*23mm | 23±1 | 3±1 | |||
| 2.6*26mm | 25±1 | 3±1 |
Electrical Specification:
| Product Specification | Rec. at T℃(KΩ) | Beta value | (In air) Pmax(mW) |
δ (mW/℃) |
Thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| A1B212□4200A□□□□L19 | R62=20.92 | B25/85=4200 | Approx.3.5 | Approx.0.7 | Max.5.0 | -40~125 | 19 |
| A1A104□4132B□□□□L17 | 100 | B25/85=4132 | 17 | ||||
| A1C104□4132B□□□□L23 | 100 | B25/85=4132 | 23 | ||||
| A1B332□3970F□□□□L25 | R100=3.3 | B25/50=3970 | 26 |

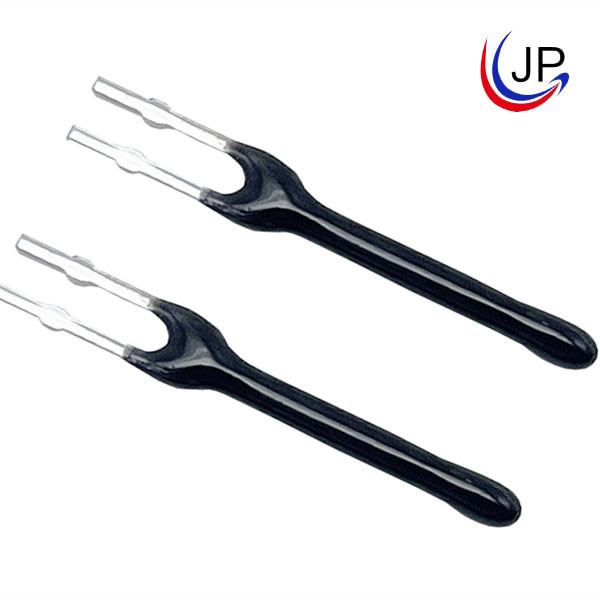

Other Product Images:
