| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | ISO9001, RoHS |
| Model Number: | MF5A-3 |
| Minimum Order Quantity: | 5000 Pieces |
| Price: | Negotiable |
| Packaging Details: | Carton Packing |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Resistance: | 50KΩ | Temperature Measurement Tolerance: | 25℃~45℃±0.1℃ |
|---|---|---|---|
| R25: | 50kΩ | B25/50: | 3950k±0.5% |
| Customization: | Available | Chip: | NTC Thermal Chip |
| Encapsulation: | Epoxy Resin Encapsulated | Cable: | CP Cable |
| High Light: | Epoxy Resin Coated ntc 3950 thermistor,50Kohm ntc 3950 thermistor,50k ohm thermistor |
||

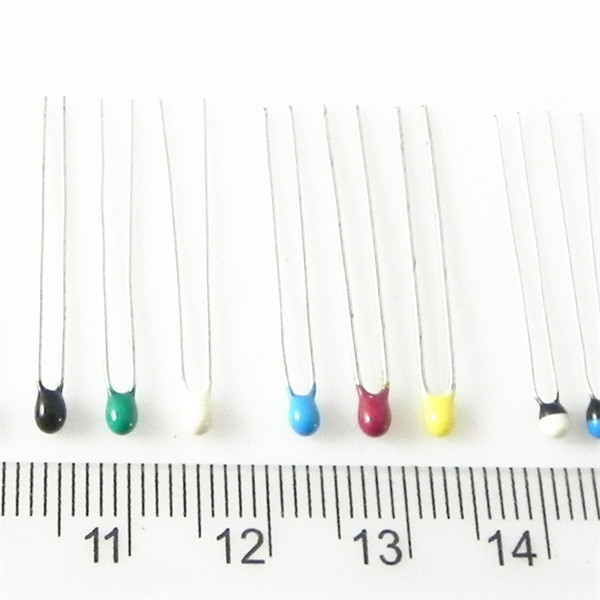

50Kohm Epoxy Resin Coated NTC 3950 Thermistor High Accuracy
Product Description:
50kΩ High Accuracy epoxy coated NTC thermistor, Temperature Measurement Tolerance is 25℃~45℃±0.1℃, It is applicable to medical equipment.
Features:
R25℃=50kΩ
B25/50=3950k±0.5%
Measurement Tolerance:25℃~45℃±0.1℃
Application:
Medical equipment
Structure and Dimensions:(unit: mm)
Electrical Specification:
| Rec. at 25℃(kΩ)+A2:G25+A2:G25 | Beta value |
(In air) Pmax(mW) |
δ(mW/℃) | Thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | Approx.60 | Max.3.0 | Max.20 | -40℃~125℃ | 8~100 |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |

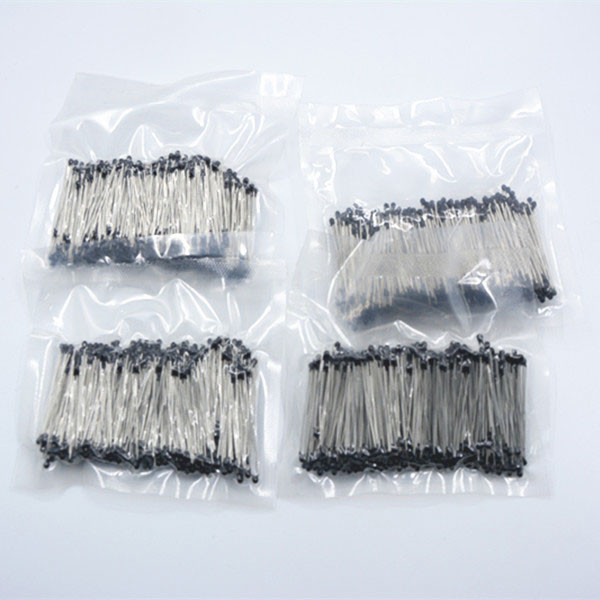

Other Product Images:
