Home Appliance NTC Thermistor Temperature Sensor

Basic Information
Place of Origin: Anhui, China
Brand Name: JINGPU SENSOR
Certification: CE, ISO13485, ISO9001
Model Number: MF5A-5
Minimum Order Quantity: 500 Pieces
Price: To be negotiated
Packaging Details: Standard Packing
Delivery Time: 2 Weeks
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 Million per Year
Detail Information
Brand Name: JINGPU SENSOR Product Name: NTC Epoxy Coated NTC Thermistor
Warranty: 2 Years OEM/ODM: Available
Customization: Available Shipping: By Air, By Sea, Express
Packing: Standard Packing Material: Epoxy Resin, NTC Chip, FEP Wire
Model Number: MF5A-5 Certification: CE, ISO13485, ISO9001
Highlight:

Home Appliance NTC Thermistor Temperature Sensor

,

ISO9001 ntc thermistor temperature sensor

,

CE ntc type thermistor


Product Description

NTC Epoxy Thermistor for Home appliance Automobile Power Tool Temperature Monitor



Product Description:


cable NTC Thermistor consists of FEP wire, NTC chip, and epoxy resin. Its features: simple, functional, and good accuracy. Its optional resistance value range from 0.3kΩ to 2000kΩ, and its beta value range from 2500K to 1500K. These cable NTC thermistors are widely used for home appliances, automotive, medical equipment, power tool, etc.



Features:


Comply with RoHS standard

miniature designed

good interchangeable

Wide Operating temperature range: -40℃~150℃



Application:


Home appliance

Automotive parts such as batteries, water temperature measurement

Power tool

Temperature monitoring, temperature measurement, temperature compensation



Part Number Code:


Home Appliance NTC Thermistor Temperature Sensor 0

Electrical Specification:


Rec. at 25℃(kΩ) Beta value (In air) Pmax(mW) δ(mW/℃) Thermal time constant τ(sec.) Operating Temperature Range TL-TH(℃) Total length
L(mm)
1 B25/85=3435 Approx.60 Max.3.0 Max.20 -20℃~105℃(PVC wire)& -40℃~125℃( or XLPE wire) 13.5~1000
1.5 B25/50=3850
1.5 B25/50=3935
2 B25/85=3550
2 B25/85=3935
2.08 B25/85=3580
2.2 B25/50=3935
3 B25/50=3950
5 B25/50=3470
5 B25/50=3950
8 B25/100=3988
10 B25/85=3435
10 B25/50=3470
10 B25/50=3935
10 B25/50=3950
20 B25/50=3950
47 B25/50=3950
50 B25/50=3950
50 B25/50=4200
100 B25/50=4200
200 B25/50=4200
500 B25/50=4450
1000 B25/85=4600



Structure and Dimensions:


Home Appliance NTC Thermistor Temperature Sensor 1

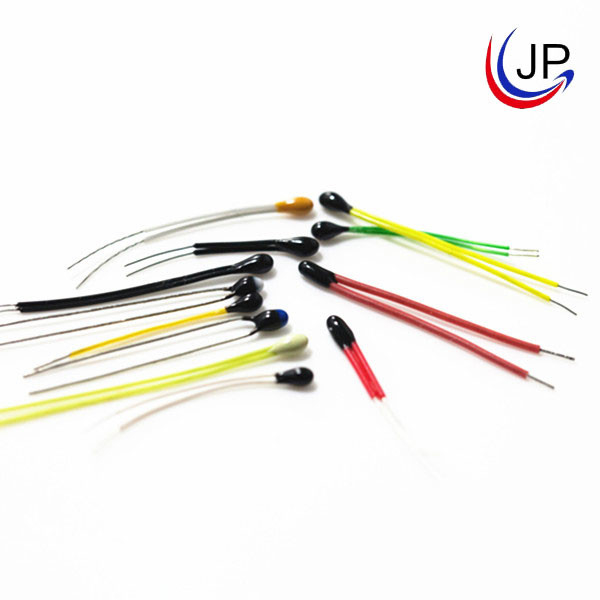

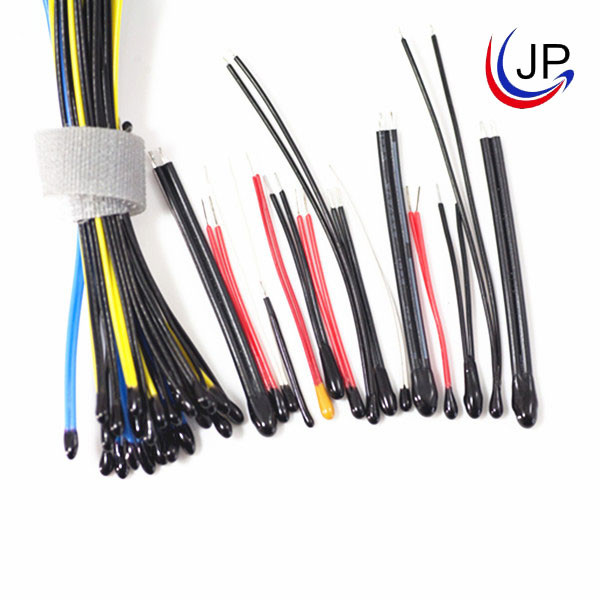

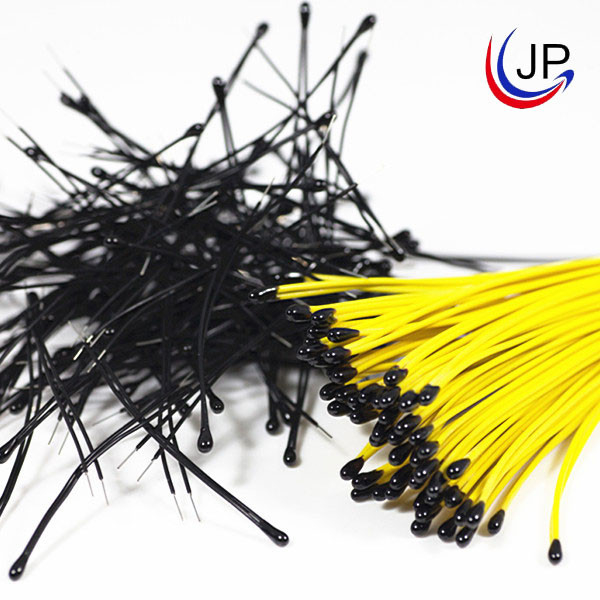

Product Display:


Home Appliance NTC Thermistor Temperature Sensor 2



Component:


NO. Name Material Specification QTY. Remarks
1 Chip NTC Thermal Chip 1  /
2 Encapsulation Epoxy resin 1  /
3 Wire Cable 2  /
