| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | CE, ISO13485, ISO9001 |
| Model Number: | MF5A-1 |
| Minimum Order Quantity: | 1000 Pieces |
| Packaging Details: | Standard Packing |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Product Name: | NTC Thermistor For Fire Alarm | Brand Name: | JINGPU SENSOR |
|---|---|---|---|
| Model Number: | MF5A-1 | Warranty: | 2 Years |
| OEM/ODM: | Available | Customization: | Available |
| Shipping: | By Air, By Sea, Express | Packing: | Standard Packing |
| Material: | NTC Element, Epoxy Resin And Bare Wire | Operating Temperature Range: | -40℃~125℃ |
| High Light: | Fire Alarm NTC Thermistor Probe,NTC Thermistor Probe ISO9001,CE ntc type temperature sensor |
||
Fire Alarm NTC Thermistor Probe ISO9001 NTC Type Temperature Sensor
Brief Introduction:
The NTC thermistor is made of NTC elements, epoxy resin, and bare wire. It’s manufactured by Hefei Jingpu Sensor Technology Co., Ltd.
Features:
Small Epoxy bead
Good stability, fast response time
Operating temperature range: -40℃~125℃
Application:
Fire-fighting alarmer
Part Number Code:
Structure and Dimensions:
| Probe Size | L | L1 | D | H | d1 |
| 2.6*17.5mm | 17.5±1 | 3±1 | Maxφ2.6 | 2.5 | 1 |
| 2.6*19mm | 19±1 | 3±1 | |||
| 2.6*23mm | 23±1 | 3±1 | |||
| 2.6*26mm | 25±1 | 3±1 |
Electrical Specification:
| Product Specification | Rec. at T℃(KΩ) | Beta value | (In air) Pmax(mW) |
δ (mW/℃) |
Thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| A1B212□4200A□□□□L19 | R62=20.92 | B25/85=4200 | Approx.3.5 | Approx.0.7 | Max.5.0 | -40~125 | 19 |
| A1A104□4132B□□□□L17 | 100 | B25/85=4132 | 17 | ||||
| A1C104□4132B□□□□L23 | 100 | B25/85=4132 | 23 | ||||
| A1B332□3970F□□□□L25 | R100=3.3 | B25/50=3970 | 26 |

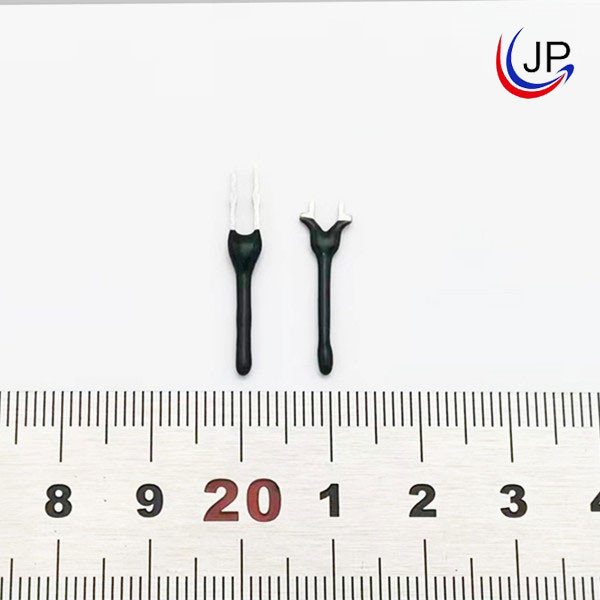

Product Display:
| NO. | Name | Material Specification | QTY. | Remarks |
| 1 | Chip | NTC Chip | 1 | / |
| 2 | Encapsulation | Epoxy resin | 1 | / |

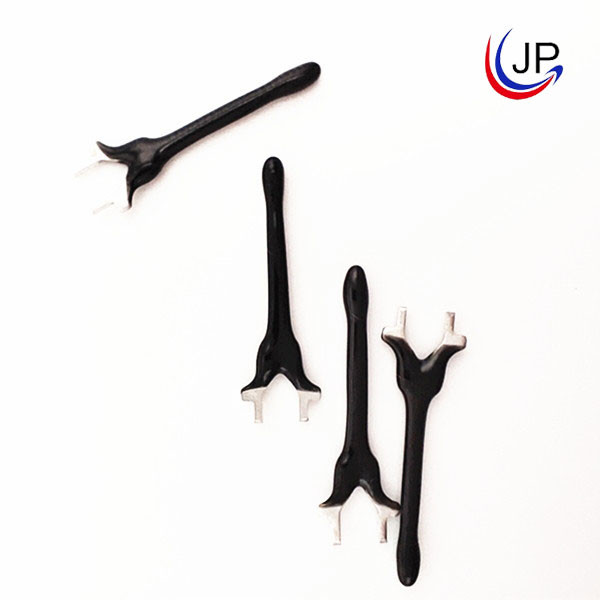

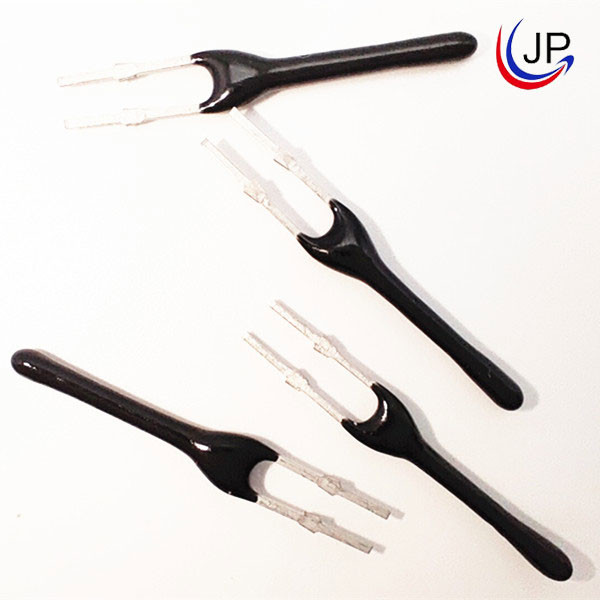

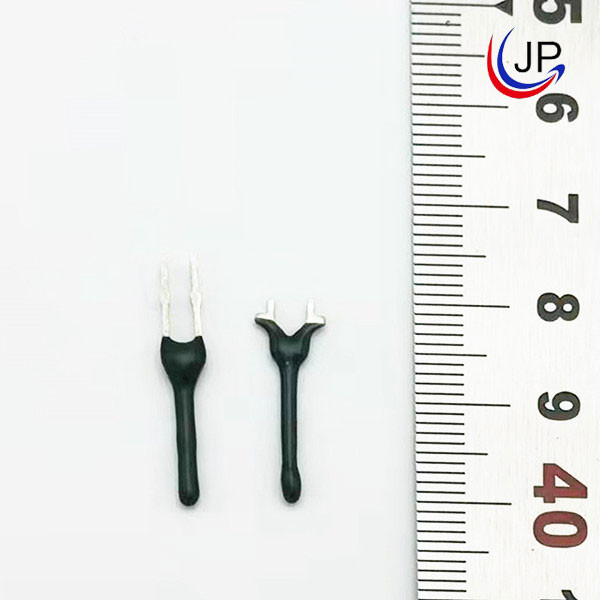

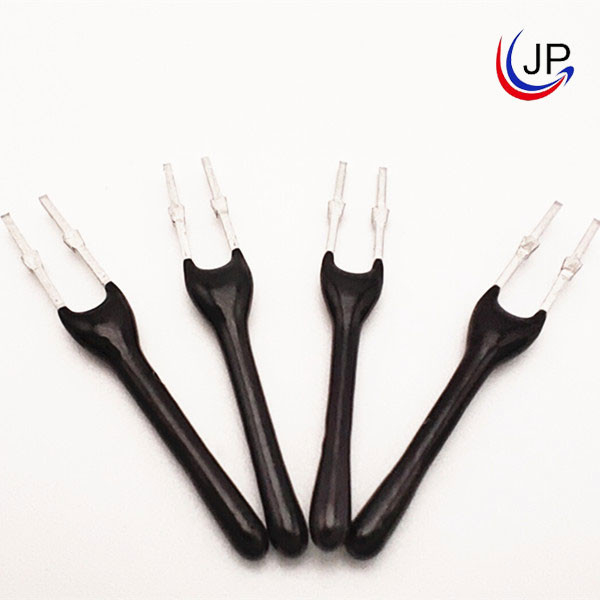

Other Product Images:
