| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | ISO9001, RoHS |
| Model Number: | MF5A-7 |
| Minimum Order Quantity: | 1000 Pieces |
| Price: | Negotiable |
| Packaging Details: | Standard Packing |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Wire: | Teflon 28awg (7/0.12) 200℃ | Operating Temperature Range: | -40℃~125℃ |
|---|---|---|---|
| Feature: | Fast Response | Probe: | Stainless Steel Probe |
| Resistance: | 50KΩ | B Value: | B25/50=3950K |
| High Light: | Temperature Measurement NTC Thermistor Probe,NTC Thermistor Probe Electric Kettle,50K ntc sensor probe |
||

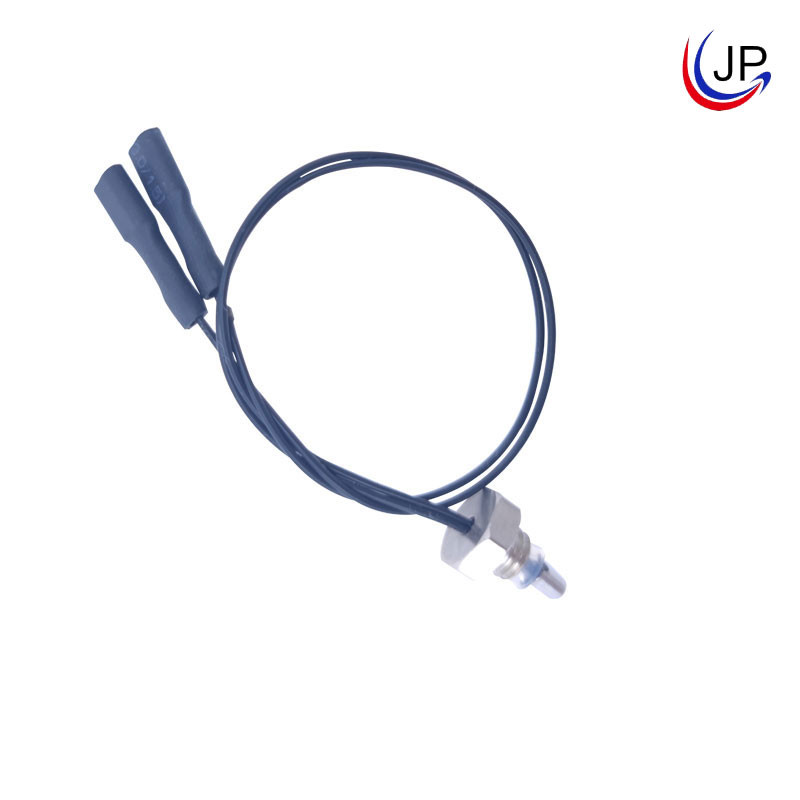

Temperature Measurement NTC Thermistor Probe Electric Kettle
Brief Introduction (Product Description):
This product is generally used in electric kettles and other small home appliances. The probe of the product is stainless steel, the wire is teflon 28awg (7/0.12) 200℃, and the resistance parameters are generally 50KΩ, B25/50=3950K.
Features:
Fast response
Comply with RoHS standard
Operating temperature range: -40℃~125℃
Easy to install
Stainless steel probe
Application:
Electric kettle
Electrical Specification:
| Rec.at 25℃(kΩ) | Beta value |
(In air) Pmax(mW) |
δ(mW/℃) | Thermaltime constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | Approx.60 | Max.3.0 | Max.20 | -40℃~125℃ | 8~100 |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |

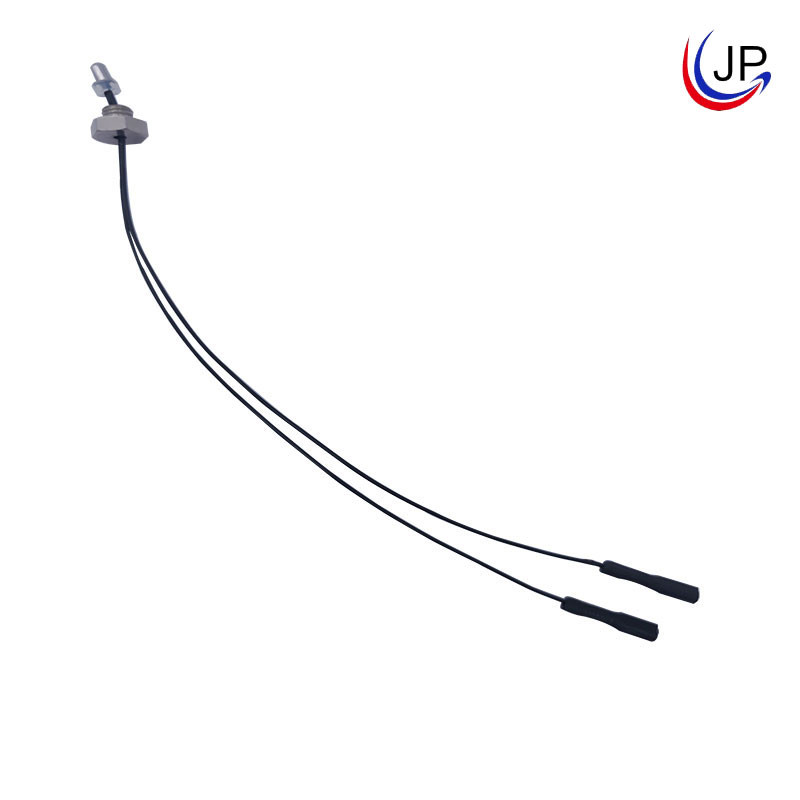

Other Product Images:
