| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | ISO9001, RoHS |
| Model Number: | MF5A-3 |
| Minimum Order Quantity: | 1000 Pieces |
| Price: | Negotiable |

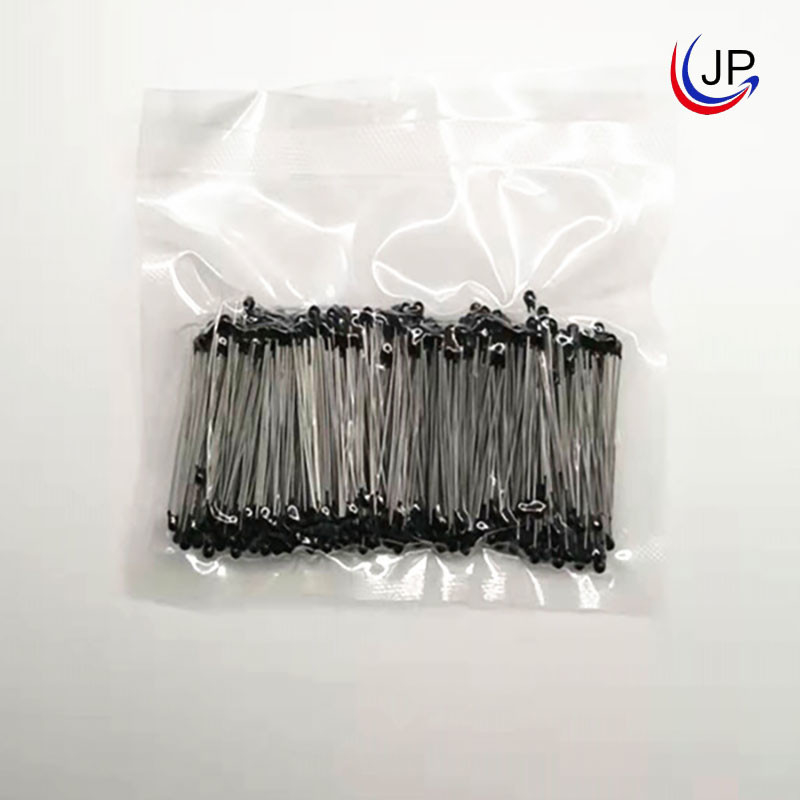

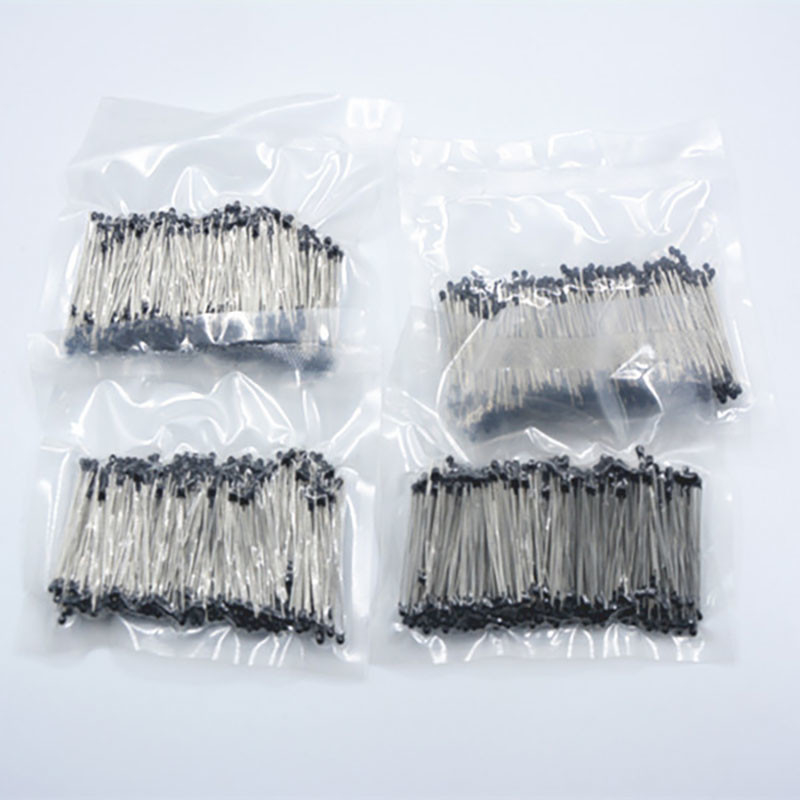

| Packaging Details: | Carton Packing |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| R25: | 2KΩ | B25/85: | 3550K Or 3580K |
|---|---|---|---|
| Operating Temperature Range: | -40℃~125℃ | Application: | For Water Temperature And Fuel Temperature Of Automobile |
| Customization: | Available | Chip: | NTC Thermistor |
| Encapsulation: | Epoxy Resin | Cable: | CP Cable |
| OEM/ODM: | Available | Shipping: | Air Freight, Sea Freight, Express |
| High Light: | Epoxy Coated ntc temperature sensor,2K ntc thermistor temperature sensor,3550K ntc temperature sensor |
||

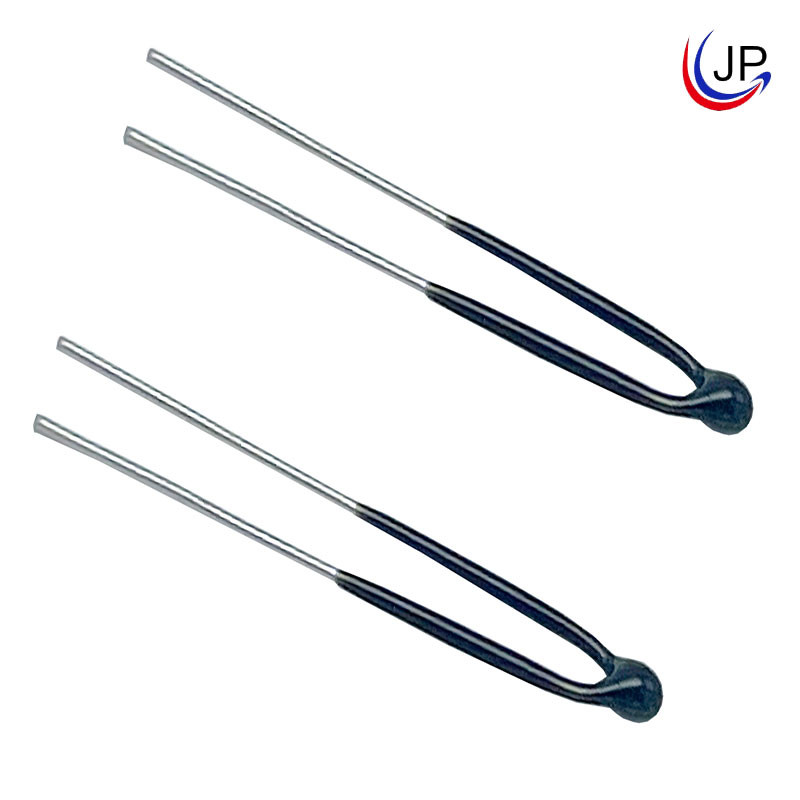

2K Epoxy Coated NTC Thermistor Temperature Sensor 3550K
Brief Instruction:
This product is an epoxy resin encapsulated head, the leads are tinned copper clad steel, and the chip parameters are generally R25℃=2kΩ, B25/85=3550K or B25/85=3580K. The control of the resistance accuracy is mainly at 80℃~ 100℃, with good replaceability.
Features:
Comply with RoHS standard
good interchangeable
Operating temperature range: -40℃~125℃
Application:
It is used for the measurement of automobile fuel temperature, water temperature, intake air temperature, engine temperature, etc.
Structure and Dimensions:(unit: mm)
Electrical Specification:
| Rec. at 25℃(kΩ)+A2:G25+A2:G25 | Beta value | (In air) Pmax(mW) | δ(mW/℃) | Thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | Approx.60 | Max.3.0 | Max.20 | -40℃~125℃ | 8~100 |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |

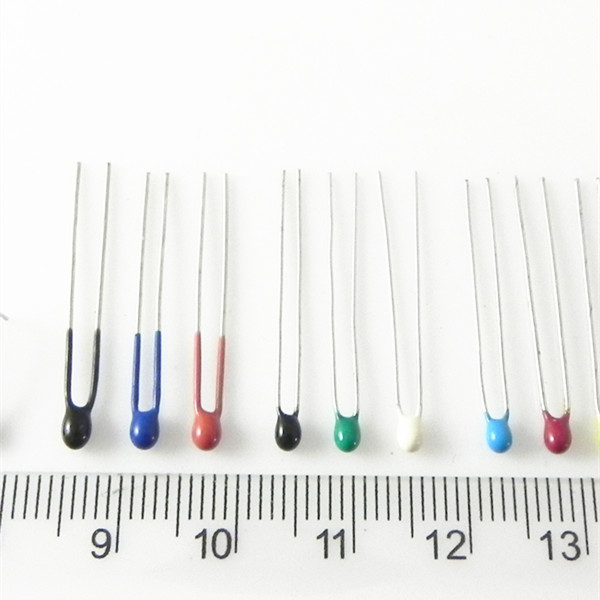

Other Product Images:
