| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | ISO9001 |
| Model Number: | MF5A-5 |
| Minimum Order Quantity: | 1000 Pieces |
| Price: | Negotiable |
| Packaging Details: | Carton Packing |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| R25℃: | 5kΩ&8kΩ&10kΩ | B25/85: | 3988k&3990k |
|---|---|---|---|
| Wide Operating Temperature Range: | -40℃~125℃ | Application: | Automotive Seat Heater |
| OEM/ODM: | Available | Customization: | Available |
| Shipping: | Air Freight, Sea Freight, Express | Certification: | ISO9001 |
| High Light: | Epoxy Coated ntc thermistor 10k 25 c,8k ntc thermistor 10k 25 c,5k ntc thermistors for temperature measurement |
||
5k 8k Epoxy Coated NTC Thermistor 10K 25 C For Automotive Seat Heater
Brief Introduction:

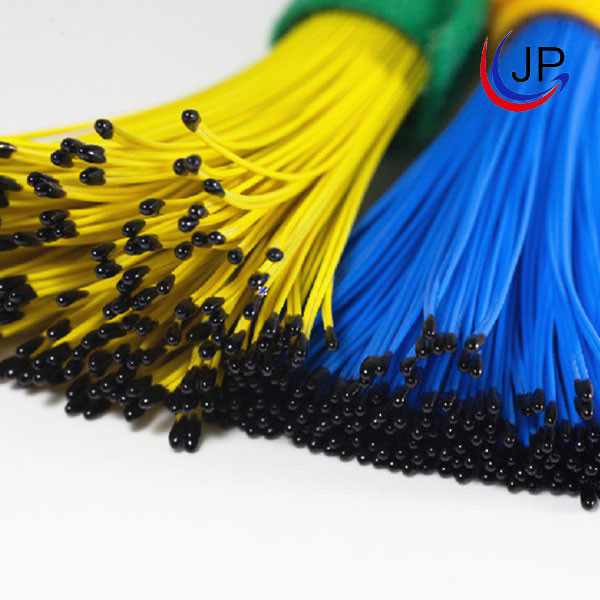

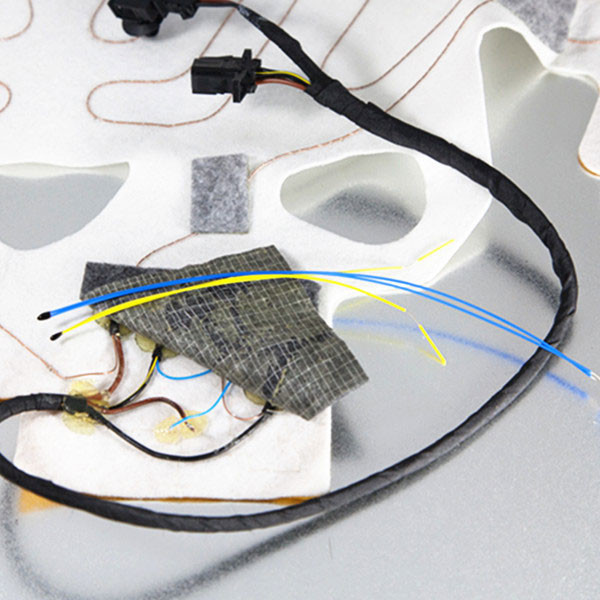

Generally FEP wire, the color blue, yellow, green, etc. Its resistance value R25℃=5kΩ&8kΩ&10kΩ, B25/85=3988k&B25/85=3990k. This seat heater thermistor sensor is mainly used for temperature monitoring in the automotive seat heater.
Features:
Comply with RoHS standard
Wide Operating temperature range: -40℃~125℃
Application:
Automotive Seat heater
Part Number Code:
Structure and Dimensions:
| 1 | Chip | NTC Chip | 1 | / |
| 2 | Encapsulation | Epoxy resin | 1 | / |
| 3 | Cable | PFA 28AWG (19/0.08) OD0.84 or PFA 28AWG (19/0.08) OD0.65 | 2 | / |
Standard packing (inner packing): 500pcs/polybag
Electrical Specification:
| Rec. at 25℃(kΩ) | Beta value |
(In air) Pmax(mW) |
δ(mW/℃) | Thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | Approx.60 | Max.3.0 | Max.20 | -40℃~125℃ ( wire) | 13.5~1000 |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |
Operation Notice:
1. Application: Temperature measure and control；
2. The current flowing through the NTC is controlled within the Pmax range to avoid the measurement error caused by the self-heating of the component.
3. Avoid excessive heat shock, The hot air blow should beat at least 30mm to the probe in case a heat-shrink protection tube needs to be attached.
4. Storage Temperature -10℃～40℃,≤75%RH； Avoid a corrosive gas and sunlit environment; After opening the package, it needs to be sealed again.
