| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | ISO9001, RoHS |
| Model Number: | MF5A-3 |
| Minimum Order Quantity: | 1000 Pieces |
| Price: | Negotiable |
| Packaging Details: | Carton Packing |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Resistance: | 0.3KΩ~ 2000KΩ | B Value: | 2500k ~ 4500k |
|---|---|---|---|
| Operating Temperature Range: | -40℃~125℃ | Application: | Vehicle, Circuit, Electric Tool, Battery |
| Tolerance: | ±0.1% | Chip: | NTC Thermistor |
| Encapsulation: | Epoxy Resin | Cable: | CP Cable |
| Highlight: | 2000K Epoxy Coated NTC Thermistor Probe,2000K NTC Thermistor Probe 0.3K,2000K ntc probe sensors |
||

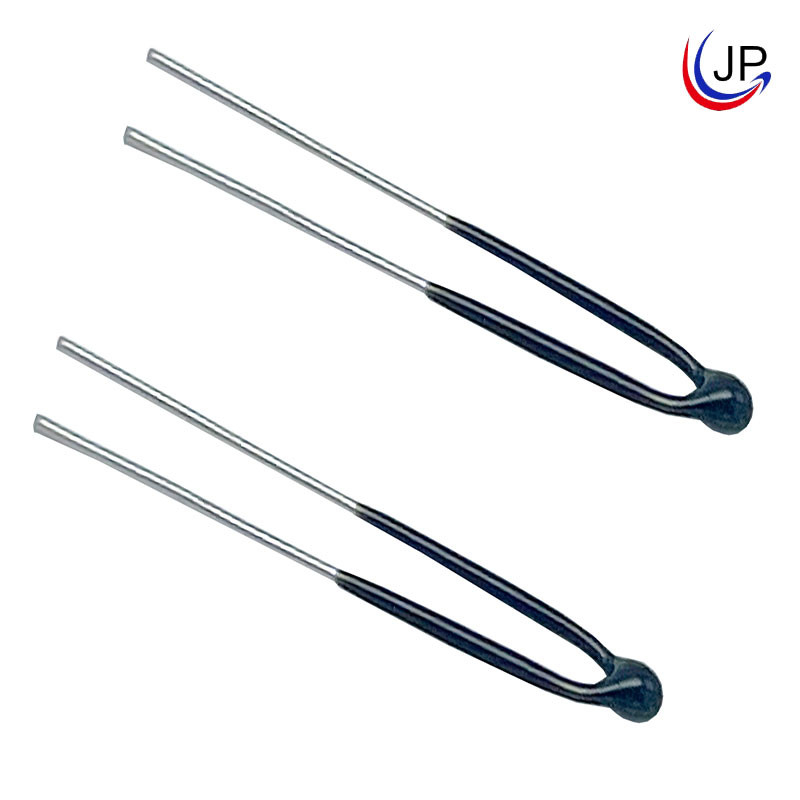

Epoxy Coated NTC Thermistor Probe 0.3K to 2000K For Vehicle Circuit Electric Tool Battery
Brief Introduction:
MF5A-3 series epoxy coated NTC Thermistor be manufactured from Hefei Jingpu Sensor Technology Co., Ltd. It’s composed of Copper clad steel lead wire, soldered NTC chip, and epoxy resin. The sensor features simple, functional, and high accuracy. The optional resistance value range from 0.3kΩ to 2000kΩ, and the beta value range is from 2500K to 4500K. These epoxy-coated NTC Thermistors are widely applied for home appliances, automotive, medical equipment, power tool, etc.
Features:
•Comply with RoHS standard
•miniature designed
•good interchangeable
•Operating temperature range: -40℃~125℃
•Low cost, solid-state temperature sensor
•High sensitivity to changes in temperature
•Suitable for temperature measurement, control, and compensation
•Standard resistance tolerances down to±1%
Application:
Vehicle, circuit, electric tool, battery
Structure and Dimensions:(unit: mm)
Electrical Specification:
| Rec. at 25℃(kΩ)+A2:G25+A2:G25 | Beta value | (In air) Pmax(mW) | δ(mW/℃) | Thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | Approx.60 | Max.3.0 | Max.20 | -40℃~125℃ | 8~100 |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |

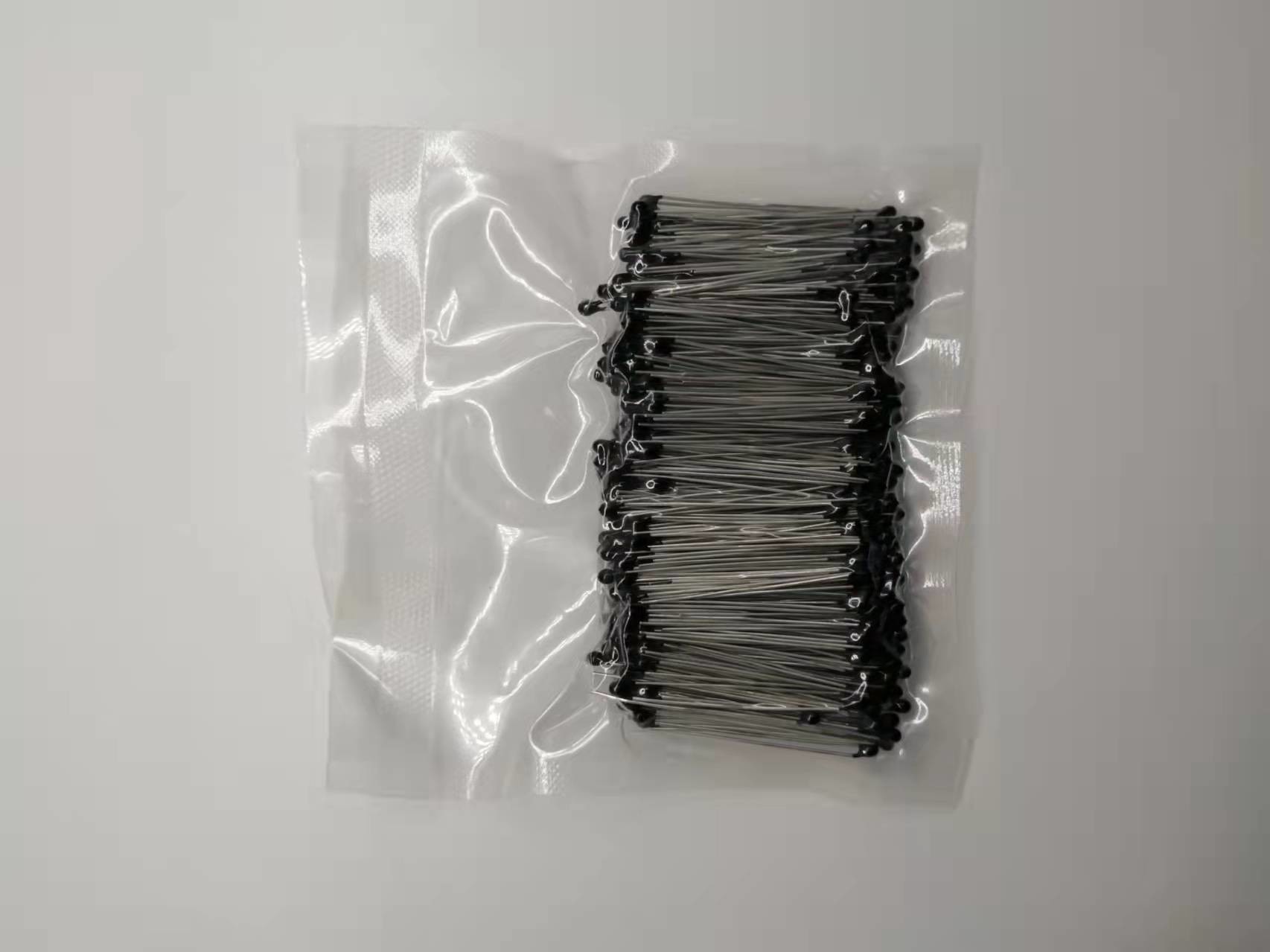

Standard packing (inner packing): 500pcs/polybag
