| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | ISO9001, RoHS |
| Model Number: | MF5A-3 |
| Minimum Order Quantity: | 5000 Pieces |
| Price: | Negotiable |

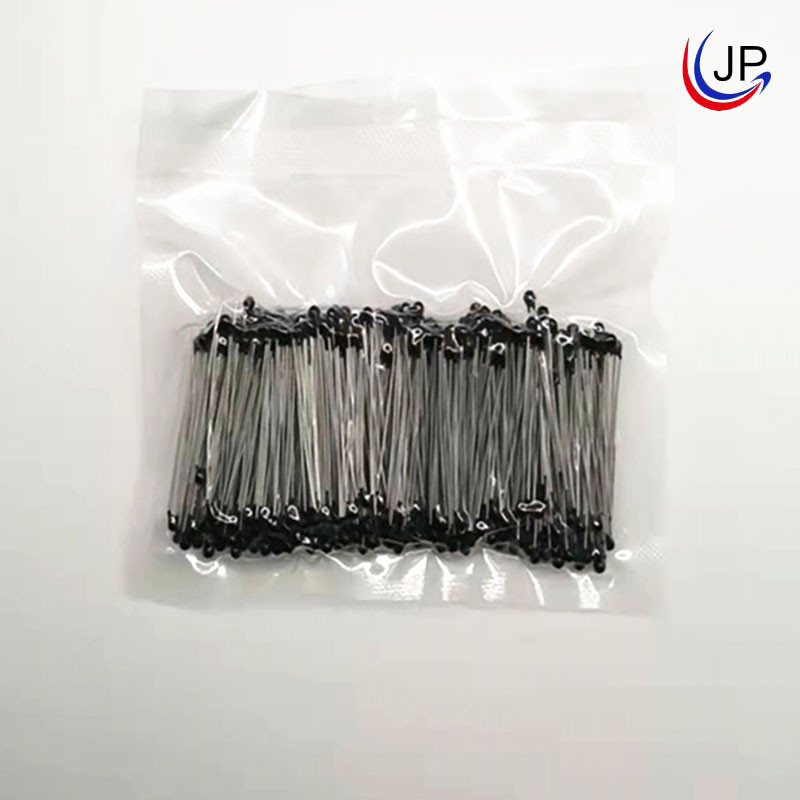

| Packaging Details: | Carton Packing |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Resistance: | 2.252KΩ | R25: | 50kΩ |
|---|---|---|---|
| B25/50: | 3950k | Customization: | Available |
| Chip: | NTC Thermal Chip | Encapsulation: | Epoxy Resin Encapsulated |
| Cable: | CP Cable | ||
| High Light: | Epoxy Resin Coated ntc 50 ohm,3950k ntc 50 ohm,R25 ntc probe sensor |
||

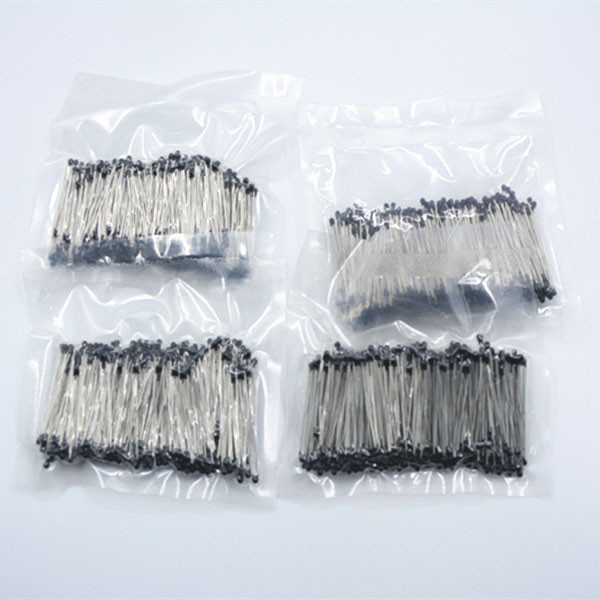

3950k Epoxy Resin Coated R25 50KOhm NTC Thermistor
Features:
R25℃=50kΩ(±1%,±2%,±3%,±5%)
B25/50=3950k(±1%,±2%,±3%,±5%)
Application:
Medical equipment

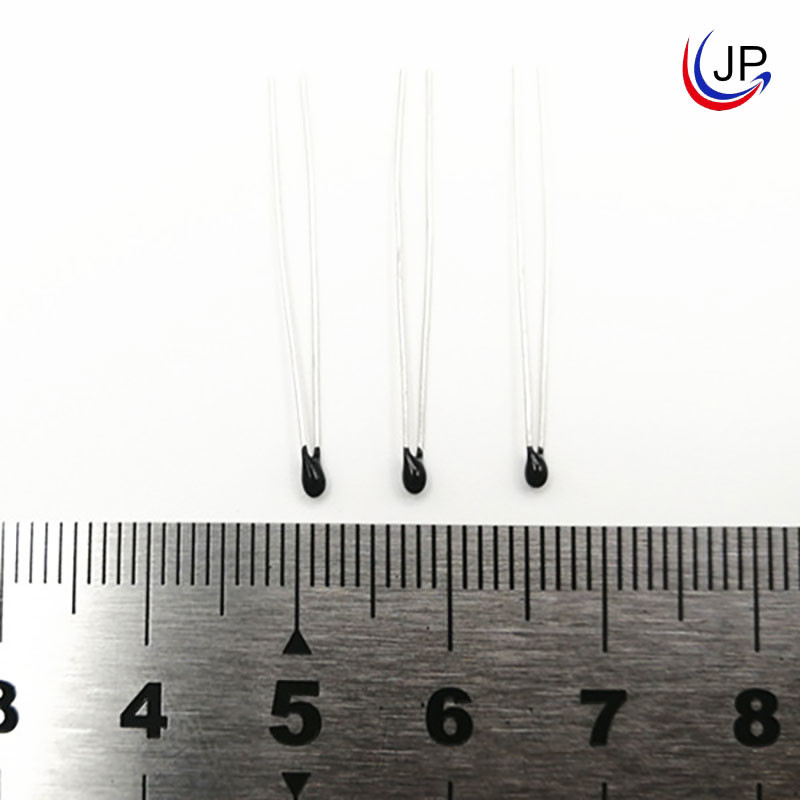

Structure and Dimensions:(unit: mm)
Electrical Specification:
| Rec. at 25℃(kΩ)+A2:G25+A2:G25 | Beta value | (In air Pmax(mW) | δ(mW/℃) | hermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | Approx.60 | Max.3.0 | Max.20 | -40℃~125℃ | 8~100 |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |
