| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JINGPU SENSOR |
| Certification: | CE, ISO13485, ISO9001 |
| Model Number: | MF5A-3 |
| Minimum Order Quantity: | 2000 Pieces |
| Price: | To be negotiated |
| Packaging Details: | Standard Packing |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Product Name: | Epoxy Coated NTC Thermistor | Brand Name: | JINGPU SENSOR |
|---|---|---|---|
| Model Number: | MF5A-3 | Warranty: | 2 Years |
| OEM/ODM: | Available | Customization: | Available |
| Shipping: | By Air, By Sea, Express | Packing: | Standard Packing |
| Material: | Epoxy Resin, Chip, CP Cable | ||
| High Light: | Epoxy thermistor temperature sensor,3950k thermistor temperature sensor,47K ntc 3950 |
||
47Kohm 3950k NTC Epoxy Thermistor Temperature Sensor
Brief Introduction:
47Kohm 3950k NTC Epoxy Thermistor Temperature Sensor is manufactured by Hefei Jingpu Sensor Technology Co., Ltd. It’s composed of Copper clad steel lead wire, soldered NTC chip, and epoxy resin.
Features:
•Comply with RoHS standard
•miniature designed
•good interchangeable
•Operating temperature range: -40℃~125℃
• Low-cost, solid-state temperature sensor
•High sensitivity to changes in temperature
•Suitable for temperature measurement, control, and compensation
•Standard resistance tolerances down to±1%
R25=47KΩ
B25/50=3950k
Application:
• Home appliances such as refrigerator, dryer, HVAC, etc
• Automotive parts
• Medical equipment such as monitors and catheters
• Power tool
Part Number Code:
Structure and Dimensions:(unit: mm)
| NO. | Name | Material Specification | QTY. |
| 1 | Chip | NTC Thermal Chip | 1 |
| 2 | Encapsulation | Epoxy resin | 1 |
| 3 | Wire | CP Cable | 2 |
Electrical Specification:
| Rec. at 25℃(kΩ) | Beta value | (In air) Pmax(mW) | δ(mW/℃) | Thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | Approx.60 | Max.3.0 | Max.20 | -40℃~125℃ | 8~100 |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |

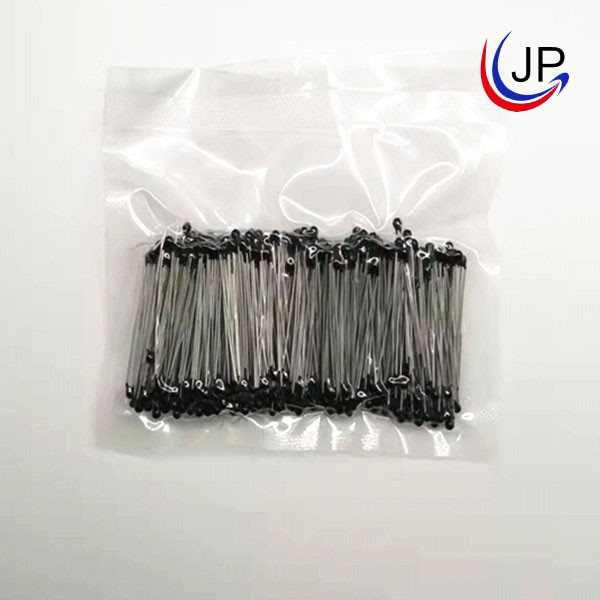

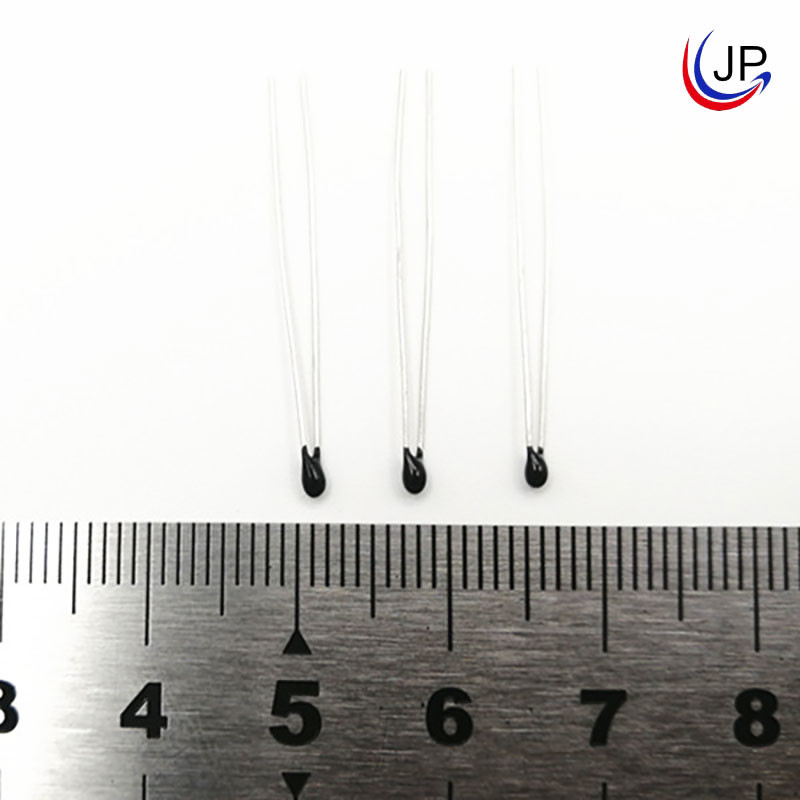

Product Display:
