| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JINGPU SENSOR |
| Certification: | ISO9001, RoHS |
| Model Number: | MF5A-3 |
| Minimum Order Quantity: | 500 Pieces |
| Price: | To be negotiated |

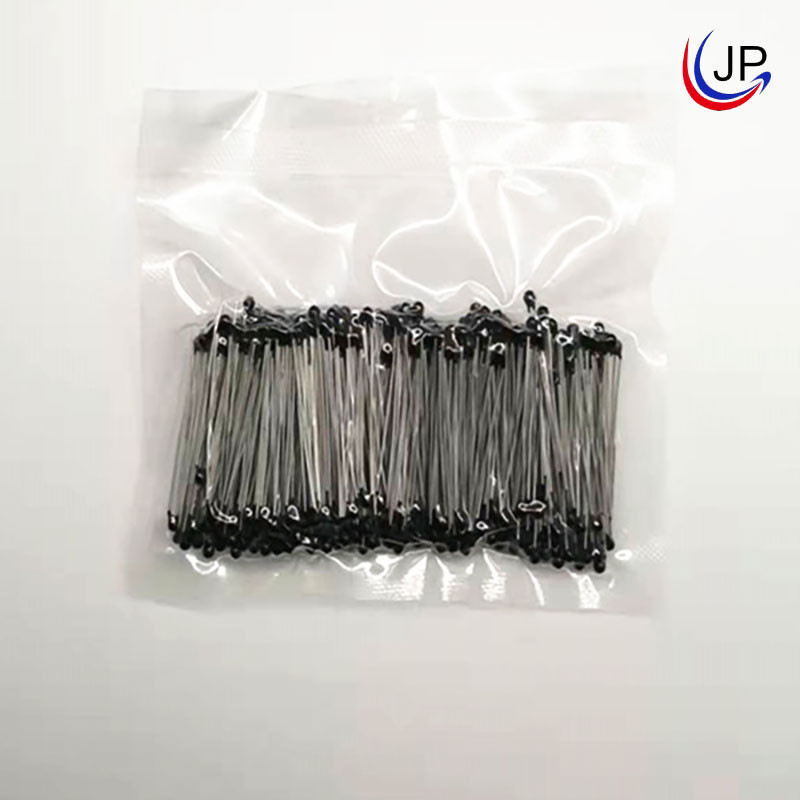

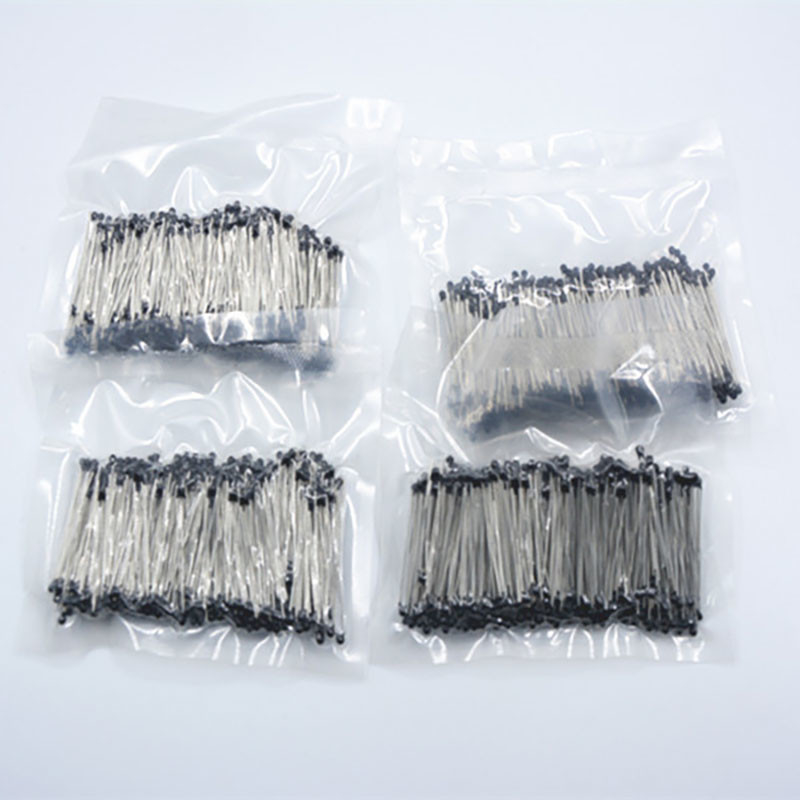

| Packaging Details: | Carton Packaging |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Resistance: | 0.3kΩ To 2000kΩ | B Value: | 2500K To 4500K |
|---|---|---|---|
| Operating Temperature Range: | -40℃~125℃ | Application: | Spare Parts Of Vehicles |
| Tube: | Tube | Coating: | Epoxy Resin Encapsulated |
| High Light: | Epoxy Coated ntc thermistor temperature sensor,3550k ntc thermistor temperature sensor,2K ntc temperature probe |
||
2K 3550k Epoxy Coated NTC Thermistor Temperature Sensor For Vehicles
Product Description:

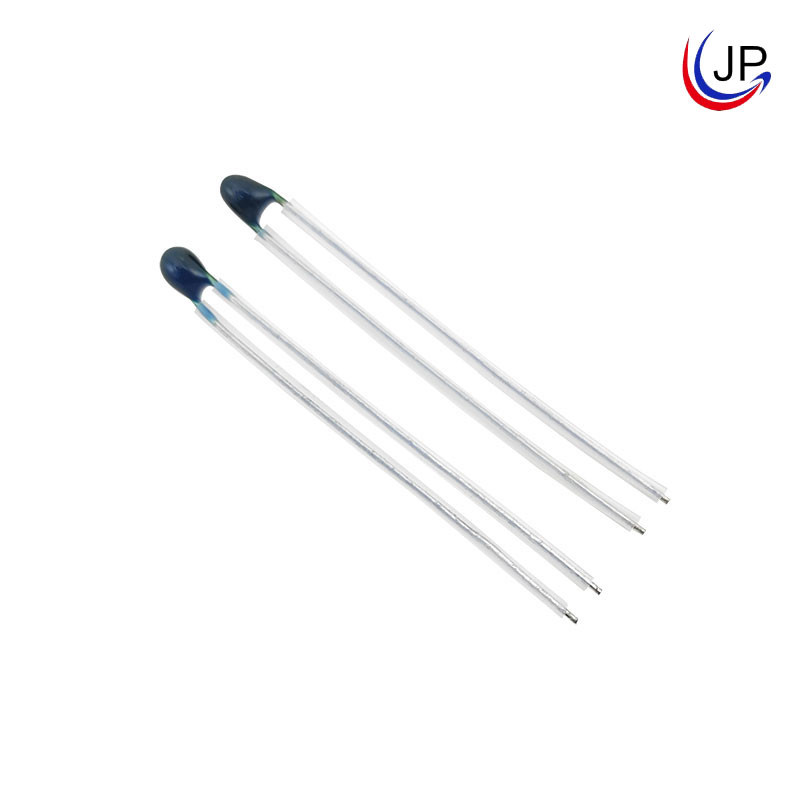

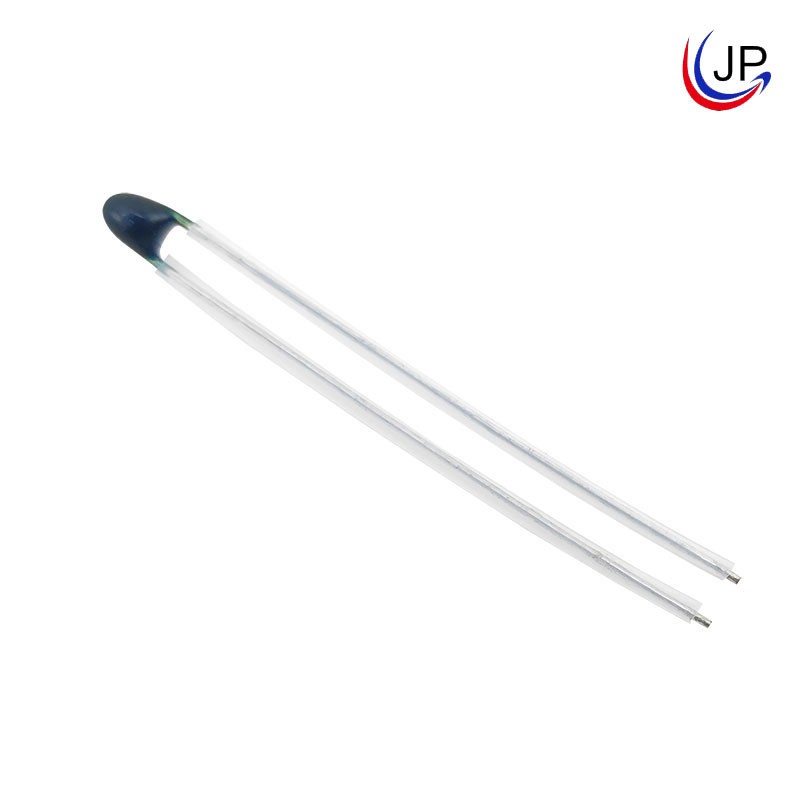

2KΩ3550k MF5A-3 series epoxy coated NTC Thermistor, the lead wire is insulated tube. It’s composed of Copper clad steel lead wire, soldered NTC chip and epoxy resin. The optional resistance value range from 0.3kΩ to 2000kΩ, and beta value range from 2500K to 4500K. etc.
Features:
Comply with RoHS standard
Miniature designed
Good interchangeable
Operating temperature range: -40℃~125℃
Low-cost, solid-state temperature sensor
High sensitivity to changes in temperature
Suitable for temperature measurement, control and compensation
Application:
Automotive spare parts
Structure and Dimensions:(unit: mm)
Electrical Specification:
| Rec. at 25℃(kΩ)+A2:G25+A2:G25 | Beta value | (In air) Pmax(mW) | δ(mW/℃) | Thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | Approx.60 | Max.3.0 | Max.20 | -40℃~125℃ | 8~100 |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |
