| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JINGPU SENSOR |
| Certification: | ISO9001, RoHS |
| Model Number: | MF5A-3 |
| Minimum Order Quantity: | 500 Pieces |
| Price: | To be negotiated |

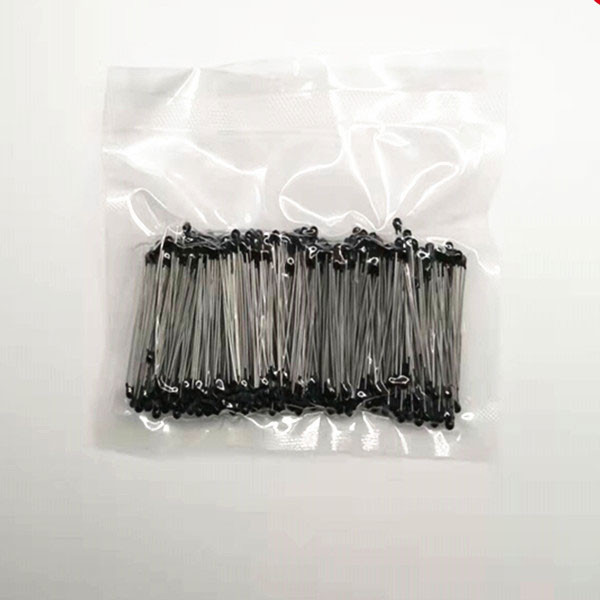

| Packaging Details: | Standard Packaging |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Resistance Value: | 0.3kΩ To 2000kΩ | Beta Value: | 2500K To 4500K |
|---|---|---|---|
| Operating Temperature Range: | -40℃~125℃ | Chip: | NTC Thermistor |
| Coating: | Epoxy Resin | Cable: | CP Cable |
| High Light: | Epoxy Coated high temperature ntc thermistor,high temperature ntc thermistor 0.3k,2000k high temperature thermistor |
||

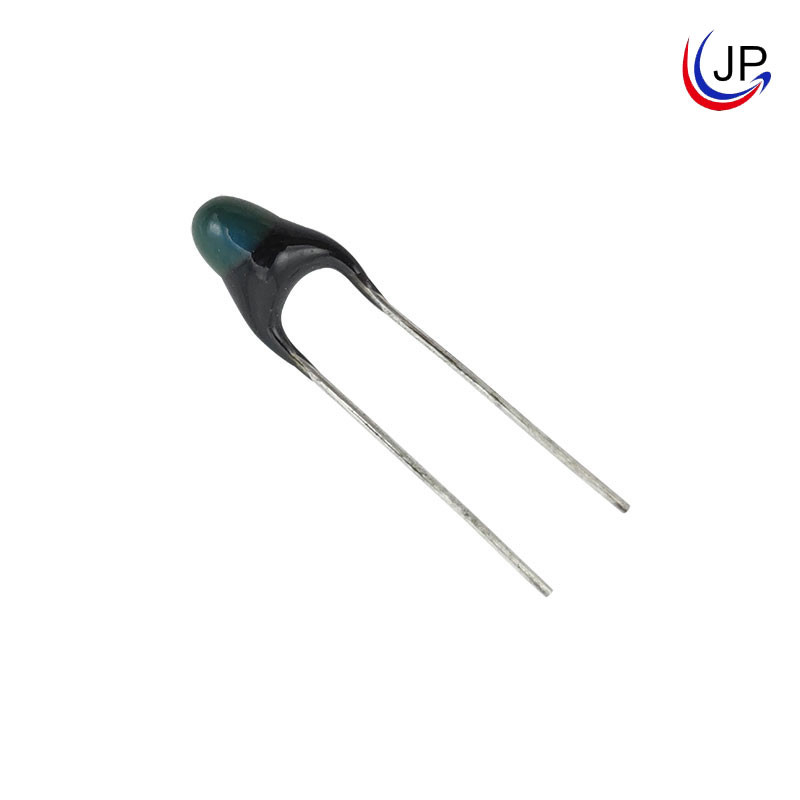

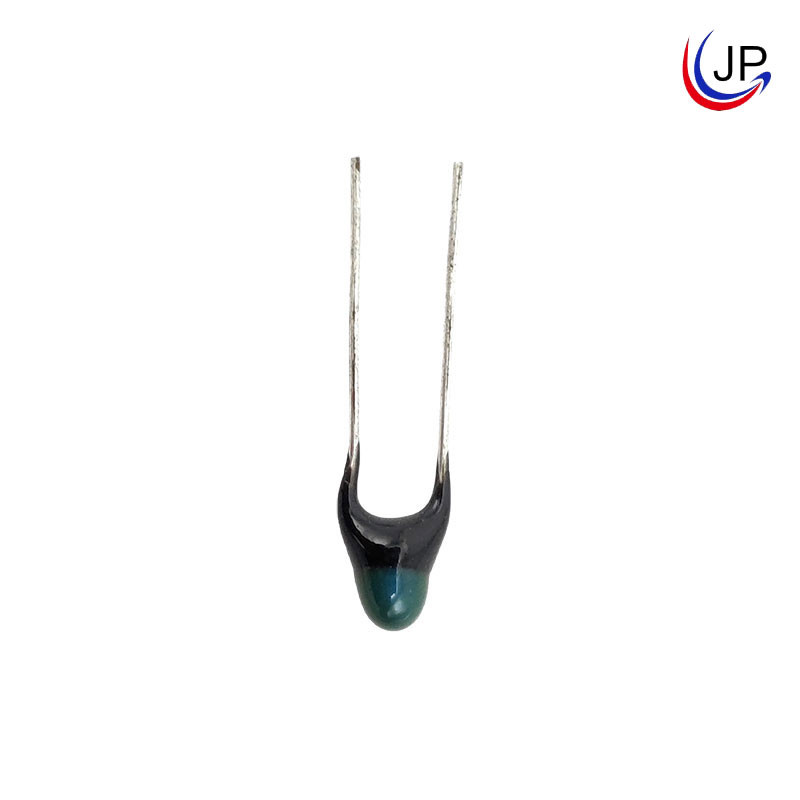

Epoxy Coated High Temperature NTC Thermistor 0.3k To 2000k
Product Description:
Epoxy Coated High Temperature NTC Thermistor 0.3k To 2000k is composed of Copper clad steel lead wire, soldered NTC chip and epoxy resin. The optional resistance value range from 0.3kΩ to 2000kΩ, and the beta value range is from 2500K to 4500K.
Features:
•Comply with RoHS standard
•miniature designed
•good interchangeable
•Operating temperature range: -40℃~125℃
• Low-cost, solid-state temperature sensor
•Suitable for temperature measurement, control, and compensation
Application:
• home appliances such as refrigerator, dryer, HVAC, etc
• Automotive parts
• Medical equipment such as monitors and catheters
Structure and Dimensions:(unit: mm)
Electrical Specification:
| Rec. at 25℃(kΩ) | Beta value | (In air) Pmax(mW) | δ(mW/℃) | Thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | Approx.60 | Max.3.0 | Max.20 | -40℃~125℃ | 8~100 |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |
