| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JINGPU SENSOR |
| Certification: | ISO9001, RoHS |
| Model Number: | MF5A-4 |
| Minimum Order Quantity: | 500 Pieces |
| Price: | To be negotiated |
| Packaging Details: | Standard Packaging |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Resistance: | 0.3kΩ To 2000kΩ | B Value: | 2500K To 4500K |
|---|---|---|---|
| Operating Temperature Range: | -40℃~125℃ | Chip: | NTC Chip |
| Encapsulation: | Epoxy Resin | Custom: | Available |
| High Light: | Enamelled Wire NTC Epoxy Thermistor,Epoxy Thermistor 2500K,4500K ntc temp probe |
||

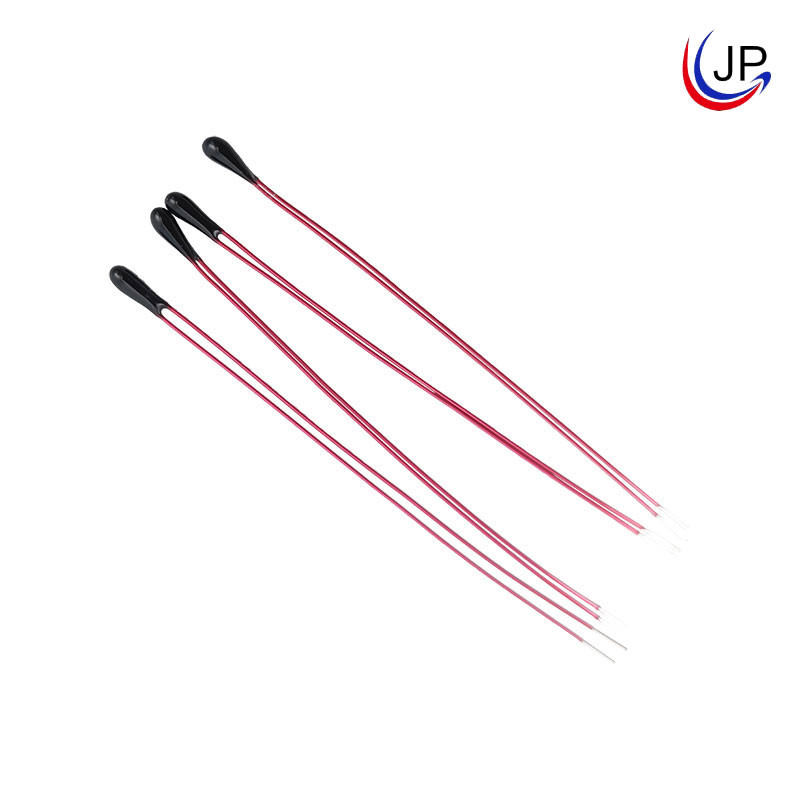

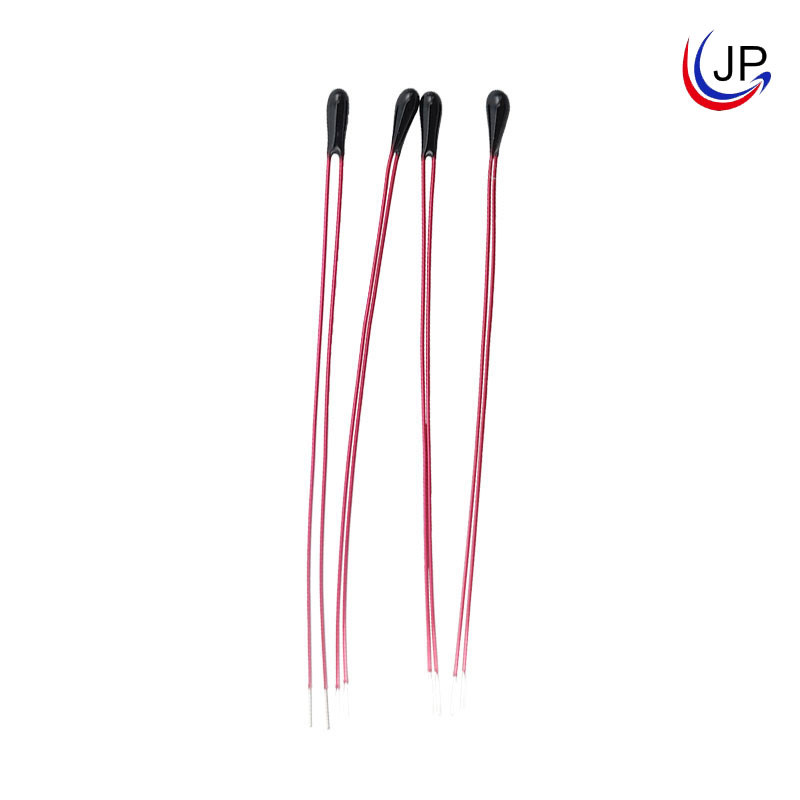

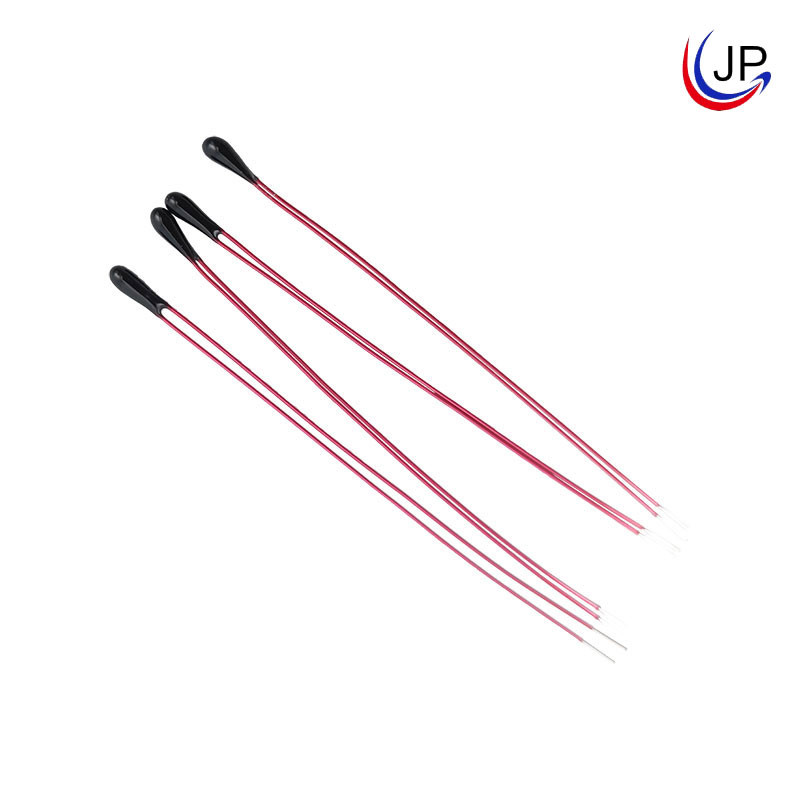

Enamelled Wire NTC Epoxy Thermistor 2500K To 4500K
Product Description:
Enamelled wire epoxy resin NTC thermistor, its lead is enamelled wire, the diameter of the lead is φ0.3mm, φ0.16mm. The optional resistance value range is from 0.3kΩ to 2000kΩ, and the beta value range is from 2500K to 4500K.
Features:
Comply with RoHS standard
miniature designed
good interchangeable
Operating temperature range: -40℃~125℃
Low-cost, solid-state temperature sensor
Suitable for temperature measurement, control and compensation
The size of epoxy coating is small
Lead wire is insulated
Application:
• home appliances such as refrigerator, dryer, HVAC, etc
• Automotive parts
• Medical equipment
Structure and Dimensions:(unit: mm)
Electrical Specification:
| Rec. at 25℃(kΩ) | Beta value | (In air) Pmax(mW) | δ(mW/℃) | Thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | Approx.60 | Max.3.0 | Max.20 | -40℃~125℃ | 8~100 |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |
