| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | ISO13485, ISO9001, RoHS |
| Model Number: | MF5A-1/2/3/4/5 |
| Minimum Order Quantity: | 500 Pieces |
| Price: | To be negotiated |
| Packaging Details: | Standard Package |
| Delivery Time: | 1-2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Resistance Value: | Custom | Disspation Constant(mW/ºC): | 2.1 |
|---|---|---|---|
| Operating Temperature Range: | -40 ~ +150 ºC | Thermal Time Constant (S): | 10 |
| B25/50 (K): | 2500 ~ 5000 | Shipping: | Sea Freight, Express, Air Freight |
| Wire: | 28-32 AWG Wire And PVC, , Or Enamel Insulation | Encapsulation: | Epoxy Resin |
| High Light: | Epoxy Resin Ntc 10k Temperature Sensor,NTC 10k Thermistor Temperature Sensor,50K NTC Thermistor Temperature Sensor |
||
1K 2K 3K 5K 10K 30K 40K 47K 50K NTC Thermistor Temperature Sensor
Product Description:

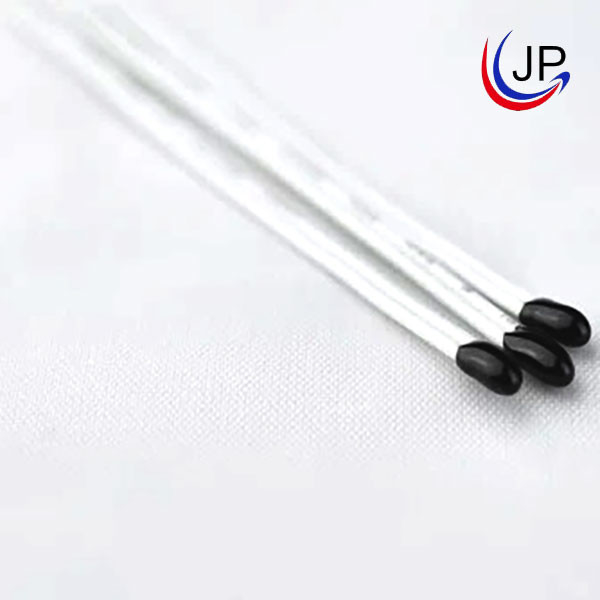

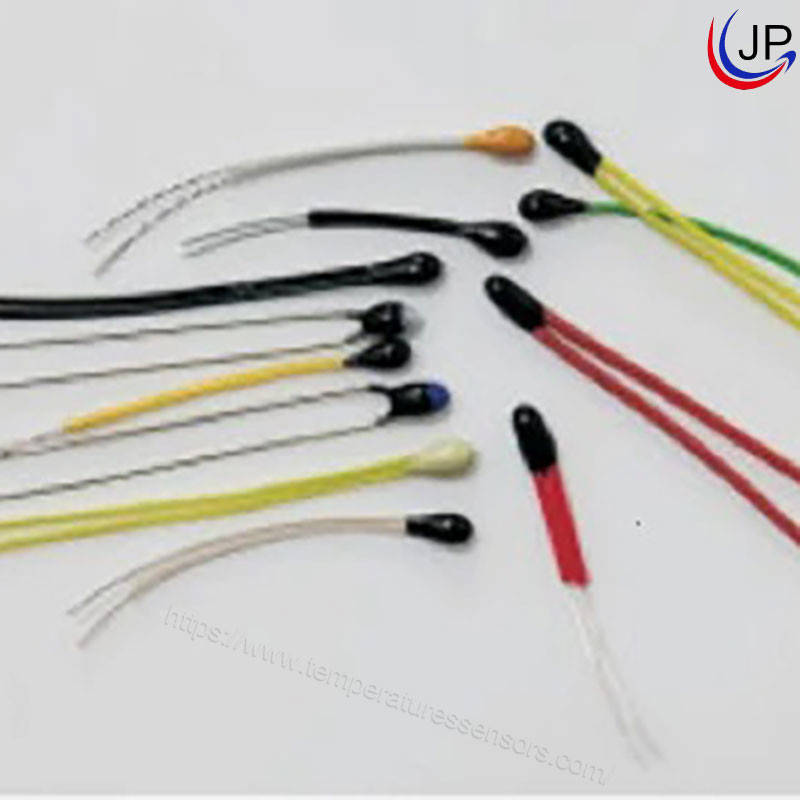

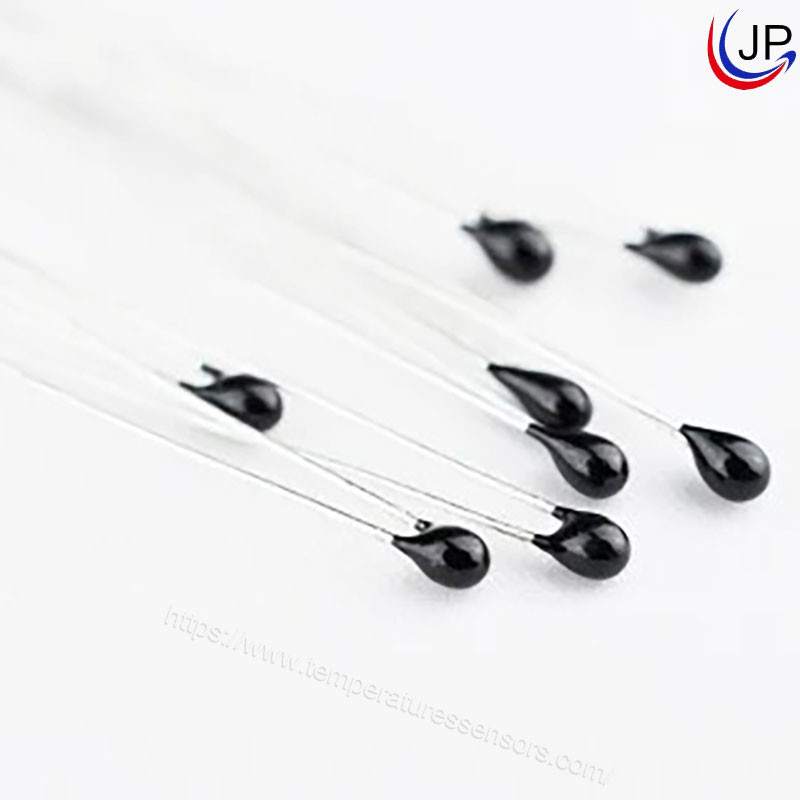

1k 2k 3k 5k 10k 30k 40k 47k 50k 60k 230k 470k NTC Thermistor is composed of NTC element, epoxy resin, and lead wire. Wire material is changeable according to requirements. The wire will be 28-32 AWG wire and PVC, , or enamel insulation.
Features:
Epoxy-encapsulated, miniature designed, high precision, quick response, and good stability
1k 2k 3k 5k 10k 30k 40k 47k 50k 60k 230k 470k NTC Thermistor
Technical Specification:
| R25ºC(kΩ) | B25/50 (K) | Disspation constant(mW/ºC) | Thermal time constant (S) | Operating temperature (ºC) |
| 1kΩ~3MΩ | 2500 ~ 5000 | 2.1 | 10 | -40 ~ +150 |
Application:
Temperature control and examination of household electrical appliances (such as air-conditioning, microwave oven induction cooker, toaster fanner, electric heating, and so on )
Temperature examination and compensation of the automatic work facilities (such as copycat, printer, and so on )
The battery of mobile telephone, battery pack
Temperature compensation of loops of instrument integrate circuit, quartz crystal modifier, and thermocouple
Structure and Dimension (Unit: mm):
FAQ:
1. What is your MOQ?
Different type of our product has different MOQs, but we will provide you with the best MOQ according to your specific order.
2. Could you please send me free samples?
Of course, samples are available and free except for the express fee. Express like DHL, FedEx, SF express, UPS, EMS, etc are available. You can provide your express account or ask your courier to pick up the product you ordered.
3. What is your delivery time?
The delivery time is about 2-7days after receipt of payment. (Different types of products have different crafts, the exact time shall be consulted in advance.)
4. What is the payment method?
T/T, L/C, Western Union.
5. Can you accept OEM&ODM orders?
OEM/ODM is available from us. We accept all types of OEM&ODM orders and cooperations.
